View larger image
Max Pull/Thrust Force：320kN
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

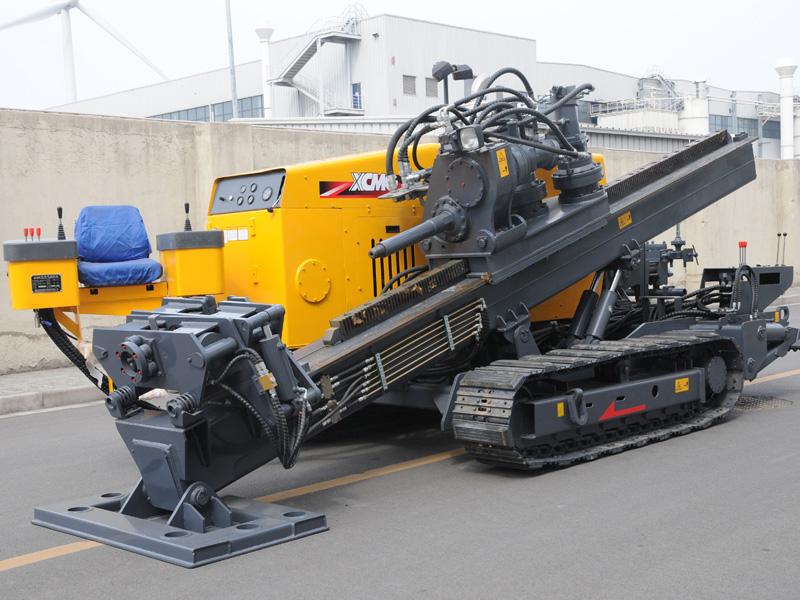

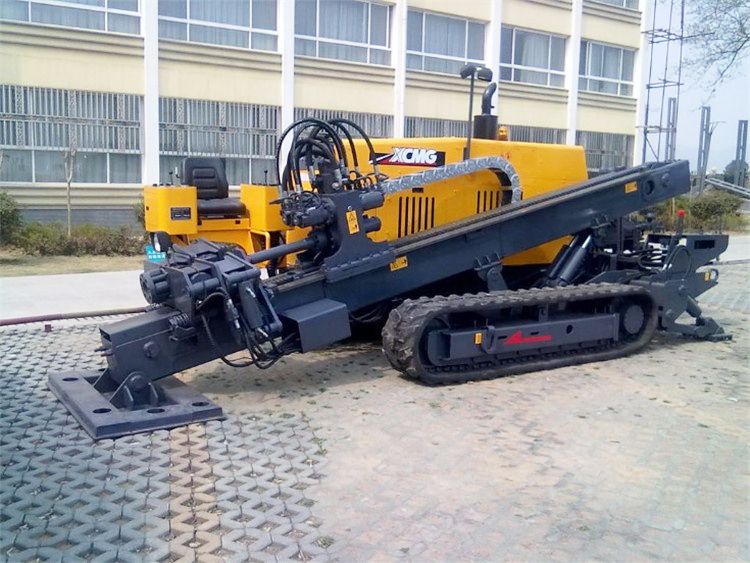

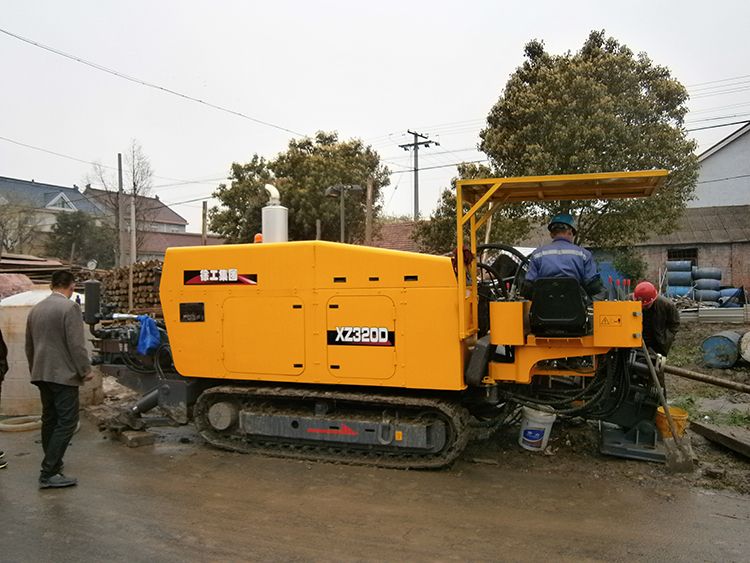

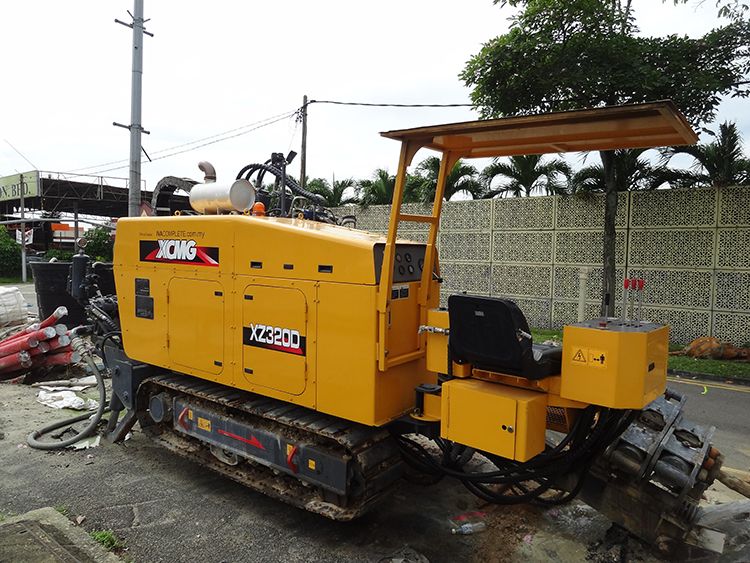

XCMG XZ320D Horizontal Directional Drilling Rig
XCMG XZ320D HDD structure compact, high performance, full-featured, hydraulic pilot control, sliding rack and pinion, the main performance parameters and control technology has reached the international advanced level. Hydraulic systems, power systems, running system, and the main components are made of domestic first-class brand products, good performance, good reliability.
Parameter
| Engine | |
| Model | Cummins QSB5.9-C210 |
| Power rating | 154/2200kW/r/min |
| Thruet-Pull | |
| Max pull/thrust force | 320kN |
| Max pull/thrust speeed | 22m/min |
| Rotation | |
| Torque | 12000N·m |
| Max spindle speed | 140r/min |
| Mud pump | |
| Max fiow rate | 320L/min |
| Max pressure | 8MPa |
| Pipe | |
| Diameter×Length | φ73×3mm×m |
| Loader Crane | |
| Lifting weight | / |
| Loading capacity | / |
| Max inclination angle | 20° |
| Max backreamer diameter | φ800mm |
| Weight | 10t |
| Diamension（L×W×H） | 6500×2250×2450mm |
| Power Station dimension | / |
| Power Station weight | / |
