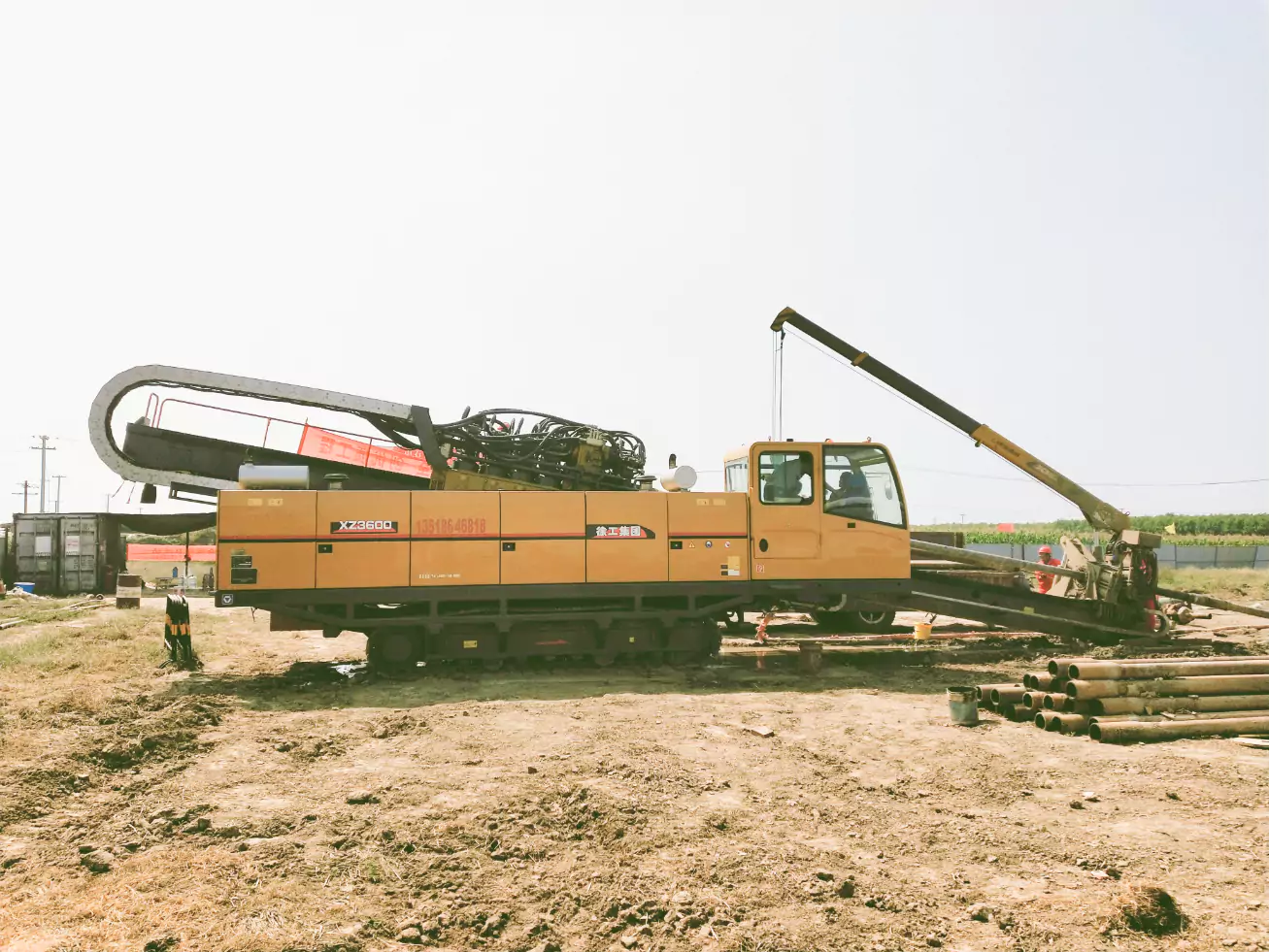

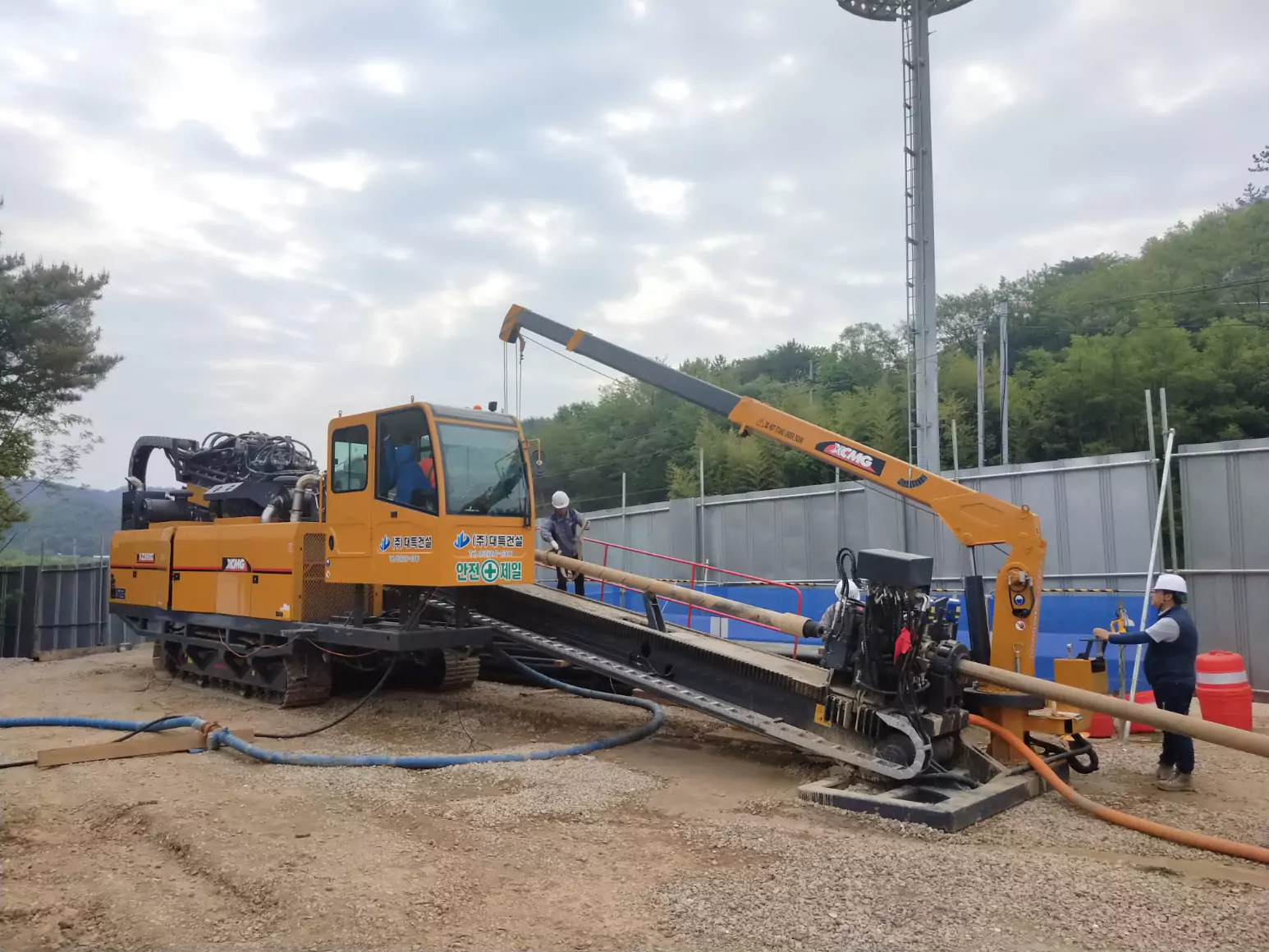

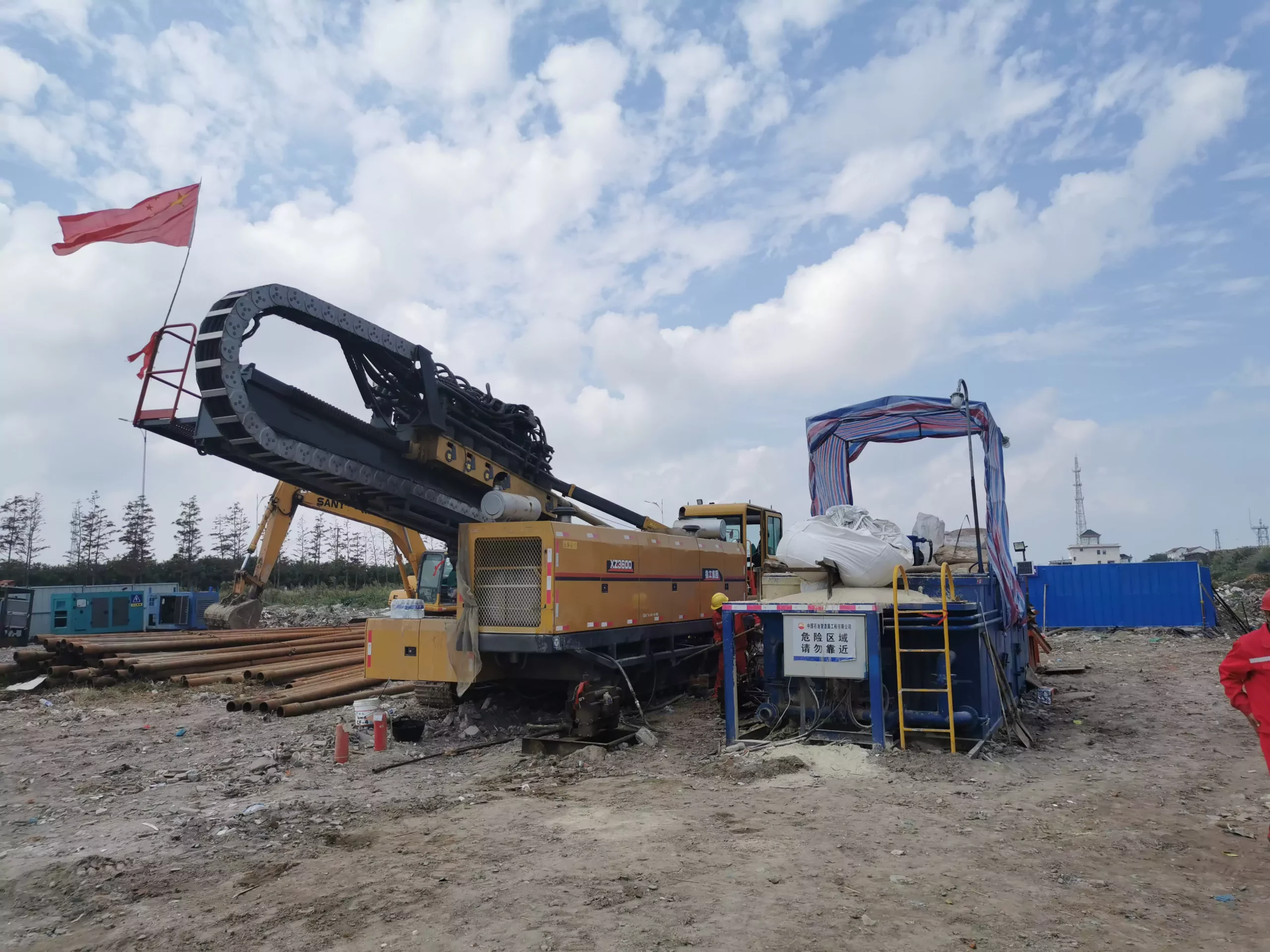

XCMG XZ3600 Horizontal Directional Drilling Rig

The XCMG XZ3600 Horizontal Directional Drilling Rig is a cutting-edge machine designed for efficient underground installation of pipes, cables, and other utilities in various applications, including urban construction, telecommunications, and water supply systems. With a focus on performance, reliability, and user-friendliness, the XZ3600 is equipped with advanced technology to ensure precise drilling operations.

Key Specifications:

1. Maximum Thrust Force: The rig boasts a maximum thrust force of 360 kN, enabling it to handle tough soil conditions and effectively install large-diameter pipes.
2. Maximum Pullback Force: With a pullback force of 360 kN, the XZ3600 ensures efficient retrieval of drilling tools and materials, streamlining the installation process.
3. Drilling Depth: The rig can achieve a maximum drilling depth of 1,200 meters, making it suitable for a wide range of projects, from shallow installations to deep utility placements.
4. Drilling Diameter: The XZ3600 accommodates a drilling diameter range of 100 mm to 1,200 mm, providing versatility for different project requirements.
5. Engine Power: Powered by a robust diesel engine, the rig delivers an output of 190 kW, ensuring consistent performance during extended operations.
6. Hydraulic System: The advanced hydraulic system enhances operational efficiency, providing smooth and precise control over drilling parameters.
