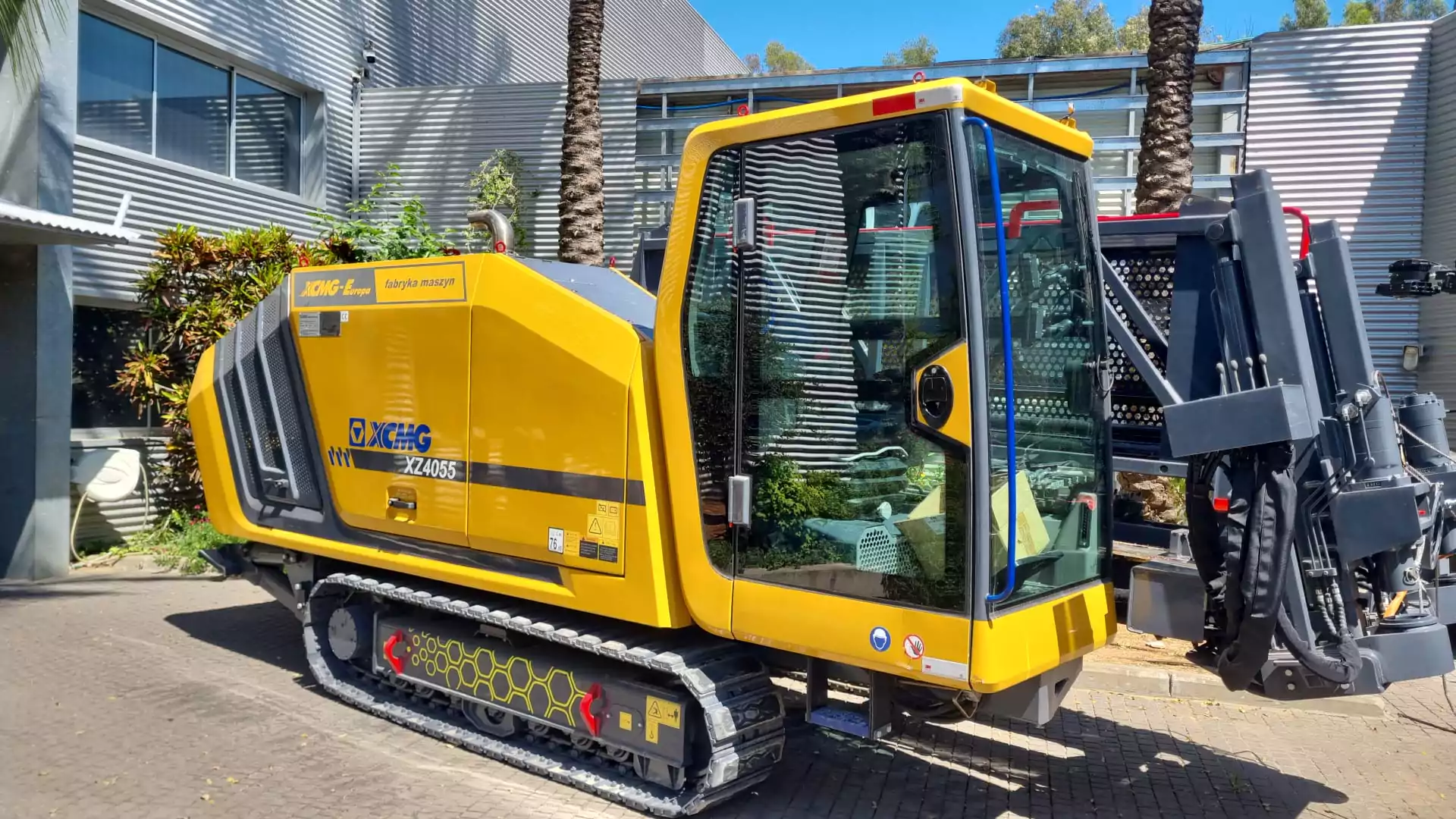

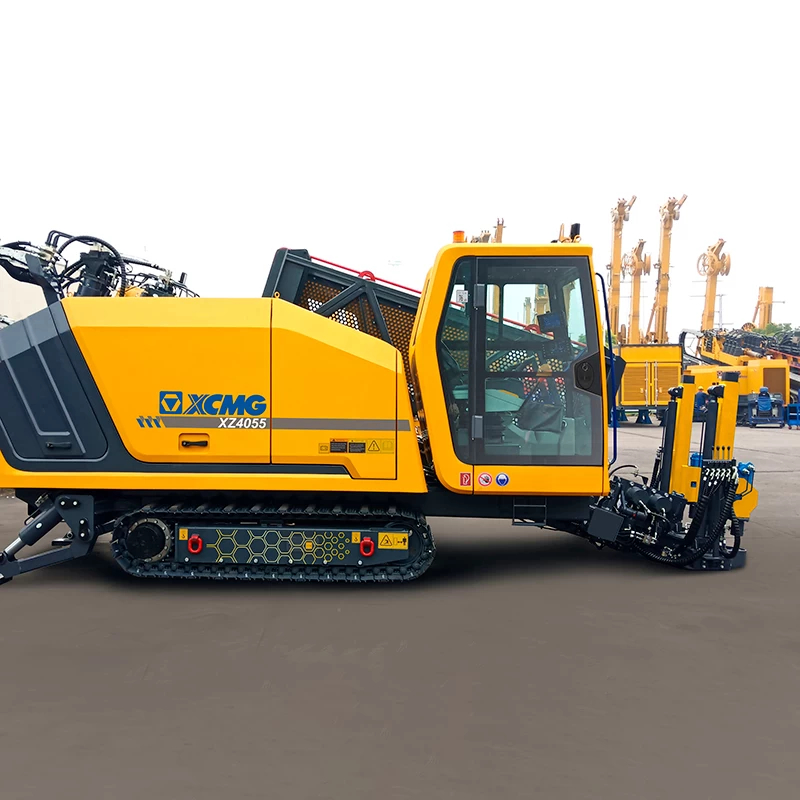

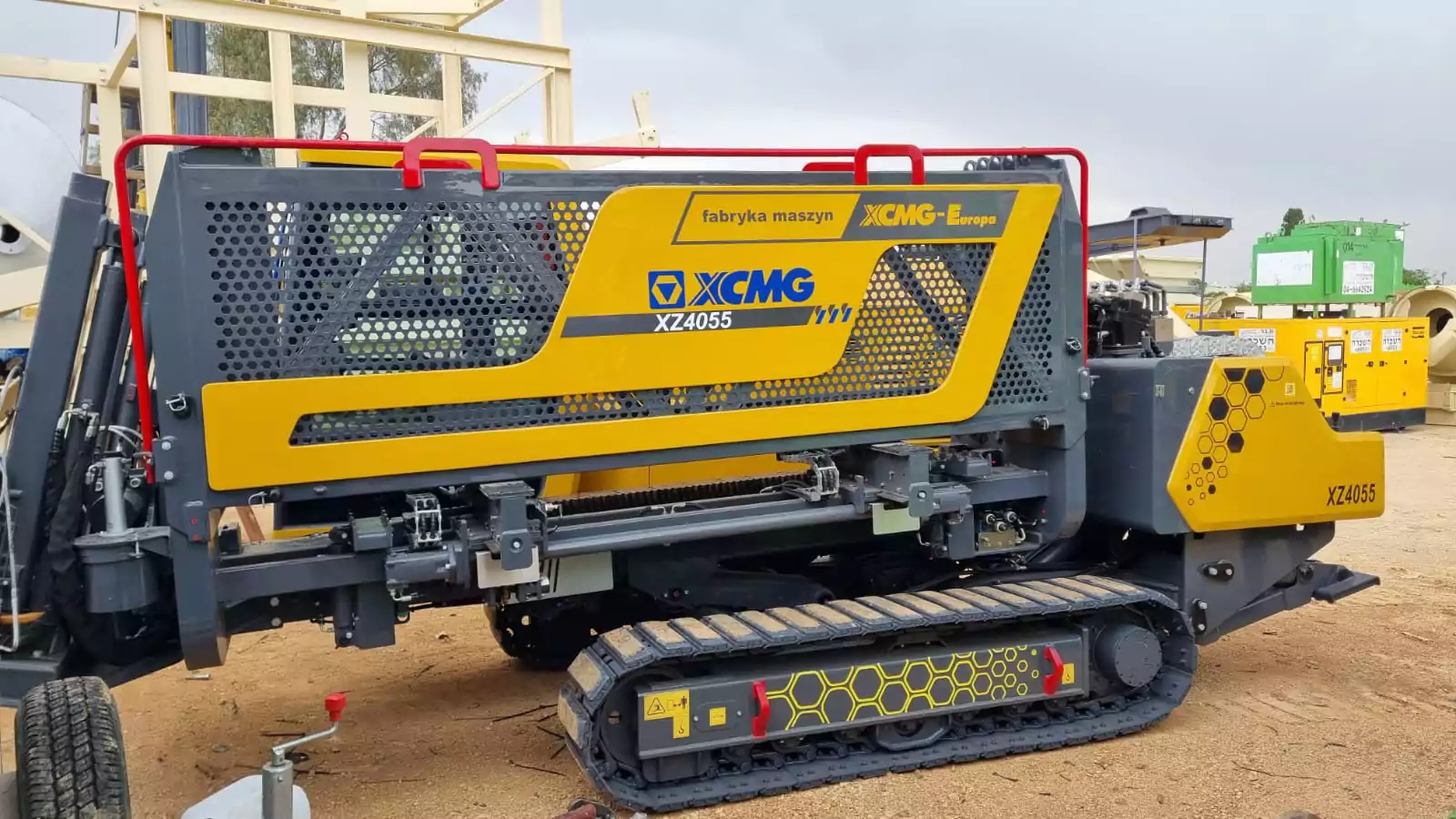

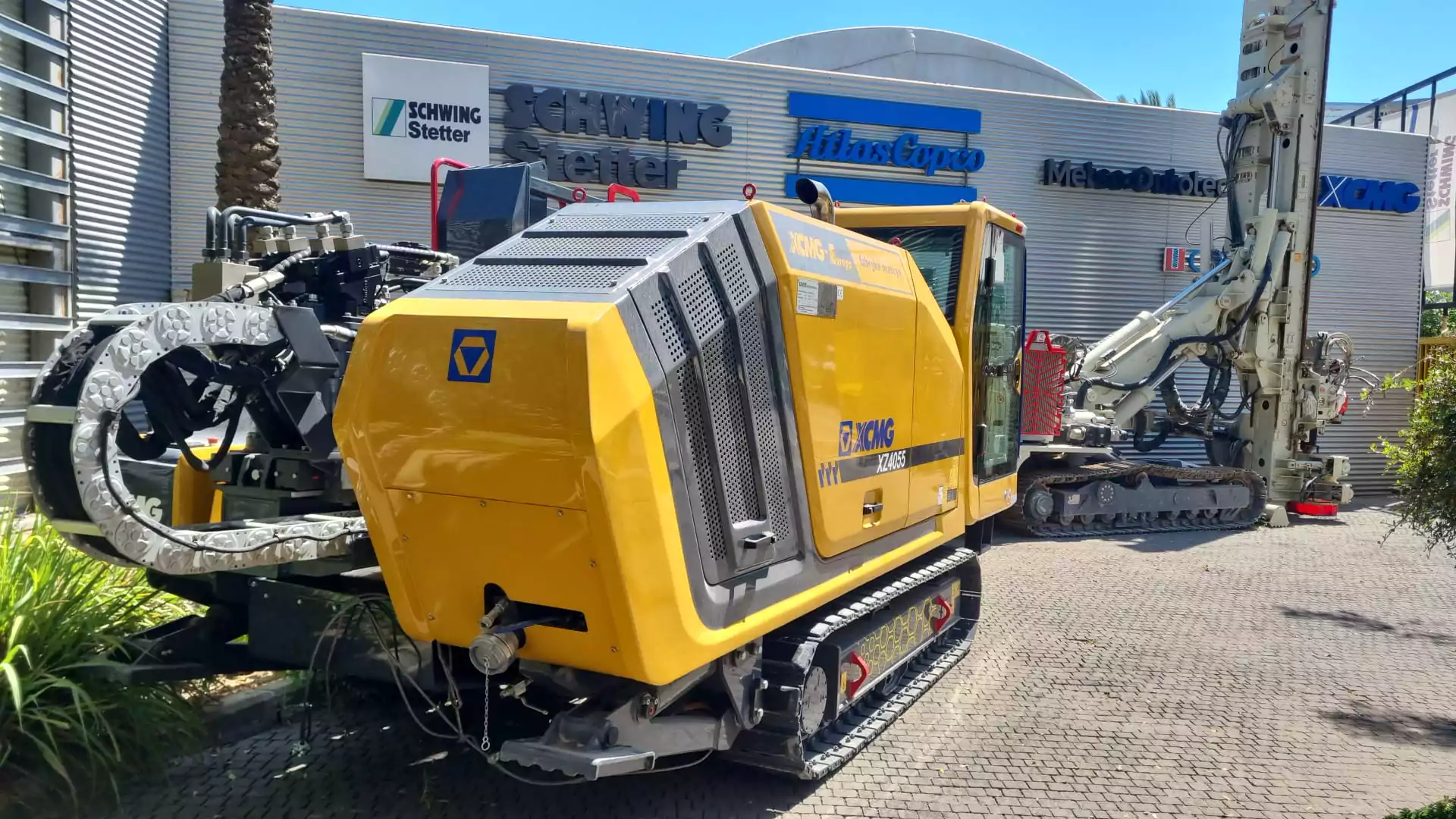

XCMG XZ4055 Horizontal Directional Drilling Rig
XCMG XZ4055 Horizontal Directional Drilling Rig-2
XCMG XZ4055 Horizontal Directional Drilling Rig-1
XCMG XZ4055 Horizontal Directional Drilling Rig-3
XCMG XZ4055
XCMG XZ4055 Horizontal Directional Drilling Rig
VS


Engine Model:/
Power Rating: 115kW
Max Pull/Thrust Force:200kN

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG XZ4055 Horizontal Directional Drilling Rig


The XCMG XZ4055 horizontal directional drill rig is a highly advanced piece of equipment designed for efficient and precise underground installation of utilities such as pipelines and cables. The rig is particularly suitable for urban infrastructure projects, telecommunications and water supply systems, which require precision and minimal ground disruption.

Main specifications:

Maximum thrust: The XZ4055 offers an impressive maximum thrust of 200 kN, enabling it to penetrate tough soil conditions and install large diameter pipes with ease.

Maximum pull-back force: The rig’s maximum pull-back force of 200 kN ensures efficient recovery of drilling tools and materials, simplifying the entire installation process.

Drilling depth: With a maximum drilling depth of up to 1,500 meters, the rig is suitable for both shallow and deep utility installations, enhancing its versatility in a variety of applications.

Borehole diameter: The XZ4055 can accommodate a range of borehole diameters from 100 mm to 1,500 mm, providing flexibility to meet different project requirements and pipe sizes.

Engine Power: The XZ4055 is powered by a powerful diesel engine with an output of 115 kW, ensuring consistent performance and reliability over long periods of operation.

Hydraulic System: The advanced hydraulic system improves operating efficiency, providing smooth and precise control of drilling parameters for increased accuracy and reduced component wear.

Weight: Weighing approximately 42 tonnes, the XZ4055 provides a stable platform for drilling operations, enabling it to effectively handle a variety of ground conditions.

Parameter

Model/
Power rating115kW
Max pull/thrust force200kN
Max pull/thrust speeed/
Torque7500N·m
Max spindle speed/
Max flow rate/
Max pressure/
Diameter×Length/
Lifting weight/
Loading capacity/
Max inclination angle/
Max backreamer diameter/
Weight10.3t
Diamension(L×W×H)6400×2240×2600mm
Power Station dimension/
Power Station weight/
