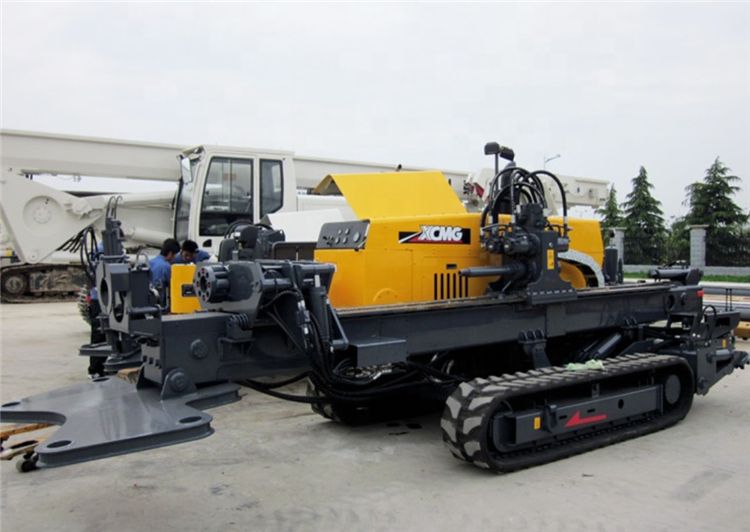

XZ420E-3

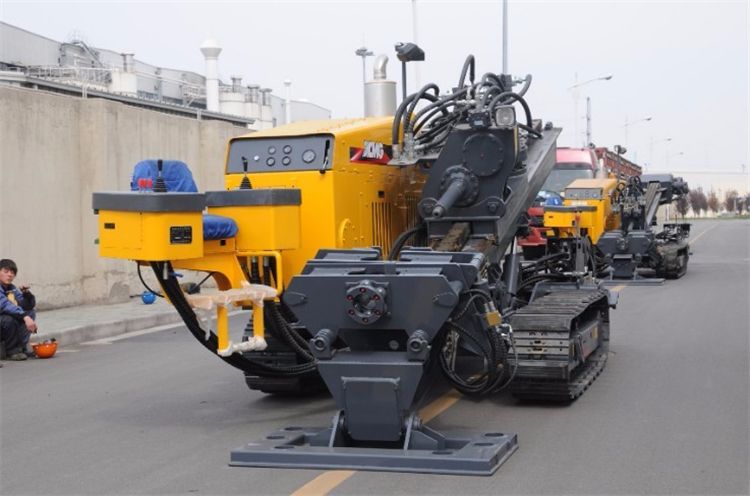

XZ420E-4

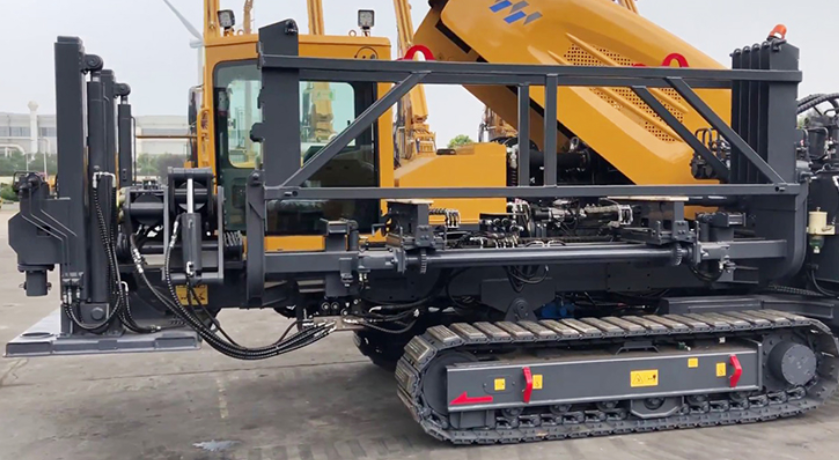

XZ320E-2

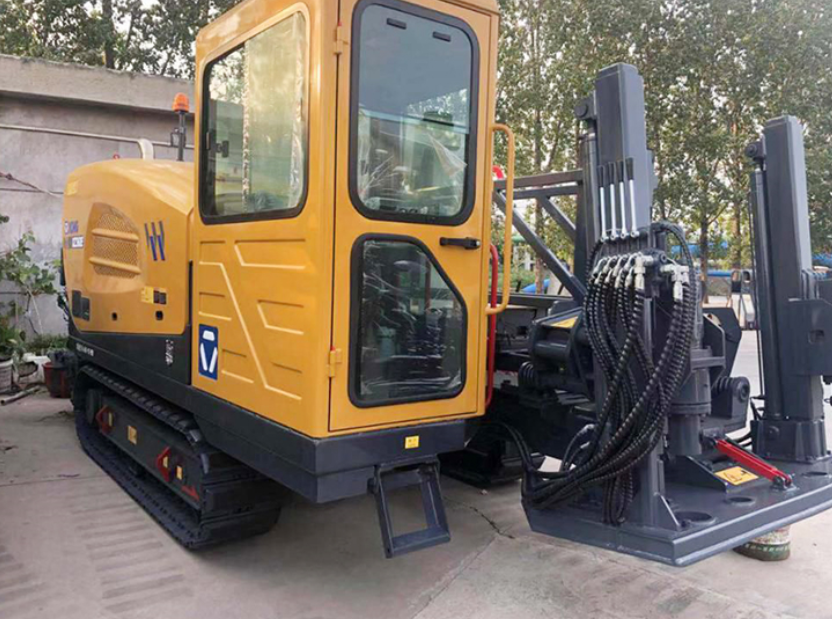

XZ320E-3

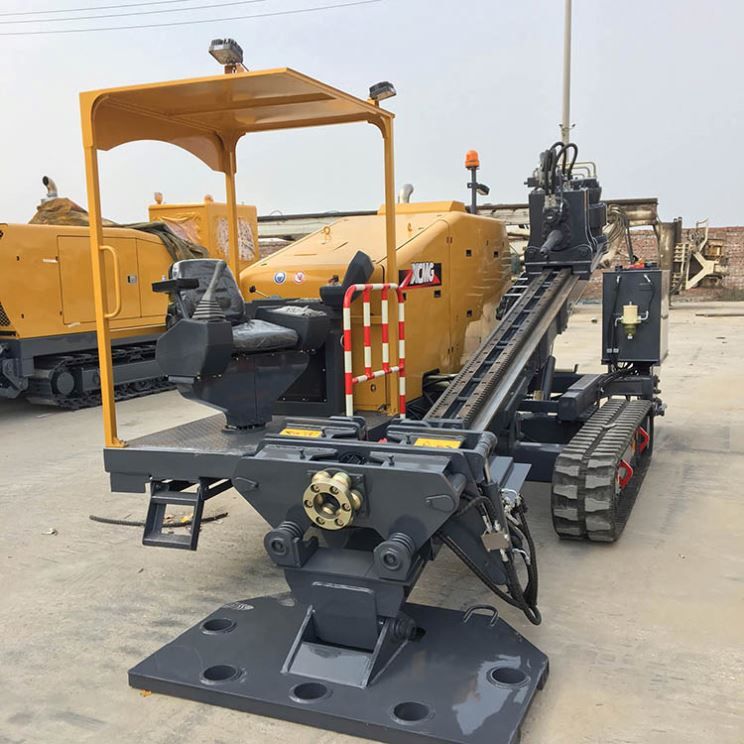

XZ200_5
XCMG XZ430E Horizontal Directional Drilling Rig
VS


Engine Model:Cummins QSC8.3-C240
Power Rating: 179/2200kW/r/min
Max Pull/Thrust Force:430/520kN

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

XCMG XZ430E Horizontal Directional Drilling Rig


XCMG XZ430E HDD horizontal directional drilling machine completed by rack and pinion sliding action, floating carriage device can effectively protect the drill thread, variable-speed motor to achieve sliding, the service life of the drill pipe 30% increase; piston motor to achieve high and low sliding speed of carriage, increasing the ability to adapt the machine working conditions, promote construction efficiency.

Parameter

Engine
ModelCummins QSC8.3-C240
Power rating179/2200kW/r/min
Thruet-Pull
Max pull/thrust force430/520kN
Max pull/thrust speeed48m/min
Rotation
Torque18500N·m
Max spindle speed170r/min
Mud pump
Max fiow rate450L/min
Max pressure8MPa
Pipe
Diameter×Lengthφ83×3mm×m
Loader Crane
Lifting weight/
Loading capacity/
Max inclination angle/
Max backreamer diameter/
Weight12t
Diamension(L×W×H)/
Power Station dimension/
Power Station weight/
