Model：XZJ5090JGK
L*W*H：8865*2200*3250
Model of chassis: EQ5090GJ12D6
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

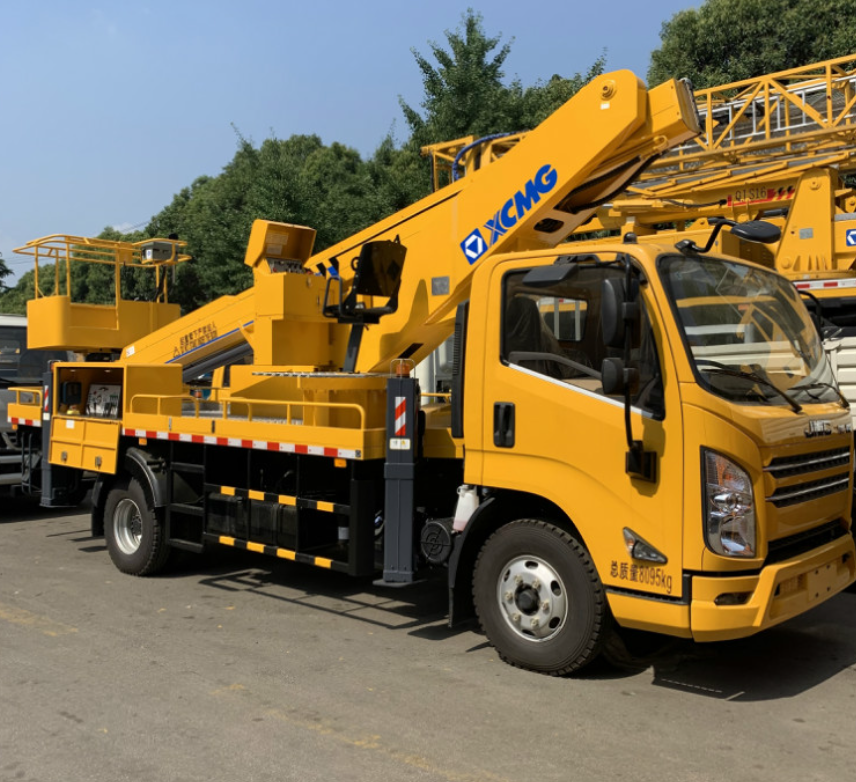

XCMG XZJ5090JGK Articulating Boom Aerial Device
XCM-G articulated boom truck is a special vehicle, which supply work platform for person while working, it can be equipped with bridge detector, used for mobile inspection and maintenance work. Bridge inspection truck can be divided into bucket type.

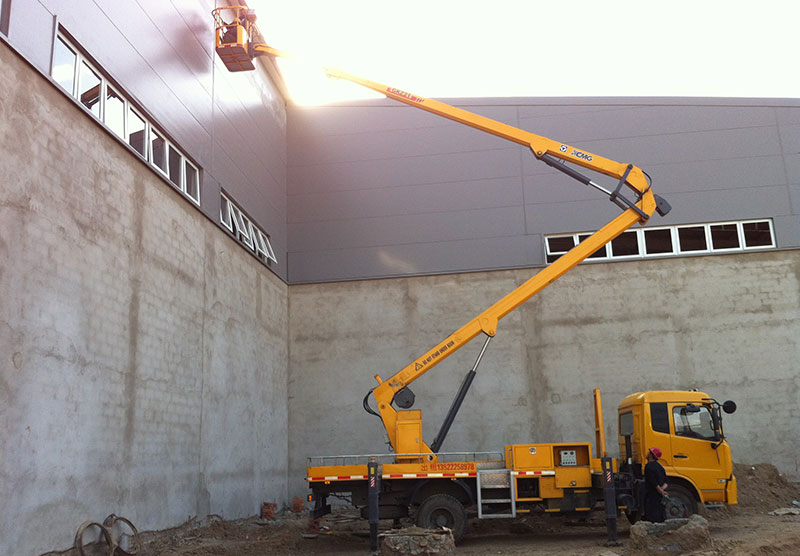

Bucket type articulated boom, with compact structure, work is flexible, almost is not subject to the limit of bridge structure, it not only an inspect under bridge but also can inspect the upper structure outside the bridge, sometimes it can be used as an Aerial work platform.
XCM-G basket lift trucks is equipped with hoisting system, it can meet the needs of small tonnage lifting operations with multiple functions.V type front leg structure and anti-overturning system improved the stability and safety of the full range operation.
A wide range of optional mataching chassis is offered, such as JMC, QINGLING, IVECO, CAPTAIN.
Parameter
| Model | XZJ5090JGK |
| L*W*H | 8865*2200*3250mm |
| Model of chassis | EQ5090GJ12D6 |
| Model of engine | CY4102-C3B |
| Power | 100kw |
| Number of passengers | 3 |
| Max.working height | 21.5m |
| Max.working radius | / |
| Rated load | 200Kg |
| Slewing angle | ±360° |
