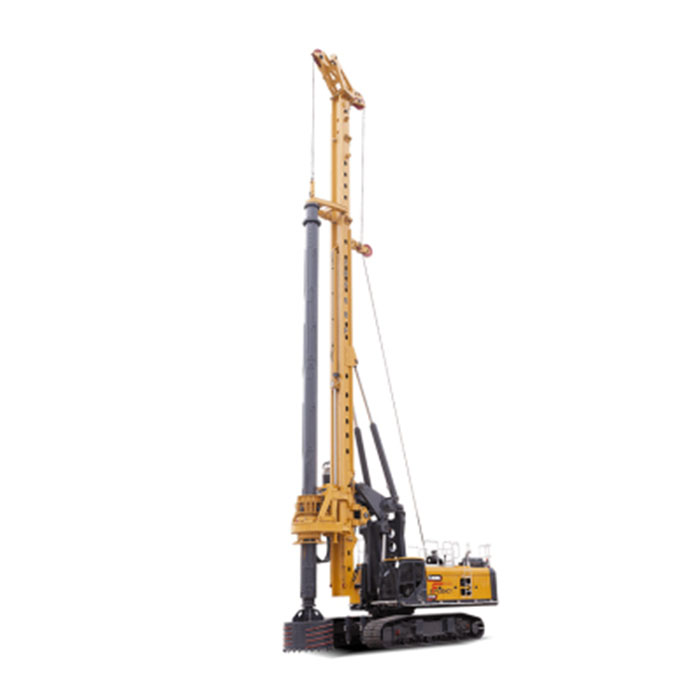

XGMA XGR220 Rotary Drilling Rig

Operating weight：74t

Rated Power：242kW

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

XGMA XGR220 Rotary Drilling Rig

Fully hydraulic and electronically controlled, high efficiency, environmentally friendly, heavy-duty, high stability and cost-effective.

Parameter

--Engine
Engine Model	Cummins QSL9
Rated Power	242kW
--Rotary Drive
Max.output torque	230kN.m
Rotary Speed	/
Max.Drilling Diameter	/
Max.Drilling Depth	/
--Crowd cylinder
Max.pull-down piston push	180kN
Max.pull-down piston pull	220kN
Max.pull-down piston stroke	/
--Crowd Winch
Max.pull-down piston push	/
Max.pull-down piston pull	70m/min
Max.pull-down piston stroke	/
--Main Winch
Max.pulling force	220kN
Max.line speed	/
--Auxiliary Winch
Max.pulling force	/
Max.line speed	/
Mast Rake（Slide/forwards/backwards）	/
--Undercarrige
Max.traveling speed	/
Max.grade ability	/
Min.clearance	/
Track shoe width	/
Distance between tracks	/
--Hydraulic system
Working pressure	/
Overall Drilling Weight	74t
--Dimension
Working condition	10500×4400×21660mm
Transporation condition	16000×3450×3400mm
