Min. Turning Radius：1850-2385 mm
Max. Lifting Speed(loaded/empty)：280/320 mm/s
Max. Lifting Height：7000 mm
Rated Capacity：1500-3500 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

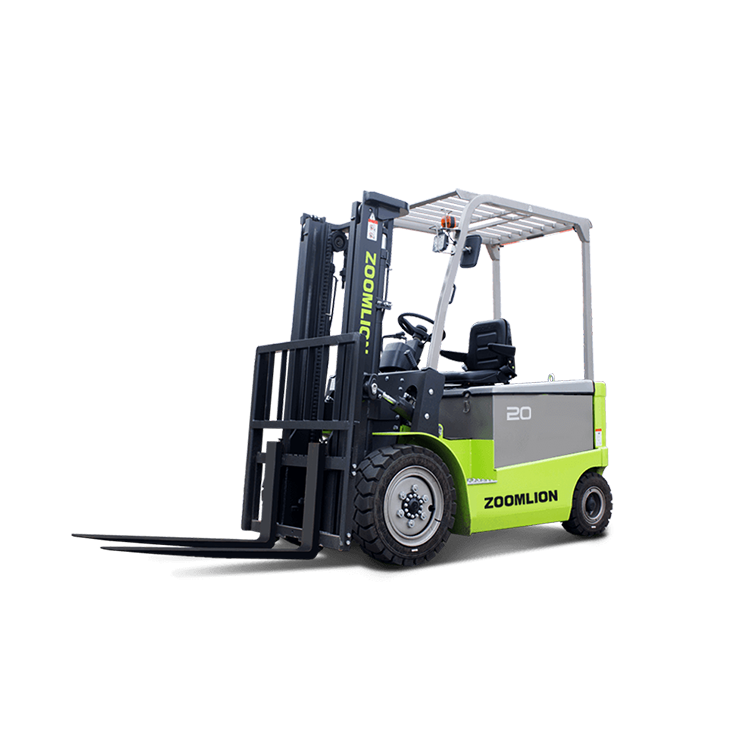

ZOOMLION FB20Z Electric Forklift
Alternate walking motor and lifting motor with automatic protection and free maintenance.
Curtis LED screen with settings of walking and lifting performance; it can monitor the running of motor, thus get working hours and fault code.
Maintenance free AC motor and Curtis controller are used to ensure smooth operation.
Optional lithium iron phosphate battery, maintenance free, zero pollution, fully charged within 2 hours, warranty period of 5 years/10,000H.
The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.
Parameter
| Rated capacity | 2000Kg |
| Load centre | 500mm |
| Lifting height | 3000mm |
| Free lifting height | 145mm |
| Tilting angle | 6°/12° |
| Turning radius | 2090mm |
| Front overhang | 475mm |
| Tread | 454mm |
| Wheelbase | 1450m |
| Fork spread(Min./Max.) | 920mm |
| Working aisle width with pallet(Ast) | 3885mm |
| Service weight | - |
| Operating pressure for attachment | 117.3kg/c㎡ |
| Travel (Laden) | 13Km/h |
| Travel(Unladen) | 14Km/h |
| Lifting(Laden) | 0.28m/s |
| Lifting(Unladen) | 0.4m/s |
| Lowering (Laden) | 0.45m/s |
| Lowering(Unladen) | 0.4m/s |
| Laden | 0.15 |
| Unladen | 0.15 |
| Driven motor | 11kW |
| Pump motor | 14kW |
| Battery | 48V/630Ah |
| Controller | AC |
| Rear Wheel | 18*7-8-14PR |
| Front Wheel | 7.00-12-12PR |
| Overall Dimension(L×H×W) | 3279mm×1995mm×1150mm |
| Weight | 3950kg |
