Min. Turning Radius：2060 mm
Max. Lifting Speed(loaded/empty)：460/500 mm/s
Max. Lifting Height：7000 mm
Rated Capacity：1500-1800 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

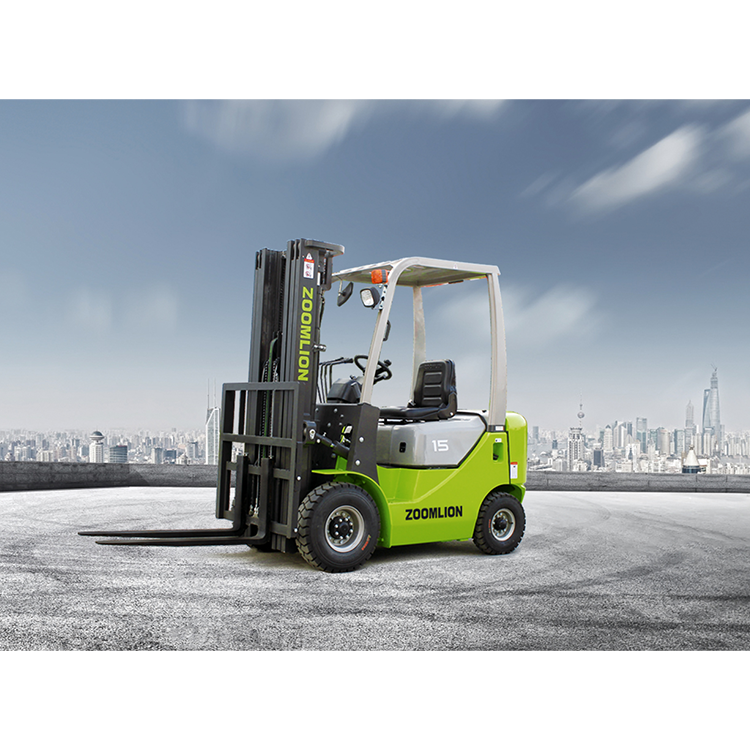

ZOOMLION FD18Z Interal Combustion Forklift
It can be equipped with Japanese engine, with strong power and low failure rate.
Spacious driving space. USB cigarette lighter and charging port are optional for outdoor operation.
Conical design is adopted for pipe joints to prevent oil leakage.
Reinforced mast with wide view design improves efficiency and safety;
Engine is with large torque and capacity, which is powerful and can meet different operation demands;
Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.
Parameter
| Rated capacity | 1800Kg |
| Load centre | 500mm |
| Lifting height | 3000mm |
| Free lifting height | 115mm |
| Tilting angle | 6°/12° |
| Turning radius | 2060mm |
| Front overhang | 400mm |
| Tread | 390mm |
| Wheelbase | 1400m |
| Fork spread(Min./Max.) | - |
| Working aisle width with pallet(Ast) | - |
| Service weight | - |
| Operating pressure for attachment | 17.5MPa |
| Travel (Laden) | 14.5Km/h |
| Travel(Unladen) | 15.5Km/h |
| Lifting(Laden) | 390mm/s |
| Lifting(Unladen) | 420mm/s |
| Lowering (Laden) | ＜600mm/s |
| Lowering(Unladen) | ≥300mm/s |
| Laden | 0.2 |
| Driven motor | - |
| Battery | 90Ah/12V |
| Rear Wheel | 6.5-10-10PR |
| Front Wheel | 5.00-8-10PR |
| Overall Dimension(L×H×W) | 2250×2040×1086 |
| Weight | 2900kg |
