Min. Turning Radius：2240-2445 mm
Max. Lifting Speed(loaded/empty)：470/520 mm/s
Max. Lifting Height：7000 mm
Rated Capacity：2000-3500 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

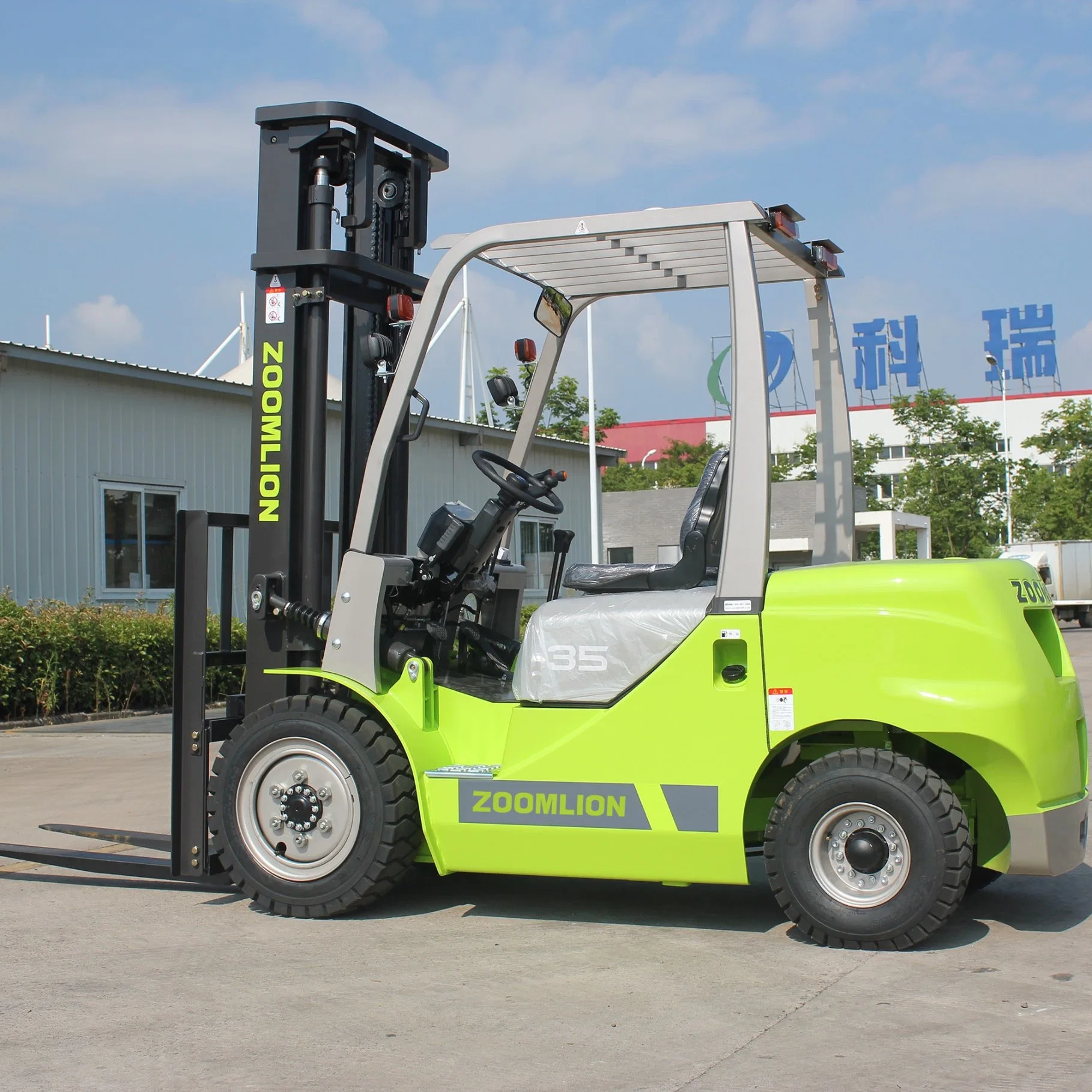

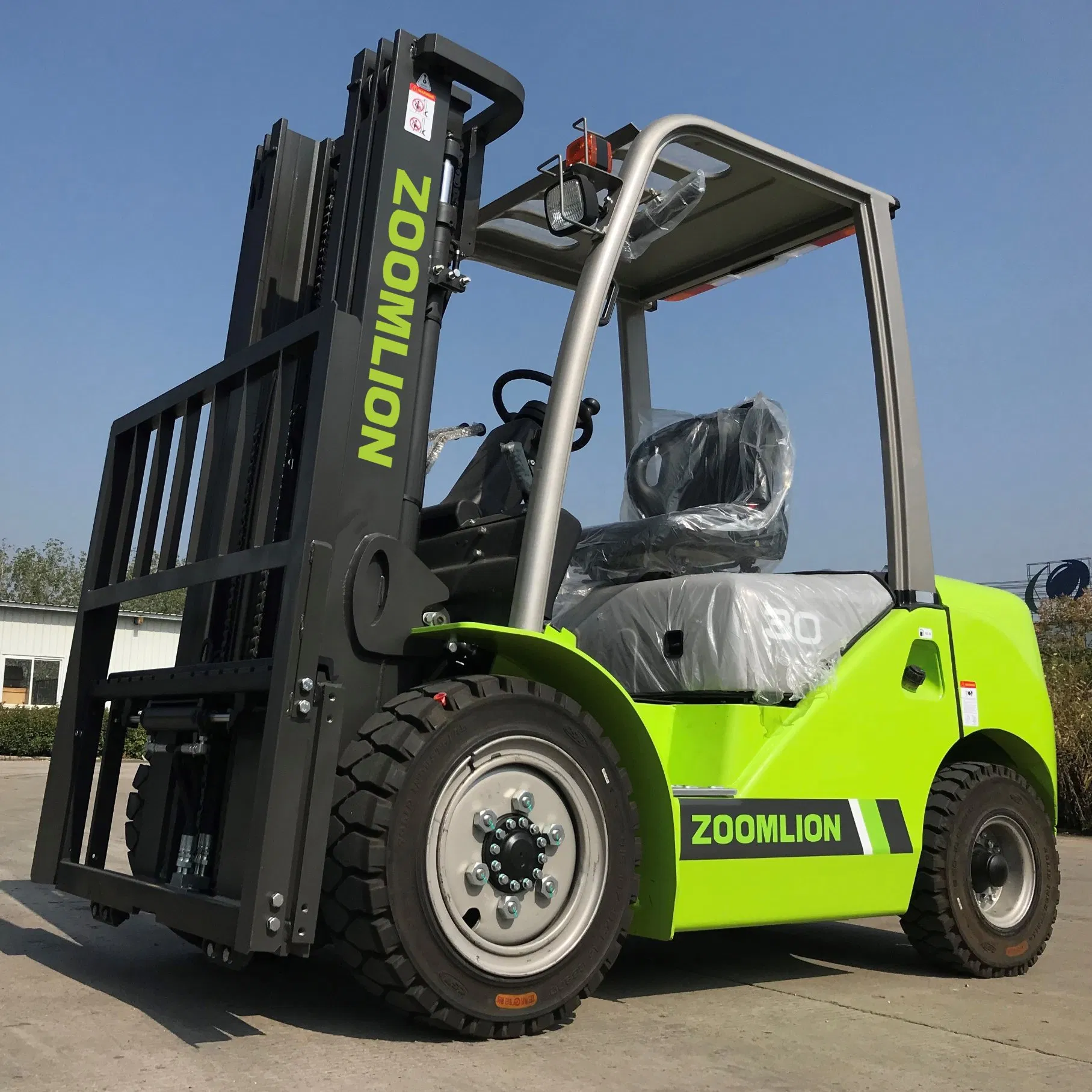

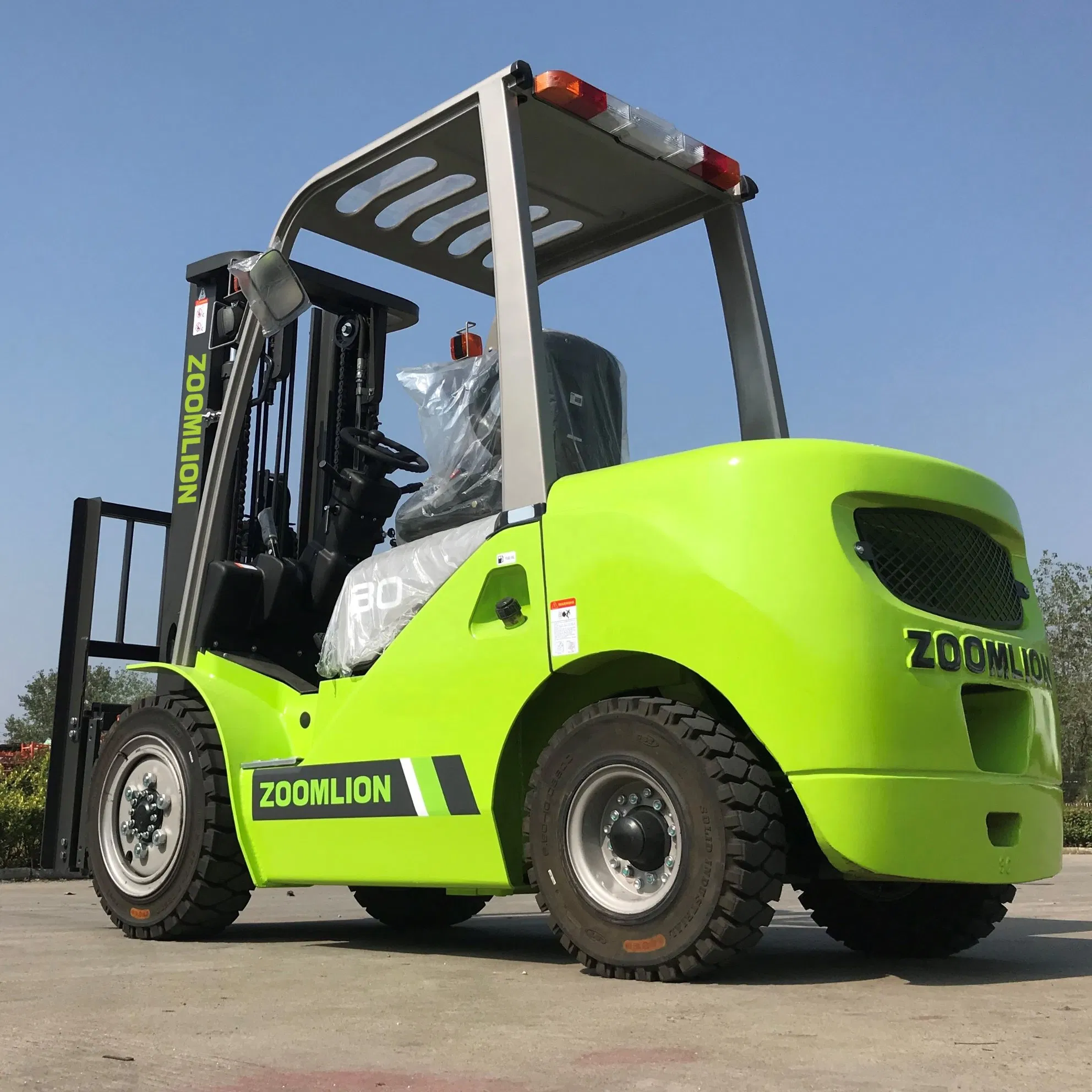

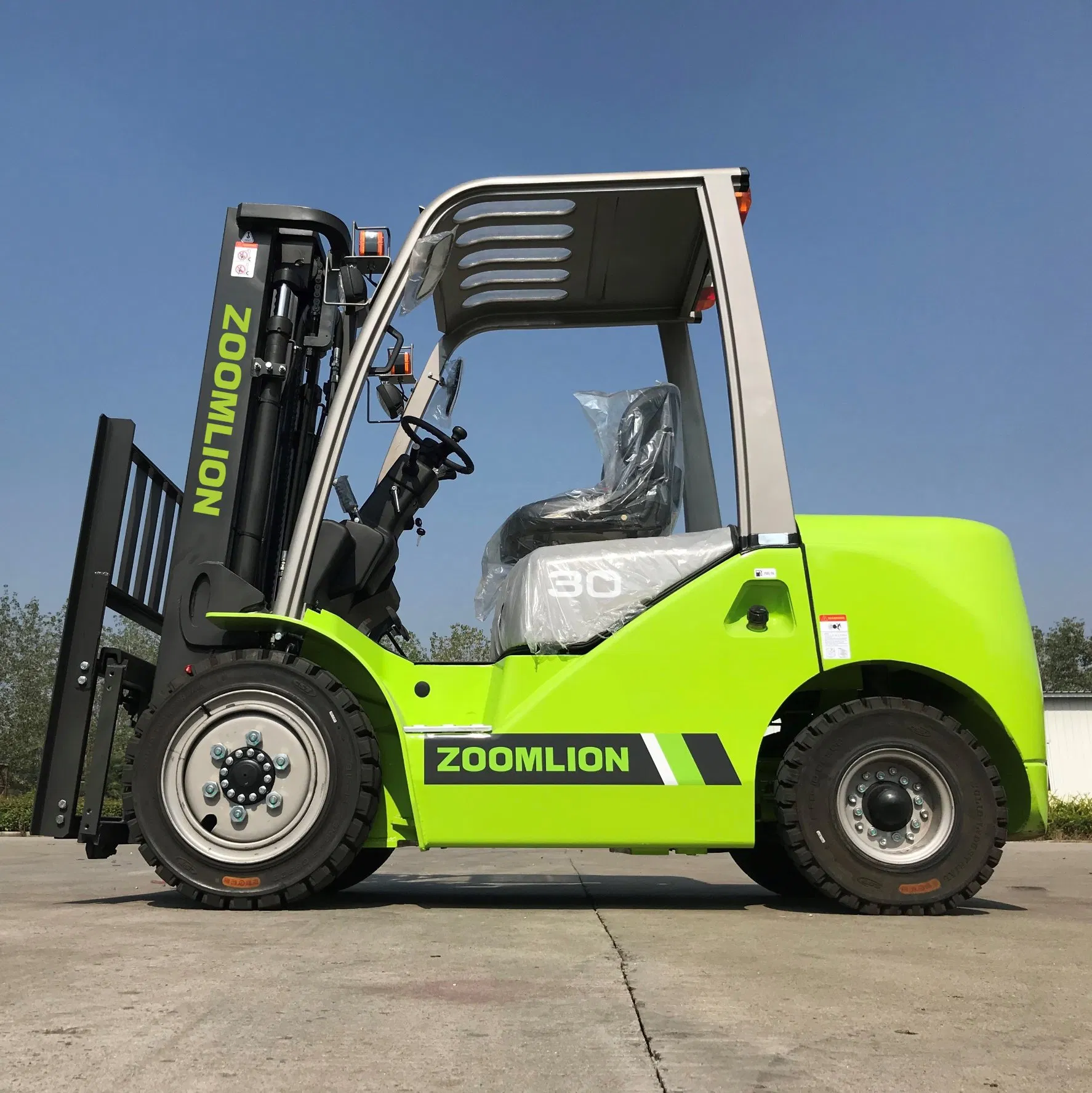

ZOOMLION FD35H Interal Combustion Forklift
Combine Isuzu C240/4JG2, Mitsubishi S4S diesel engine and Nissan K25 gasoline engine with automatic transmission design, operator has got a powertrain that delivers strong load handling and smooth acceleration.
LED Display offers useful information, such as the fuel meter, water temperature indicator and hour meters. USB charger and power outlet are special designed for the convenience of operator.
Japanese Kubota engine has passed EPA certification and is widely used in European and American markets.
Exquisite operating platform and integrated LED display can display all driving information and provide maximum comfort.
The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.
Parameter
| Rated capacity | 3500Kg |
| Load centre | 500mm |
| Lifting height | 3000mm |
| Free lifting height | 145mm |
| Tilting angle | 6°/12° |
| Turning radius | 2445mm |
| Front overhang | 488mm |
| Tread | 460mm |
| Wheelbase | 1700m |
| Fork spread(Min./Max.) | - |
| Working aisle width with pallet(Ast) | - |
| Service weight | - |
| Operating pressure for attachment | 17.5MPa |
| Travel (Laden) | 19Km/h |
| Travel(Unladen) | 20Km/h |
| Lifting(Laden) | 410mm/s |
| Lifting(Unladen) | 440mm/s |
| Lowering (Laden) | ＜600mm/s |
| Lowering(Unladen) | ≥300mm/s |
| Laden | 0.2 |
| Driven motor | - |
| Battery | 90Ah/12V |
| Rear Wheel | 28*9-15-12PR |
| Front Wheel | 6.50-10-10PR |
| Overall Dimension(L×H×W) | 2745×2090×1230 |
| Weight | 4800kg |
