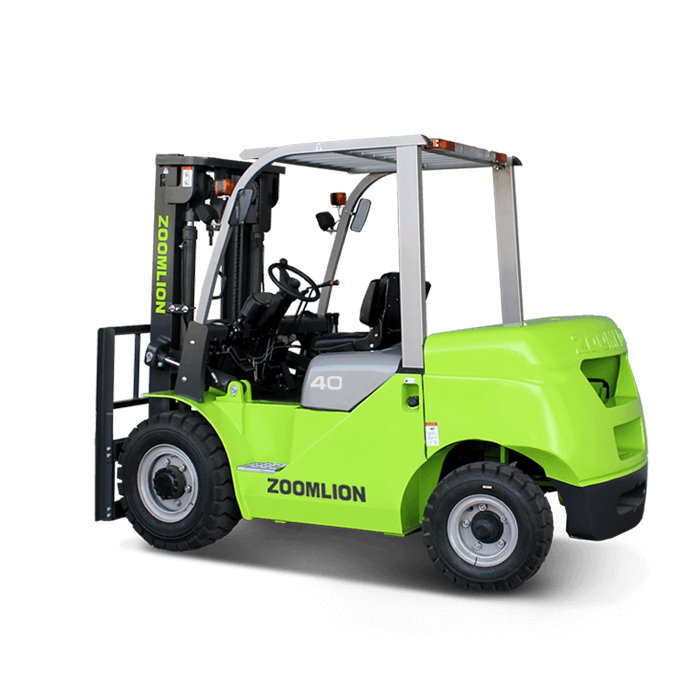

ZOOMLION FD40MINI Interal Combustion Forklift
VS


Min. Turning Radius:2240-2445 mm

Max. Lifting Speed(loaded/empty):470/520 mm/s

Max. Lifting Height:7000 mm

Rated Capacity:4000-5000 kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

ZOOMLION FD40MINI Interal Combustion Forklift


It can be equipped with Japanese engine, with strong power and low failure rate.

Spacious driving space. The mast is designed with large channel steel, with firm structure and strong bearing capacity. The front twin cylinder mast is optional for better visibility.

Conical design is adopted for pipe joints to prevent oil leakage.



Reinforced mast with wide view design improves efficiency and safety;

Engine is with large torque and capacity, which is powerful and can meet different operation demands;

Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;

Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable.

Parameter

Rated capacity4000Kg
Load centre500mm
Lifting height3000mm
Free lifting height85mm
Tilting angle6°/12°
Turning radius2700mm
Front overhang500mm
Tread490mm
Wheelbase1900m
Fork spread(Min./Max.)-
Working aisle width with pallet(Ast)-
Service weight-
Operating pressure for attachment17.5MPa
Travel (Laden)19Km/h
Travel(Unladen)20Km/h
Lifting(Laden)410mm/s
Lifting(Unladen)440mm/s
Lowering (Laden)<600mm/s
Lowering(Unladen)≥300mm/s
Laden0.2
Driven motor-
Battery90Ah/12V
Rear Wheel250-15-12PR
Front Wheel6.50-10-10PR
Overall Dimension(L×H×W)2930×2090×1410
Weight5300kg
