Min. Turning Radius：2600 mm
Max. Lifting Speed(loaded/empty)：401/433 mm/s
Max. Lifting Height：4240 mm
Rated Capacity：3500 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

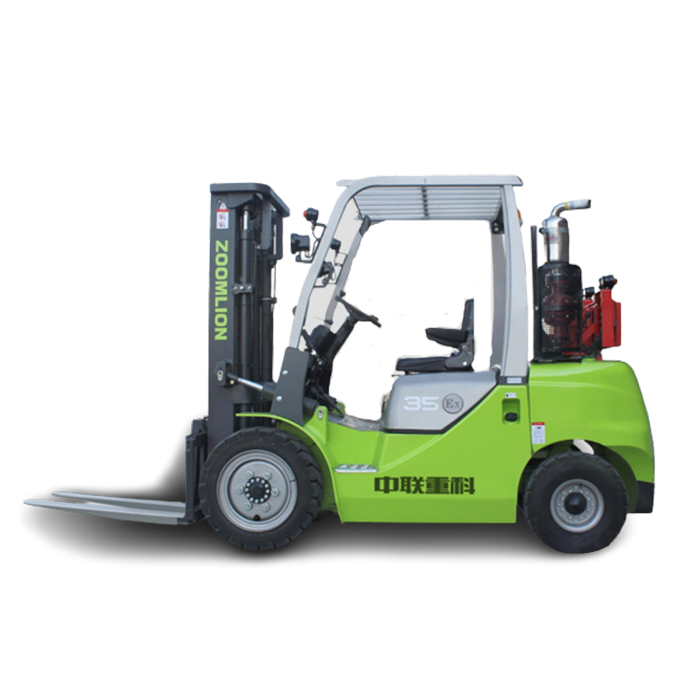

ZOOMLION FDEx35 Interal Combustion Forklift
FDEx35 internal combustion explosion-proof forklift forks and other parts that may generate mechanical friction or static electricity are processed by wrapping stainless steel or spraying anti-wear conductive paint. With the addition of battery switch and emergency stop valve, the whole truck is safer and more reliable.
More reliable
Forks and other parts that may generate mechanical friction or static electricity are treated by wrapping stainless steel or spraying anti-wear conductive paint. Add the battery switch and emergency stop valve, the whole vehicle is more safe and reliable. Exhaust gas treatment device: adopting exhaust gas spark prevention device and exhaust gas extinguishing gas structure and adding exhaust gas temperature monitoring device.
More efficient
The lighting of the whole vehicle adopts explosion-proof high-brightness LED components. The whole vehicle is equipped with temperature and leakage monitoring system. The whole vehicle adopts intrinsically safe parts such as sound alarm and pneumatic horn.
Parameter
| Rated capacity | 3500Kg |
| Load centre | 500mm |
| Lifting height | 3000mm |
| Free lifting height | 145mm |
| Tilting angle | 6°/12° |
| Turning radius | 2600mm |
| Front overhang | 482mm |
| Tread | 1000/970mm |
| Wheelbase | 1800m |
| Fork spread(Min./Max.) | - |
| Working aisle width with pallet(Ast) | - |
| Service weight | - |
| Operating pressure for attachment | / |
| Travel (Laden) | / |
| Travel(Unladen) | / |
| Lifting(Laden) | 401mm/s |
| Lifting(Unladen) | 433mm/s |
| Lowering (Laden) | / |
| Lowering(Unladen) | / |
| Laden | / |
| Driven motor | - |
| Battery | 90Ah/12V |
| Rear Wheel | / |
| Front Wheel | / |
| Overall Dimension(L×H×W) | / |
| Weight | 4450kg |
