Outline dimension:–
Concrete Output:49/26m³/h
Concrete Pressure:50/100 bar
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

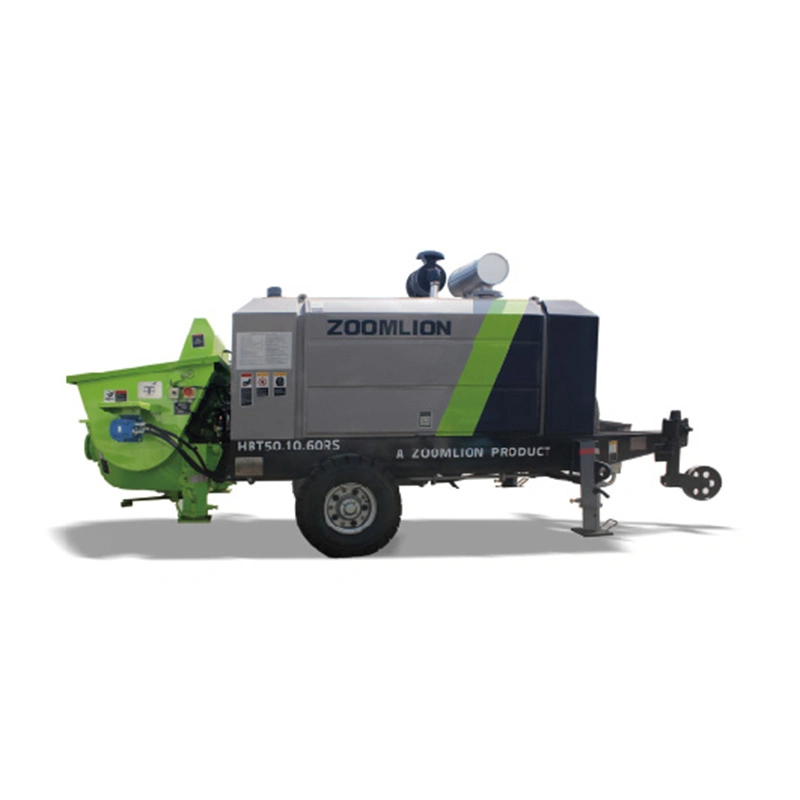

• The HBT50.10.60RS is the compact concrete pump, equipped with a Commins diesel engine and intelligent control system. It is your best choice for pumping height under 100m.
Technical Characteristics:
•Energy-Saving: Self-adaptive variable power distribution control technology Keep engine working within the economical fuel consumption range.
•High-Reliability: Adaptive pumping control technology, the chance of pump block reduced by more than 50%.
• Long service life wearing parts.
• The use of equivalent bending moment design ensures uniform force, reliable sealing and greatly prolongs the service life of bearing ring, spectacle wear plate and cutting ring. The feature of unilateral wear makes the theoretical service life of rock valve once higher than that of S-valve.
• The machine adopts the controller with color display, which can dynamically display and record various working parameters in real-time; main control functions are all finished directly by the controller, which reduces the use level of relay; and meanwhile with it, many intelligent control functions can be realized.
• Piston change is easy, convenient and time-saving. Traditional piston needs to be changed by repeatedly mounting and dismounting linkage and pumping at low speed.
•The system ensures the cleanness of hydraulic oil and thus generates higher operational reliability of hydraulic system, pump and other hydraulic elements.
Parameter
Drive power | 60KW |
Max. Concrete Output | 49/26m3/h |
Max. Concrete Pressure | 50/100bar |
Concrete Cylinder(diam x stroke) | Φ180×1250mm |
Strokes | 26/13.8Min -1 |
Hopper Capacity | 500L |
Filling height | 1335mm |
