View larger image
Min. Turning Radius：1751 mm
Max. Lifting Speed(loaded/empty)：260/360 mm/s
Max. Lifting Height：4500 mm
Rated Capacity：1600 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

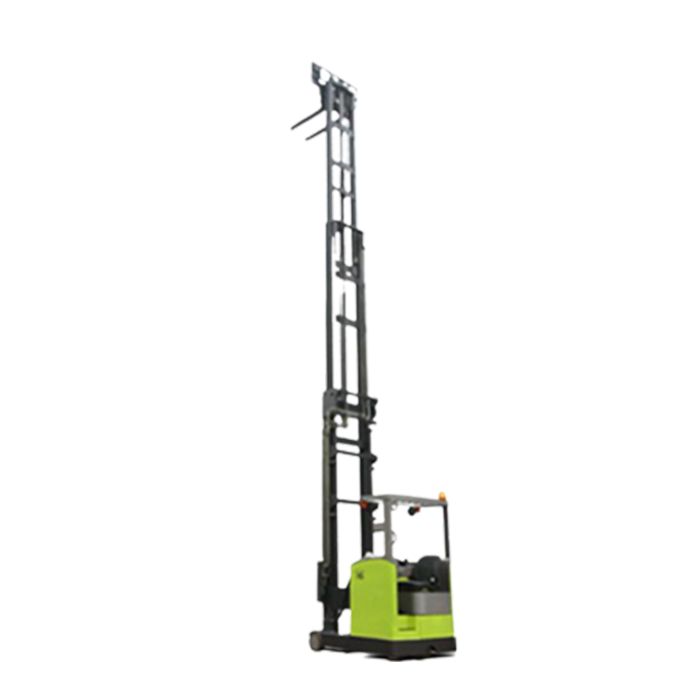

ZOOMLION YB16-S2 Reach Trucks
YB16 reach truck adopts German imported gantry channel steel and specially designed gantry structure, which effectively ensures the stability of the vehicle during high lifting. Curve speed reduction system and lifting height speed limiting function can avoid the danger of rollover which may be caused by improper operation.
More Reliable
German imported portal frame channel steel, as well as the special design of the portal frame structure, to effectively ensure the stability of the vehicle during high lifting.
Curve speed reduction system and lifting height speed limit function, to avoid the danger of rollover which may be caused by improper operation.
Reinforced roof rack design, good visibility, and optimised design of door frame visibility.
Higher efficiency
German imported drive unit, superior performance, good reliability, all AC motor without carbon brush maintenance-free.
Standard EPS electronic power steering system, easy to operate and save energy. Battery can be taken side by side or lifting, standard side battery bracket can store two groups of batteries, battery replacement is convenient, without additional equipment investment.
Parameter
| Rated capacity | 1600Kg |
| Load centre | 600mm |
| Lifting height | 4500mm |
| Free lifting height | 1335mm |
| Tilting angle | 2°/4° |
| Turning radius | 1751mm |
| Front overhang | 355mm |
| Tread | / |
| Wheelbase | 1490m |
| Fork spread(Min./Max.) | / |
| Working aisle width with pallet(Ast) | / |
| Service weight | - |
| Operating pressure for attachment | / |
| Travel (Laden) | 9Km/h |
| Travel(Unladen) | 9.5Km/h |
| Lifting(Laden) | 260mm/s |
| Lifting(Unladen) | 360mm/s |
| Lowering (Laden) | 500mm/s |
| Lowering(Unladen) | 400mm/s |
| Laden | / |
| Unladen | / |
| Driven motor | 6.4kW |
| Pump motor | / |
| Battery | 48V/500Ah |
| Controller | / |
| Rear Wheel | / |
| Front Wheel | / |
| Overall Dimension(L×H×W) | / |
| Weight | 3158kg |
