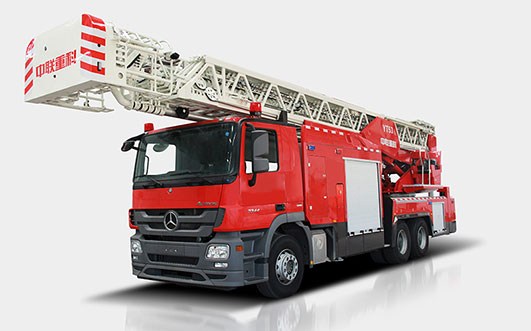

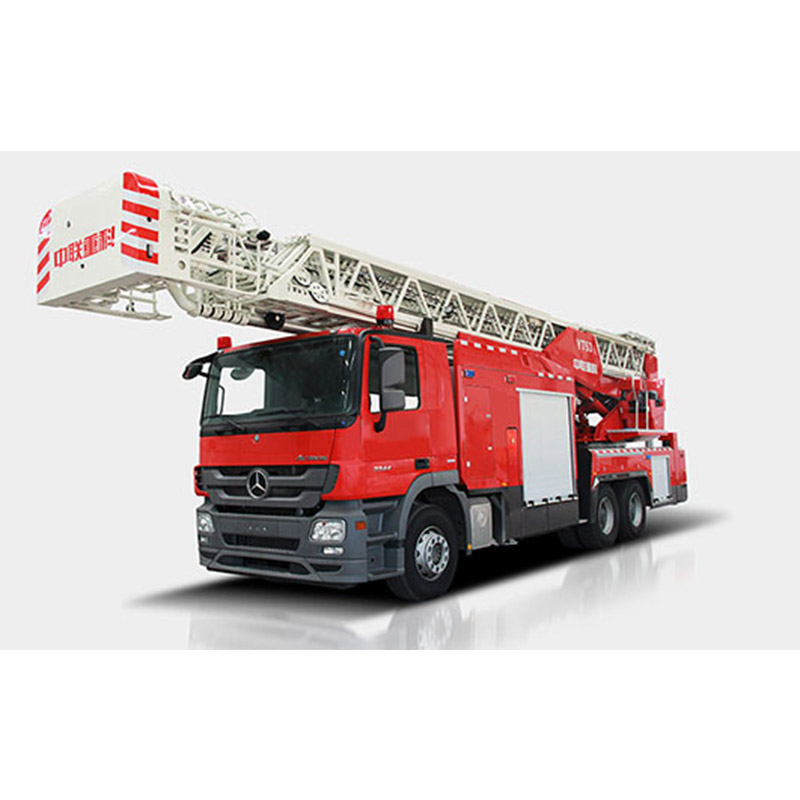

ZOOMLION YT53 Aerial Ladder Fire Fighting Vehicle

Aerial ladder is quite suitable for industrial and domestic medium and high buildings fire-extinction and rescue; it also can be used for municipal high-altitude operation and garden spraying operation.

0 1. More safety and efficiency

Aerial ladder could be used in the high and low altitude rescue.

The max load bearing capacity of the platform can reach to 450Kg.

The consoles at turntable, platform and rear of the truck could easily achieve the water pump start-stop, adjust rotation rate of the engine, and monitor the liquid level of water tank and pressure of waterways.

0 2. Powerful fire-extinction capacity

The pitch, rotation and spraying mode (fog-spout) of water nozzle are controlled by electronic, and the max distance of water spraying can reach to 80m at the standard pressure.

Water curtain device under the platform can protect the platform against to the heat and smoke from the fire.

Hard pipe connections between the pump and water monitor are stiffness structure, which means the minimum water transmission loss.

03.Excellent handling and safety

Platform anti-Collision protection system.When the left, right or front side of the platform gets close to the barriers, the system will alert automatically and stop the following approaching actions immediately.

Interlock system. The ladder can not be operated unless outriggers are expended and supported. Conversely the outriggers couldn’t be operated when ladder is in operation status, to enhance safety.

Rotatable platform. Platform can rotate to the upside of ladder when driving, which wouldn’t block the driver’s sight.

Better driving vision and handling. Aerial ladder could easily assemble on various special chassis both of which has large space cab and great handling.

04.Ladder steady startup and stop control technology

Ladder stabilized control technology. This technology could greatly damp the oscillations caused by accidental impact in ladder’s movement and make the rescue more accuracy, safety.

05. Fast lifting rescue technology

This technology has rebuilt a fast rescue channel between the grounds to target and it could make the lifting platform slide from the bottom to top in just 55s. The lifting platform is manufactured by aluminum alloy and it could be folded on the ladder.

06.Arc ladder structure

The ladder is designed and manufactured in special arc structure. Arc structure could enhance the endurance capability and decrease the deflection of ladder, which means more safety and less oscillation in rescue.
