Max. Working Height：16 m
Max. Platform Height：14 m
Max. Working Range：8.10 m
Platform Capacity：230 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

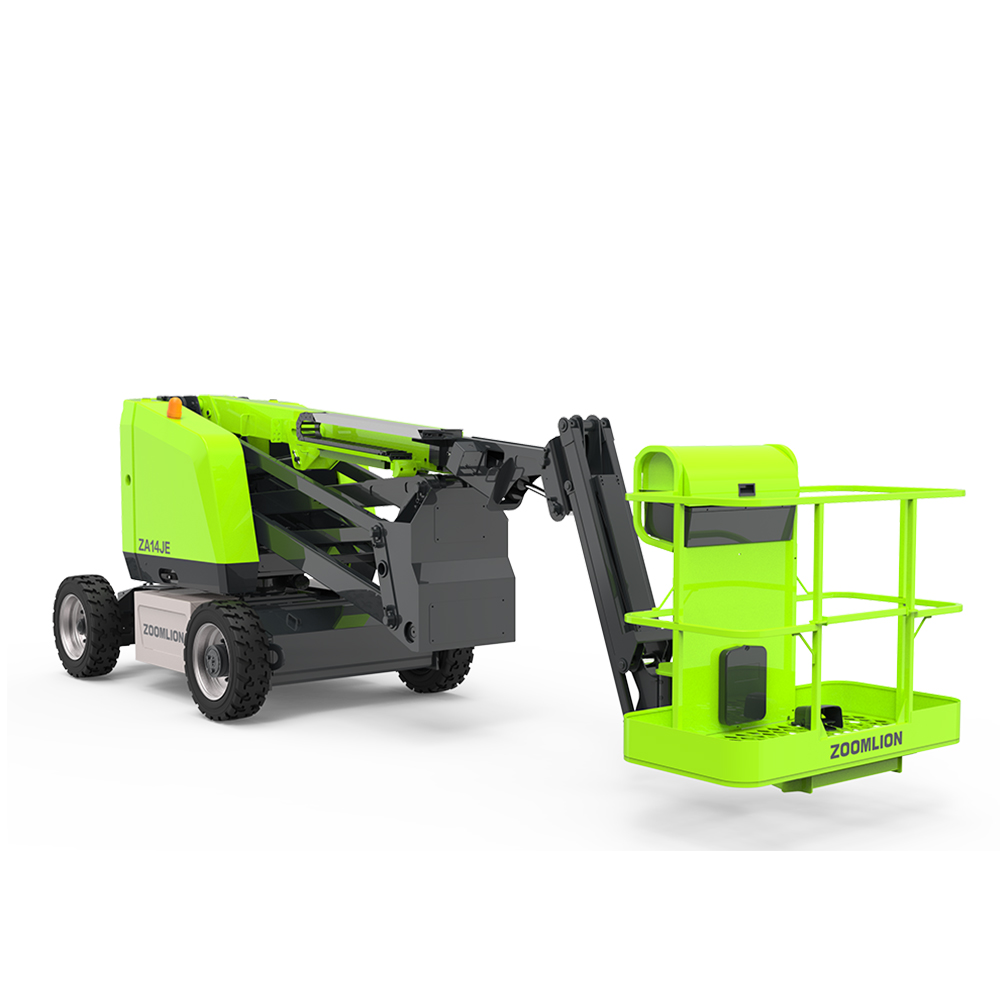

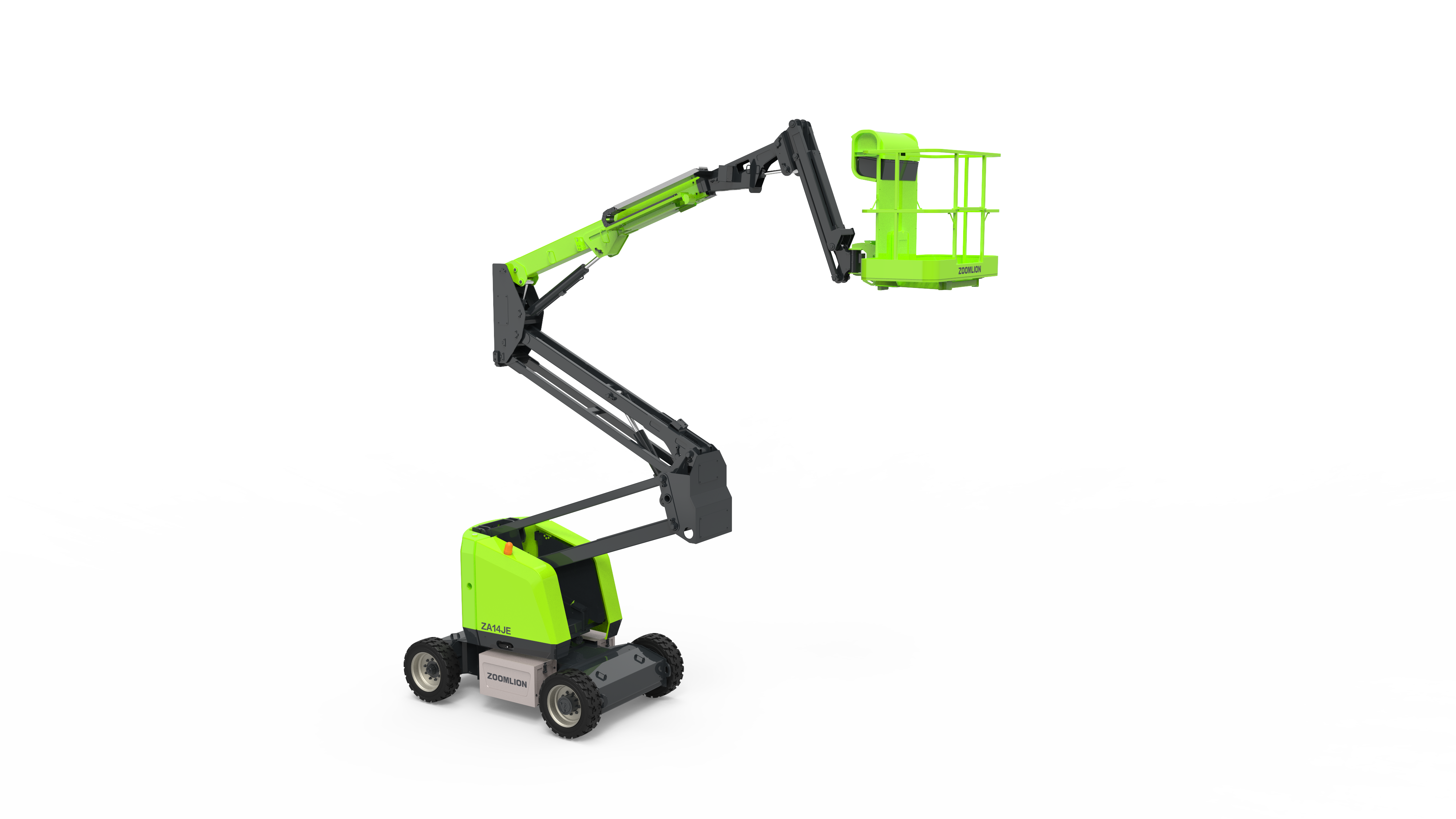

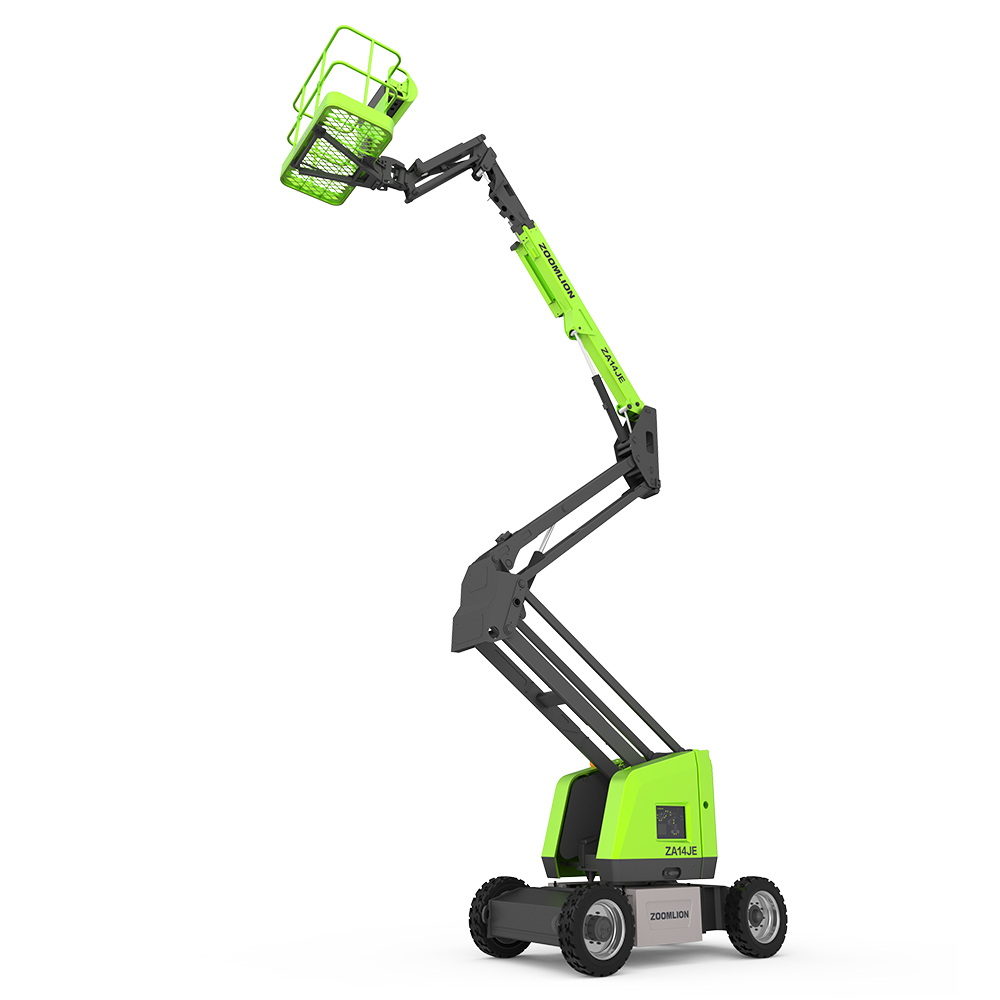

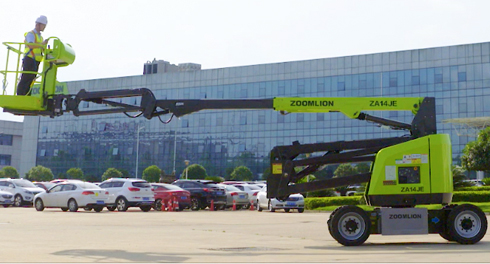

ZOOMLION ZA14JE Articulating Boom Lift
ZA14JE electric curved boom aerial work platform products adopt a centre-mounted layout for better structural rigidity. The excellent energy management system improves the range while effectively prolonging the battery life. Precise and efficient AC travelling drive system, strong power and smooth control. Advanced dual-control system (valve control + pump control) provides more energy-saving, smooth and efficient control experience.ZA14JE products are low-noise, zero-emission, long range, easy maintenance, especially suitable for indoor construction work.
ZA14JE electric curved boom aerial work platform products adopt a centre-mounted layout for better structural rigidity. The excellent energy management system improves the range while effectively prolonging the battery life. Precise and efficient AC travelling drive system, strong power and smooth control. Advanced dual-control system (valve-controlled + pump-controlled) provides more energy-saving, smooth and efficient control experience.
ZA14JE products have low noise, zero emission, long range and easy maintenance, especially suitable for indoor construction work.
Centre-mounted layout, better structural rigidity, small boom deflection;
Advanced dual-control system (valve control + pump control) provides a more energy-saving, smooth and efficient handling experience;
Precise and efficient AC travelling drive system, strong power and smooth control.
Parameter
| Max.Working height | 16m |
| Max.Platform height | 14m |
| Max.Working range ability | 8.10m |
| A Storage length | 6.6m |
| B Storage length | 1.75m |
| C Storage length | 2m |
| D Length of platform | 1.52m |
| E Working platform width | 0.76m |
| F Wheel base | 2.05m |
| Wheel track | / |
| G Minimum gap | 0.20m |
| Load Capacity | 230kg |
| Travel speed (Collection status) | 6.1km/h |
| Max.Gradeability | 30%(17°） |
| Inside turning radius | 0.79m |
| Outside turning radius | 3.15m |
| Turntable rotation angle | 360° |
| Platform swing angle | ±90° |
| Tail swing | / |
| Max.working wind speed | 12.5m/s |
| batteries | 24*2V/320Ah（c5） |
| battery level | 48V/35A |
| drive motor | AC 32V |
| Hydraulic oil tank | 30L |
| Tire model | 250/15 |
| Total weight | 6800kg |
