Max. Working Height：21.45 m
Max. Platform Height：19.45 m
Max. Working Range：12.05 m
Platform Capacity：250 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

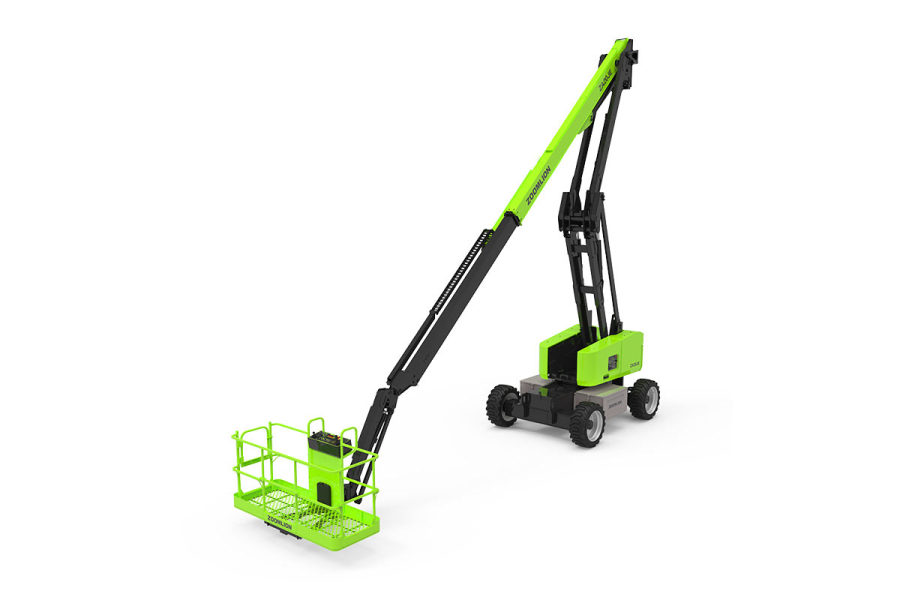

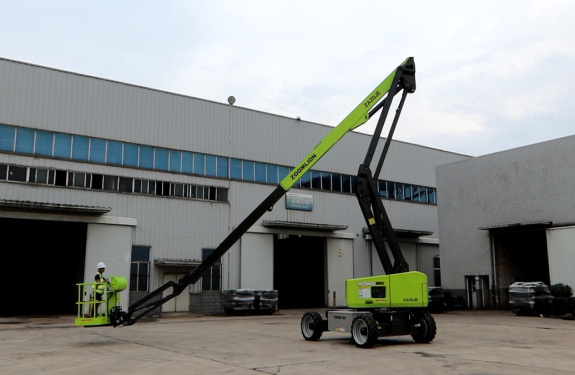

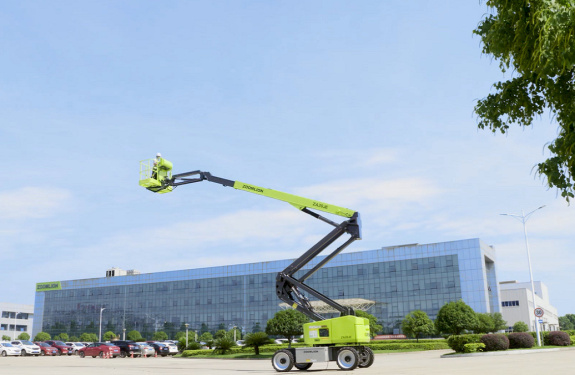

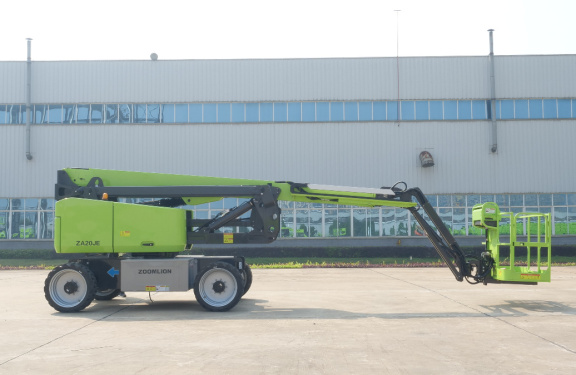

ZOOMLION ZA20JE Articulating Boom Lift
The maximum working height is 21.45m, and the platform load is 250kg, which provides a larger working height and stronger loading capacity in the same class in the industry.
With the application of rapid platform lifting function, the platform can be lowered to the ground without manoeuvring the folding arm, which greatly improves the working efficiency.
Precise and efficient travelling AC drive system and. AC drive system for on-board movement, strong power, smooth control, and maintenance-free motor for the whole vehicle.
Independent emergency power system provides more safety protection.
Parameter
| Max.Working height | 21.45m |
| Max.Platform height | 19.45m |
| Max.Working range ability | 12.05m |
| A Storage length | 8.72m |
| B Storage length | 2.46m |
| C Storage length | 2.52m |
| D Length of platform | 1.83m |
| E Working platform width | 0.76m |
| F Wheel base | 2.52m |
| Wheel track | / |
| G Minimum gap | 0.33m |
| Load Capacity | 250kg |
| Travel speed (Collection status) | 6.1km/h |
| Max.Gradeability | 45% |
| Inside turning radius | 2.78m |
| Outside turning radius | 5.49m |
| Turntable rotation angle | 400° |
| Platform swing angle | ±90° |
| Tail swing | / |
| Max.working wind speed | 12.5m/s |
| batteries | 24x2V/440Ah |
| battery level | 48V/60A |
| Lifting motors | AC 32V |
| Hydraulic oil tank | 75L |
| Tire model | 33x12 D610 |
| Total weight | 9200kg |
