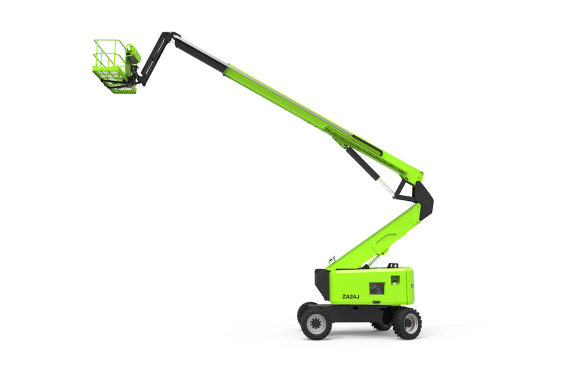

ZOOMLION ZA24JH Articulating Boom Lift
VS


Max. Working Height:26.5 m

Max. Platform Height:24.5 m

Max. Working Range:18.9 m

Platform Capacity:230 kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

ZOOMLION ZA24JH Articulating Boom Lift


ZA24JH hybrid aerial working platform has the features of green environmental protection, large working range, strong obstacle-crossing ability, high reliability, precise and efficient control, and so on. It provides various power modes such as pure electric and hybrid.



ZA24JH Hybrid Jib Aerial Work Platform features green environmental protection, large working range, strong obstacle-crossing ability, high reliability, precise and efficient control, and so on. It provides various power modes such as pure electric and hybrid;

The pure electric mode is low noise and zero emission, which is green and environmentally friendly; the hybrid mode is low noise and low emission, and the engine always works in the high efficiency zone, which is energy-saving and efficient.

**Large working height of 26.5m, **Large operating range of 18.9m, **Large spanning height of 9.42m, providing a larger operating range and stronger obstacle-crossing ability in the same class in the industry.

Strong power system, professional off-road chassis combined with pure electric, hybrid and other power modes, can be capable of a variety of indoor and outdoor complex operating conditions;

The hydraulic system adopts multi-way valves with precise flow distribution function, which, together with the safe and precise control system, provides a safer, more efficient and more comfortable handling experience;

Intelligent fault diagnosis system, life-long maintenance-free batteries and motors, lubrication-free design of the whole machine, and the outwardly oscillating engine tray make the maintenance more convenient and quick, which can effectively reduce the total cost of ownership.

Parameter

Max.Working height26.5m
Max.Platform height24.5m
Max.Working range ability18.9m
A Storage length11.2m
B Storage length2.49m
C Storage length3m
D Length of platform2.44m
E Working platform width0.91m
F Wheel base3.05m
Wheel track/
G Minimum gap0.42m
Load Capacity230kg
Travel speed (Collection status)5km/h
Max.Gradeability45%
Inside turning radius3.35m
Outside turning radius6.48m
Turntable rotation angle360°
Platform swing angle±90°
Tail swing1.15m
Max.working wind speed12.5m/s
MotorKubota
batteriesAGM
Fuel tank capacity150L
Hydraulic oil tank capacity180L
Tire model15-625
Total weight17800kg
