View larger image
Max. Working Height：33.85 m
Max. Platform Height：31.85 m
Max. Working Range：21.17 m
Platform Capacity：250 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

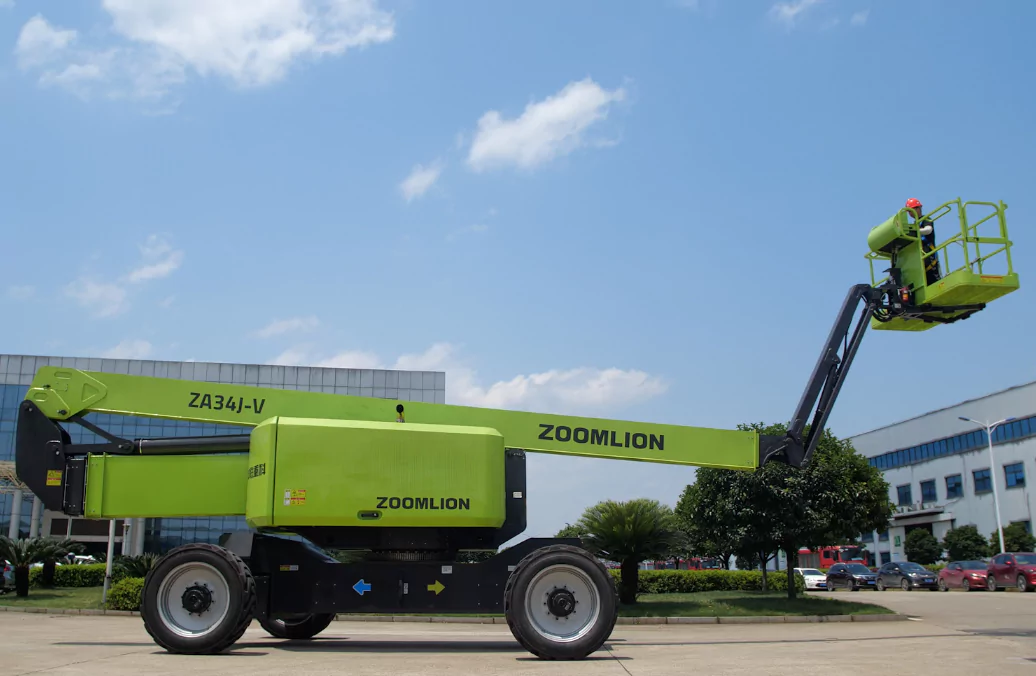

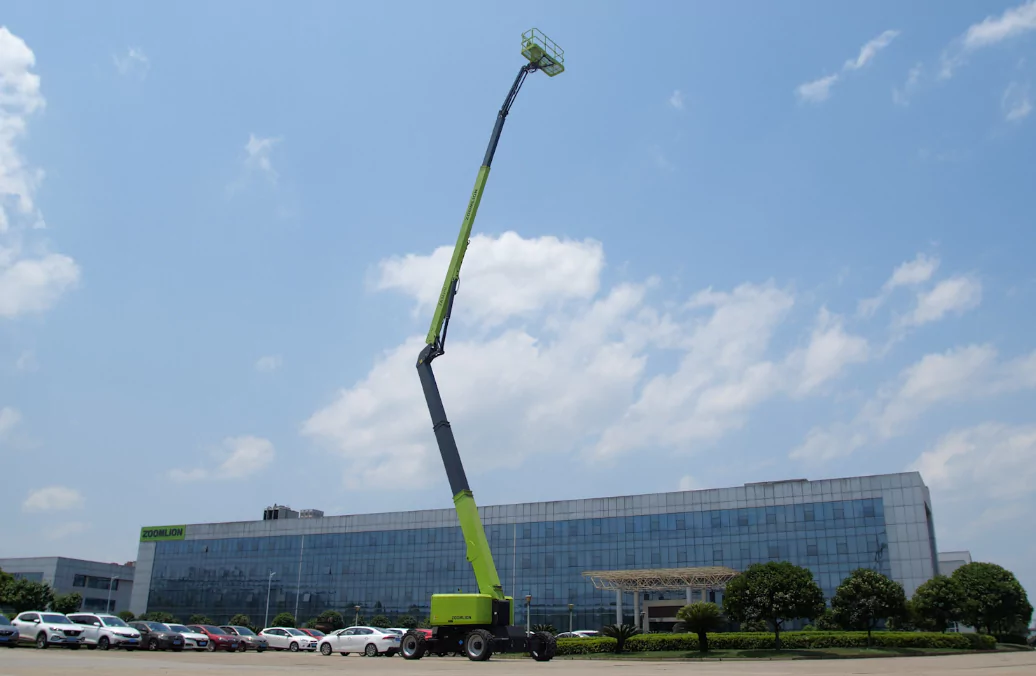

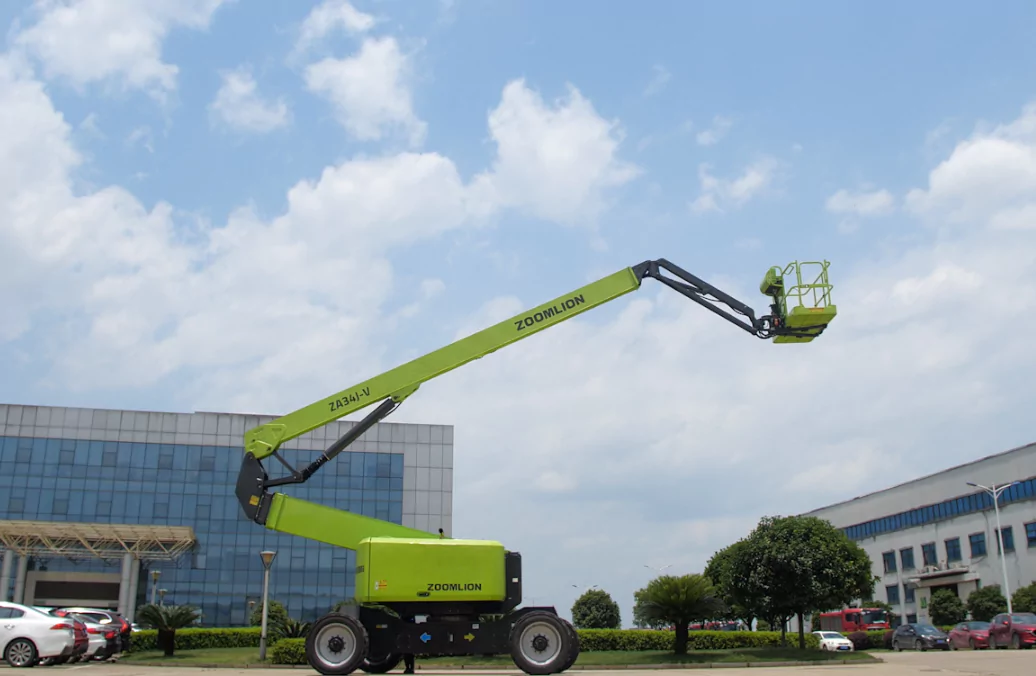

ZOOMLION ZA34J-V Articulating Boom Lift
The Zoomlion ZA34J-V articulated boom lift is a versatile and efficient aerial work platform for a wide range of applications such as construction, maintenance and industrial tasks. With a load capacity of 230 kg, the platform can safely accommodate workers and equipment.
Featuring an electric drive system, this articulated boom lift is zero-emission and quiet in operation, making it ideal for indoor and urban environments. The articulated boom design allows for flexible maneuvers around obstacles, while the 360° continuous rotation of the turret ensures greater accessibility.
The ZA34J-V is equipped with advanced safety features such as automatic leveling, overload protection and an emergency descent system to ensure operator safety during use. Its compact structure makes it easy to transport and navigate in tight spaces.
Featuring a rugged design, energy efficiency and user-friendly controls, the ZOOMLION ZA34J-V delivers high reliability and performance for indoor and outdoor aerial applications.
Parameter
| Max.Working height | 33.85m |
| Max.Platform height | 31.85m |
| Max.Working range ability | 21.17m |
| A Storage length | 12.6m |
| B Storage length | 2.49m |
| C Storage length | 3.1m |
| D Length of platform | 2.44m |
| E Working platform width | 0.91m |
| F Wheel base | 3.81m |
| Wheel track | / |
| G Minimum gap | 0.42m |
| Load Capacity | 250kg |
| Travel speed (Collection status) | 5.2km/h |
| Max.Gradeability | 45% |
| Inside turning radius | 2m |
| Outside turning radius | 7.7/3.3m |
| Turntable rotation angle | 360° |
| Platform swing angle | ±90° |
| Tail swing | / |
| Max.working wind speed | 12.5m/s |
| Engine Model | Cummins QSF2.8 |
| Engine power | 54kw/ 2400RPM |
| Fuel tank volume | 200L |
| Hydraulic system capacity | 300L |
| Tire model | 445/50D710 |
| Total weight | 19200kg |
