Total Weight: 3700kg
Applicable Excavators: 36-50t
Oil pressure :250-280bar
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

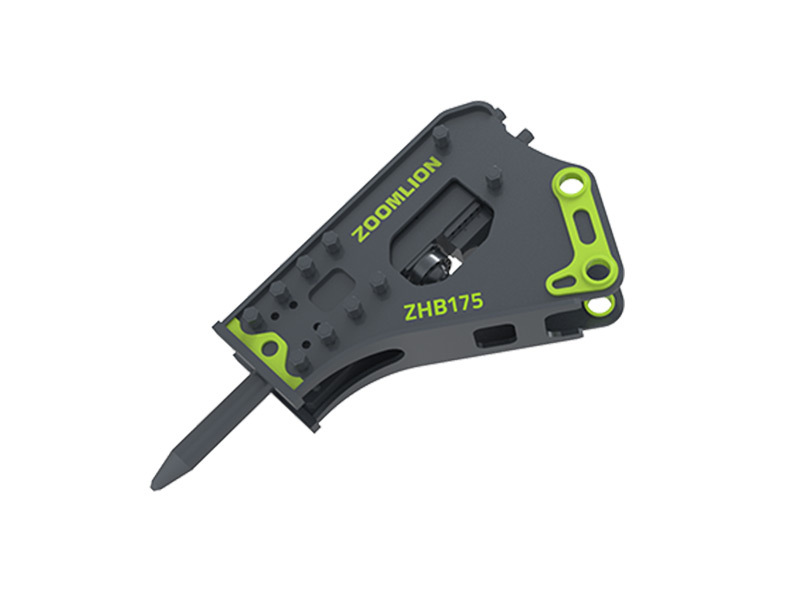

ZOOMLION ZHB175 Hydraulic Break Hammer
Strong striking force
-Strong striking force, large impact energy, efficient operation, stable and reliable system structure.
-Adopting high pressure accumulator to reduce pressure impact and increase striking energy.
-Perfect matching between piston and cylinder and reversing valve and cylinder ensures the best movement of piston and reduces friction, and
Equipped with anti-drift device.
Reliable quality
-Multiple heat treatment processes to ensure good mechanical properties of the structural parts, both wear-resistant and not easy to break.
High-quality high-pressure nitrogen accumulator, high-performance external directional valve, high-density alloy steel rod.
Convenient maintenance
Semi-open design, easy maintenance.
-Main body warranty of 6 months or 1500 hours of working time accumulated, whichever comes first.
Parameter
Total Weight | 3700kg |
Diameter of brazing rod | 175mm |
Oil pressure | 250-280bar |
operating flow | 250-270V/min |
impact frequency | 200 -250bpm |
Nitrogen chamber air pressure | 20-22bar |
Accumulator air pressure | 60- 65bar |
Request a Quote
