Total Weight: 6500kg
Applicable Excavators: 50-70t
Oil pressure :280-300bar
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

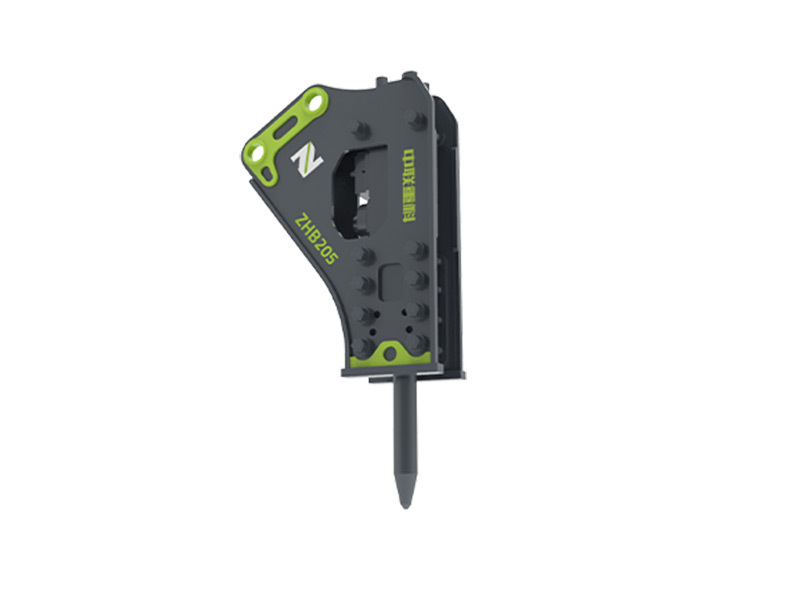

ZOOMLION ZHB205 Hydraulic Break Hammer
Strong striking force
-The piston is used to hit the brazing rod, converting its own kinetic energy into impact energy, which is transferred to the brazing rod to break the rock.
-Adopt high pressure accumulator to reduce the pressure impact and increase the striking energy.
Configuration flow adjustment device effectively adjusts the excavator hydraulic oil flow, according to different needs to adjust the crushing hammer striking force and striking frequency, so that the energy is highly efficient.
Adjusting the striking force and striking frequency of the hammer according to different needs, so that the energy can be utilised efficiently.
Reliable quality
-The selection of high specification raw materials and advanced processing heat treatment manufacturing technology, from the source to ensure the quality of the crushing hammer, improve its service life.
The quality of the hammer is guaranteed from the source and the service life of the hammer is improved.
The nitrogen chamber is equipped with a nitrogen valve and filled with nitrogen, which is used for accumulating energy and stabilising pressure, which can not only improve the initial thrust of the piston, but also
It can not only improve the initial thrust of the piston, but also reduce the pulse of the oil circuit and protect the hydraulic system.
Energy saving
-It has the world’s leading technology of low nitrogen, low flow and low oil consumption.
-Adopts the optimal design concept, so that the crushing hammer and the host machine are matched with the best effect, and the highest output energy is reasonably utilised,
Energy saving.
Parameter
Total Weight | 6500kg |
Diameter of brazing rod | 205mm |
Oil pressure | 280-300bar |
operating flow | 300-350V/min |
impact frequency | 180-300bpm |
Nitrogen chamber air pressure | 20-25bar |
Accumulator air pressure | 65- 68bar |
