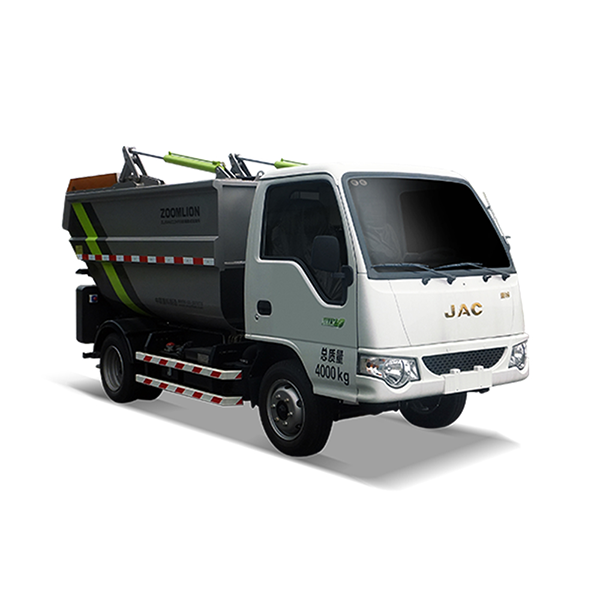

ZOOMLION ZLJ5040ZZZHFE5 Self-Loading Garbage Truck
VS


Volume of the Dustbin:3.5m³
Maximum Total Mass:4000kg
Overall dimensions:4970×1655×2390mm

Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature

ZOOMLION ZLJ5040ZZZHFE5 Self-Loading Garbage Truck


  • Environmental protection:Fully enclosed box,With sealed rear door,Sealed transportation of garbage,The leakage of garbage and sewage along the way is eliminated.,Avoiding the secondary pollution in the transportation process.
  • High efficiency:And that adopt structure is simple,Reliable feeding mechanism,Short single feeding cycle time of feeding mechanism,And that operation efficiency is high.
  • Hydraulic system:The mechanism action is controlled by manual multi-way valve.,No complex control system,And that reliability is high.
  • Bucket turning mechanism:The optimized design of the bucket turning frame and the feeding port avoids the waste spillage during feeding.
  • The load is large:The volume of the dustbin is large,The loading capacity is large,Able to meet most customer requirements.
  • Unloading mode:The dumping mode is adopted,Discharging is fast、Clean.
  • Compatibility:Can be realized with the companyYJCUsed together with 400 series vertical compression station.
  • Humanized setting:Night lights shall be provided near the barrel turning mechanism.,And is convenient for night operation.

Parameter

Operation mode of power take-offElectric
Chassis brandJianghuai(CountryV)
Maximum total mass4000kg
Maximum pressure of hydraulic system16MPa
Discharge Cycle Time≤55s
Overall dimensions4970×1655×2390mm
Turnover and feeding cycle time/
Volume of the dustbin3.5m³
Chassis engine model/
Control mode/
Maximum climbing gradient≥30%
Working cycle time of scraper mechanism≤32s
Height of discharge port1150mm
Maximum speed100km/h
Discharge working height4250mm
Minimum turning diameter9.3m
