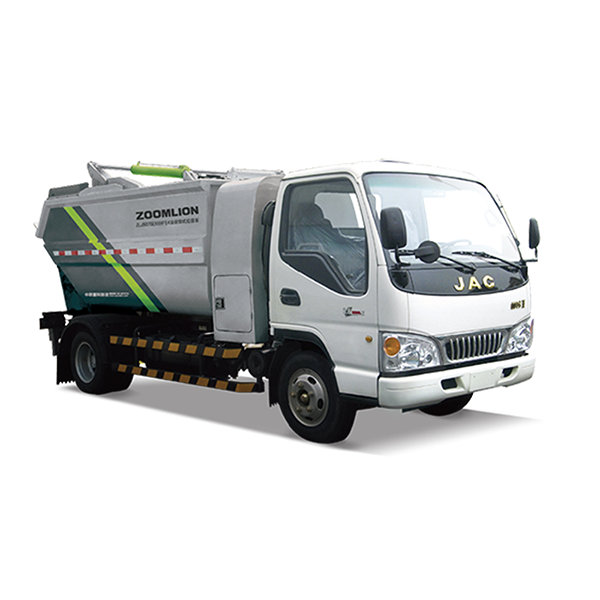

ZOOMLION ZLJ5100ZYSDFE5 Leakless Compression Type Garbage Truck

Environmental protection Environment

● Ship-type stern dustbin：Boat shaped bottom plate design，The water storage capacity is strong，Solve the problem of sewage leakage。

● Anti-float constant gap filling mechanism：Initiate the constant gap control technology for dynamic compaction operation，The gap between the pressing and filling mechanism and the opening of the dustbin is always kept constant，Prevent garbage from floating。

● Adjustable rear door seal technology：The rear door of the dustbin is of adjustable design.，Realizing the compression compensation function of the sealing rubber strip。

● Design of Double Operation Modes of Leakless Compression Garbage Truck，Automatically match the high and low speeds of the engine，Realize both normal and low-noise operation。

Efficient High Efficiency

● Through finite element analysis and dynamic simulation calculation，Increase compression ratio to 1:2.7 ，Improve transportation efficiency。

Intelligence Intelligence

● Break through that tradition of garbage truck in the market I/O+PLC Control mode，Adopt the most advanced technology in the industry“CANBus+Dedicated controller mode”，High degree of automation，The failure rate is low， The reliability is good，And that service life is long、Control、Maintenance is more convenient。

● Multimedia real-time monitoring system，Monitor the compaction、Loading、Unloading and reversing rear view information，Protect the safety of vehicle operation。

Characteristic

● Strong sewage collection capacity:Equipped with high capacity sewage tank，Greater water storage capacity。

● And that press and filling mechanism can cov the feeding port of the dustbin.，Realize airtight transportation，Liminate garbage scattering in that transfer proces。

● Original cylinder drive barrel pressing plate to execute barrel pressing technology，Eliminate the risk of dropping barrels that may occur in the process of high-level feeding operation。

● Break through that tradition of garbage truck in the marketI/O+PLCControl mode，Adopt the current most advancedCANBus+Dedicated control mode，High degree of automation，The reliability is good，The failure rate is low， And that service life is long。

● Face contact and lateral contact limiting technology is adopted，Shovel push-out smoothness、And that stability is improve。

● Passability is better，More capable of avoiding obstacles，Meet harsh operating environments such as narrow streets and landfills in old urban areas。

● Multiple interlock protection design，Safe and reliable。

● Based onFEMFinite element design method，Combined with the selection of new lightweight materials，Realize the lightweight of the whole structures。

● Economical working speed operation、Low fuel consumption。

● The loading capacity is strong、The transportation cost is low。

● Selection of high quality weathering steel，High ultimate strength，Strong corrosion resistance。

● The operation panel is made of high-quality silica gel.，Wear and corrosion resistance，Centralized display of working condition information，Comfortable operation。

● Imported ferrule type hydraulic pipelines，And that service life and reliability are improve.。

● High-quality combined proportional control valve，And that operation noise is reduce。

● Intelligent multimedia system brings more humanized operation experience。

● Have“Low noise”And“Efficient”Dual operation mode，One key operation is completed。

● Originated from professional industrial design team，Highlight fashion，Highlight the atmosphere；Skirted aluminum alloy guardrail、Parts such as left and right trim panels on the top of the box are elaborately designed.，Beautiful and elegant。
