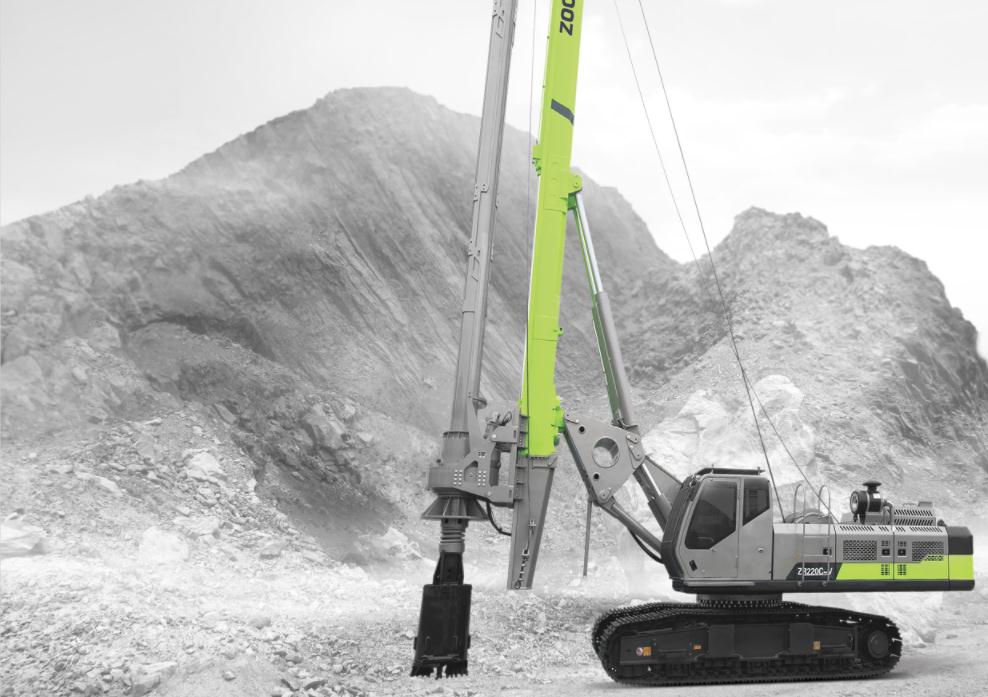

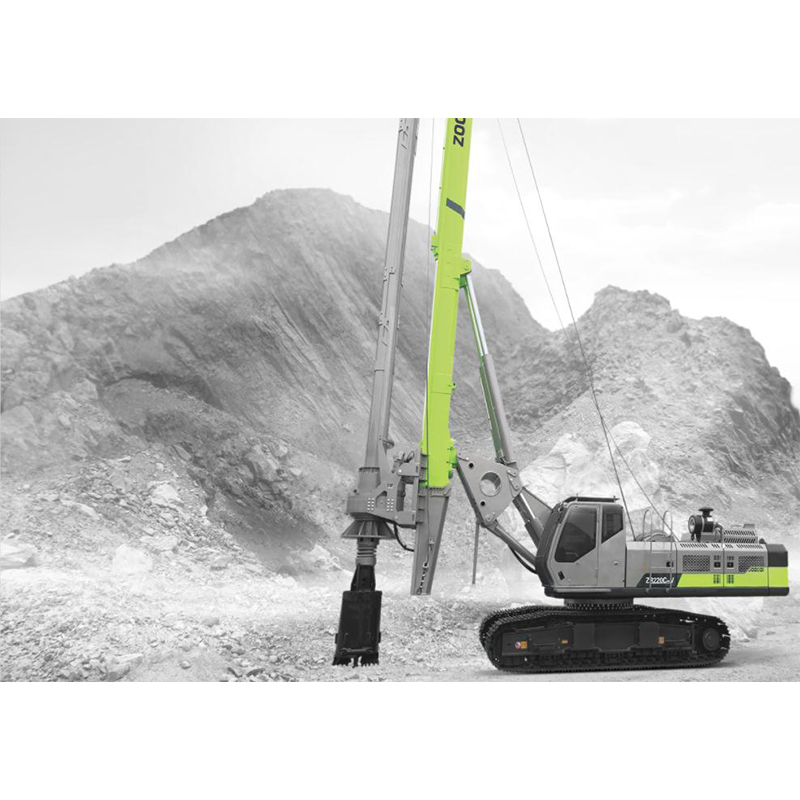

ZOOMLION ZR240C-3 Rotary Drilling Rig

Home Product Rotary Drilling Rig Piling Machinery

View larger image

Model：ZR240C-3

Rated Power(kW)：242kW

Max.output torque(kN﹒m)：245

Delivery Time：

In Stock (Within 7 days)

Production (Within15 to 30 days)

Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee

After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Chat Now

Message E-mail ：info@machplaza.com

Share To:

Feature Parameter Brochure

Feature

ZOOMLION ZR240C-3 Rotary Drilling Rig

The rear main winch with single-layer-rope drum and twin reducers mechanism, which extends service life of the steel wire rope significantly.

High construction efficiency due to big flow main pump, multi-gear rotary drive, and two-speed crowd cylinder.

More stable structure and stronger bearing capacity due to the 5th generation rotary drive, large supporting angle of the mast cylinder, lower center of gravity, and reinforced chassis .

One key for folding cathead, fixed mast support. Equipment can be transferred easily and quickly.

Version 2.0 power matching and limit load control technology, working efficiency increased by 10%.

New generation cab with better vision, more comfortable operation, new electrical control panel. 360 degree full view monitoring.

Options:Crowd winch (stroke 15.5m), auto-lubrication, spin-off.

Parameter

Torque	245KN.M
Drilling Diameter	2000mm
Engine Model	Cummins QSL9
Rated Power	242kw
Rated Engine Speed	2000r/min
Max.Crowd Force	220kn
Max.Crowd Cylinder Pull	230kn
Line Speed	70m/min
Operating Mass	76t
Traction Force	423kn
