View larger image
Model：ZR280C-2
Rated Power(kW)：298kW
Max.output torque(kN﹒m)：280
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

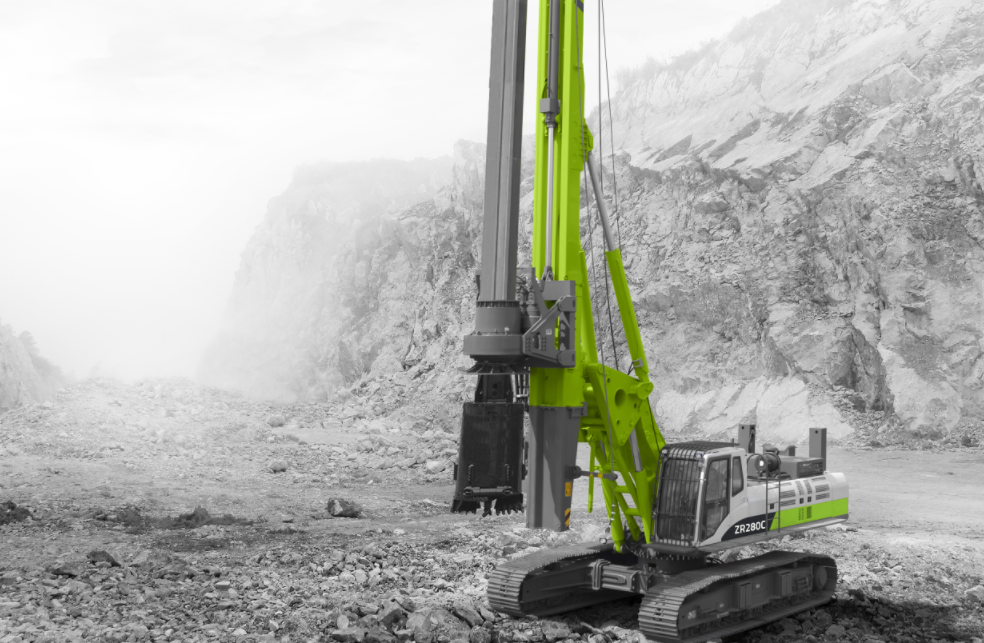

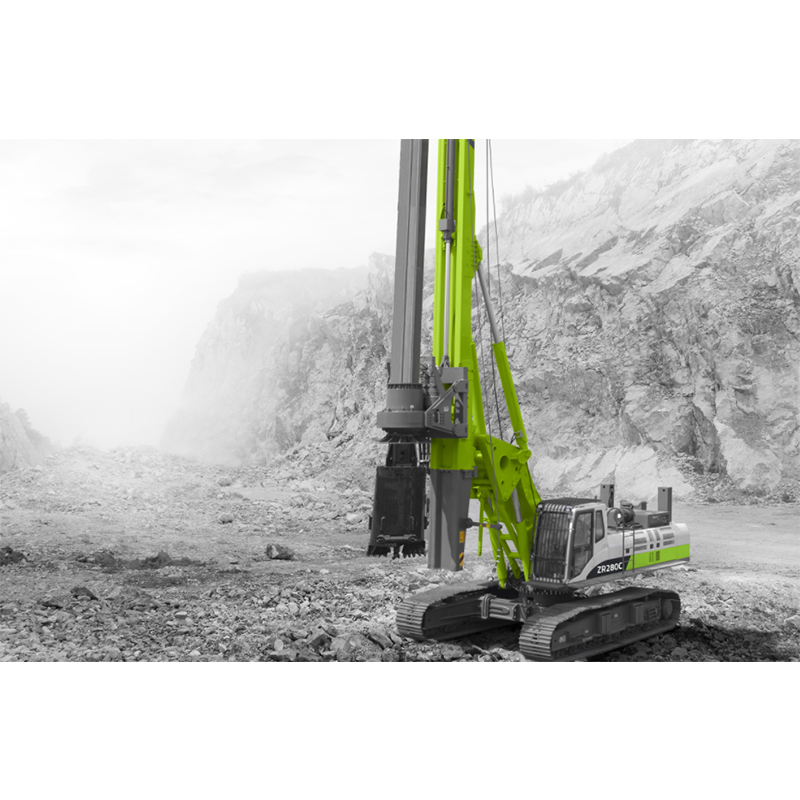

ZOOMLION ZR280C-2 Rotary Drilling Rig
* * Rotary drive with three motors, which ensures large torque, high reserve coefficient and stronger construction capacity.
* High construction efficiency due to big flow main pump, multi-gear rotary drive, and two-speed crowd cylinder.
* More stable structure and stronger bearing capacity due to large supporting angle of the mast cylinder, lower center of
gravity, and reinforced chassis.
* New generation cab with better vision, more comfortable operation, new electrical control panel. 360 degree full view
monitoring.
Options:5th generation rotary drive, auto-lubrication, spin-off.
Parameter
| Torque | 280KN.M |
| Drilling Diameter | 2500mm |
| Engine Model | Cummins QSM11 |
| Rated Power | 298kw |
| Rated Engine Speed | 2100r/min |
| Max.Crowd Force | 260kn |
| Max.Crowd Cylinder Pull | 260kn |
| Line Speed | 68m/min |
| Operating Mass | 93t |
| Traction Force | 557kn |
