ZOOMLION ZS0407DC Scissor Lift
VS


Work Height:6.5 m

Platform Extension:0.6 m

Overall Height (Rails Down):1.7 m

Platform Capacity:240 kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

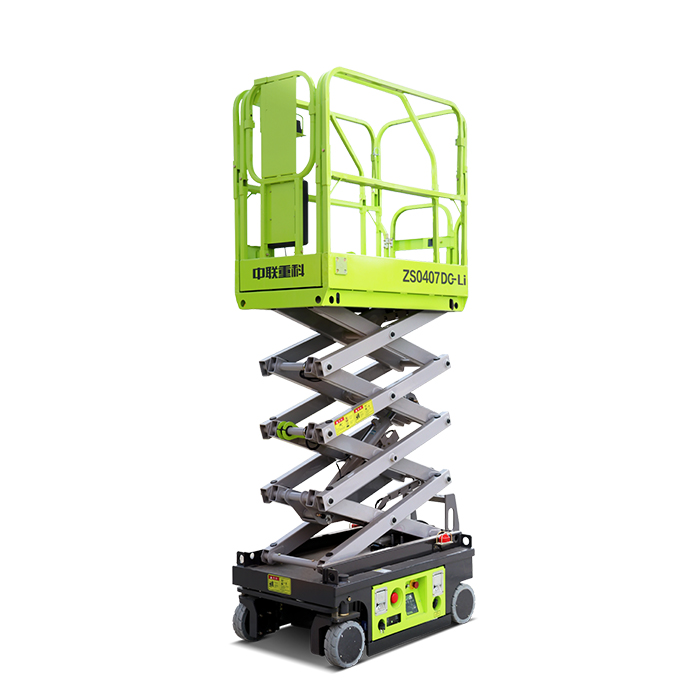

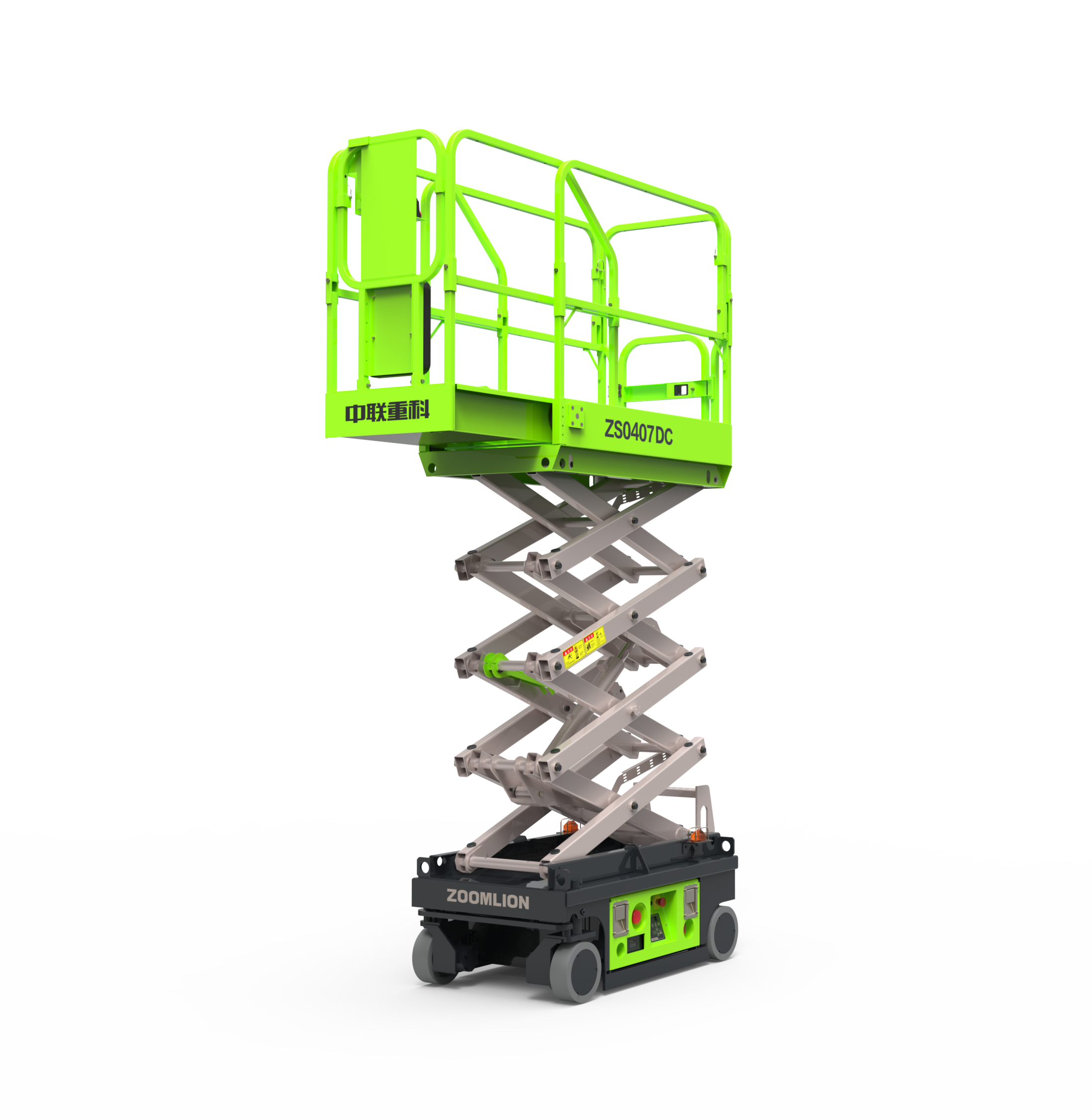

ZOOMLION ZS0407DC Scissor Lift


This series of products for the DC motor drive, optional lithium-ion battery, the new ZS0407DC scissor and fork aerial working platform light weight, small size, not subject to the lift load limitations from the building ladder into the passenger lift, the full electric driving system, energy saving and environmental protection, no noise suitable for indoor work, a strong range of capacity to ensure that the equipment to work around the clock.



High operating efficiency

Motor-driven travelling, the conversion efficiency is 1 times higher than that of hydraulic-driven travelling.

Meets the needs of narrow and crowded spaces and weight-restricted aerial work applications.

With a total weight of only 895kg, the machine can freely enter and exit building passenger lifts.

Flexible operation in narrow spaces with 30% gradient.

6.5m working height

Low cost of ownership

Universal and modularised parts for easy maintenance.

Integral drawer type tray for easy maintenance.

Intelligent Interconnection

Remote monitoring and rental management system can be provided, easy access to equipment location, working condition information and abnormal warning.

Parameter

Max. working height6.5m
A - Platform Height-Elevated4.5m
B - Platform Height-Stowed0.95m
C - Platform Length1.29m
D - Platform Width0.7m
Platform Extension0.6m
E - Overall Height (Rails Up)2.05m
Overall Height (Rails Down)1.7m
F Overall length1.44m
G - Overall Width1.76m
H - Wheelbase1.05m
I - Ground Clearance (Stowed)0.06m
J - Ground Clearance (Raised)0.017m
Rated load240kg
Extended platform safe workloads100kg
Max.number of workers2
Travelling speed (collection status)4km/h
Travelling speed (lifting condition)0.8km/h
Turning radius - inside0.4m
Turning radius - outside1.6m
Lifting motor24V/1.2KW
Drive motor24V/2x0.45KW
Rise/fall time23s/25s
Max. Climbing Capacity30%(14°)
Max. working angle (lateral/longitudinal)1.5°/3°
containmentproportional control
drive (vehicle wheel)dual rear wheels
Multi-disc brakedual rear wheels
tyres∅230mmx80mm
accumulators2x12V/85Ah
battery level/
Charger (optional)24V/15A
Weight895kg
