Work Height：7.8 m
Platform Extension：0.91 m
Overall Height (Rails Down)：1.79 m
Platform Capacity：230 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

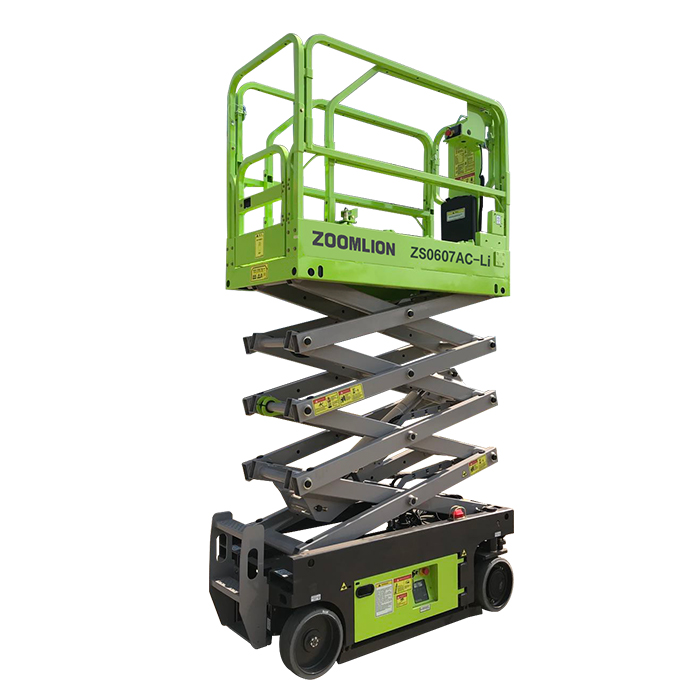

ZOOMLION ZS0607AC-Li Scissor Lift
ZS0607AC-Li scissor-type aerial working platform runs efficiently, adopts lithium battery power system, long battery life, 30% longer range, and can adapt to -20℃ severe cold environment operation.
High operating efficiency
Equipped with AC system, the whole machine is more efficient;
The protection level of AC motor reaches IP67, with longer life;
Adopting lithium battery power system, long battery life, 30% longer range, and can adapt to -20℃ cold environment operation.
Low cost of ownership
Lubrication-free and maintenance-free joint parts;
Adoption of AC motor, maintenance-free for the whole life cycle;
Integral screw-out tray, convenient for maintenance.
Intelligent Interconnection
Lithium battery management system (BMS) + machine control system double protection, to ensure battery safety;
Parameter
| Max. working height | 7.8m |
| A - Platform Height-Elevated | 5.8m |
| B - Platform Height-Stowed | 1.05m |
| C - Platform Length | 1.65m |
| D - Platform Width | 0.74m |
| Platform Extension | 0.91m |
| E - Overall Height (Rails Up) | 2.2m |
| Overall Height (Rails Down) | 1.79m |
| F Overall length | 1.85m |
| G - Overall Width | 0.76m |
| H - Wheelbase | 1.37m |
| I - Ground Clearance (Stowed) | 0.06m |
| J - Ground Clearance (Raised) | 0.016m |
| Rated load | 230kg |
| Extended platform safe workloads | 113kg |
| Max.number of workers | 2 |
| Travelling speed (collection status) | 4km/h |
| Travelling speed (lifting condition) | 0.8km/h |
| Turning radius - inside | 0.1m |
| Turning radius - outside | 1.6m |
| Lifting motor | 24V/3.3KW |
| Drive motor | 24V/2×0.65KW |
| Rise/fall time | 20s/24s |
| Max. Climbing Capacity | 25%(14°) |
| Max. working angle (lateral/longitudinal) | 1.5°/3° |
| containment | proportional control |
| drive (vehicle wheel) | dual front wheels |
| Multi-disc brake | dual front wheels |
| tyres | ф323mm×100mm |
| accumulators | 160Ah Li |
| battery level | 24V/30A |
| Charger (optional) | / |
| Weight | 1455kg |
