View larger image
Work Height：8.80 m
Platform Extension：0.91 m
Overall Height (Rails Down)：1.77 m
Platform Capacity：250 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

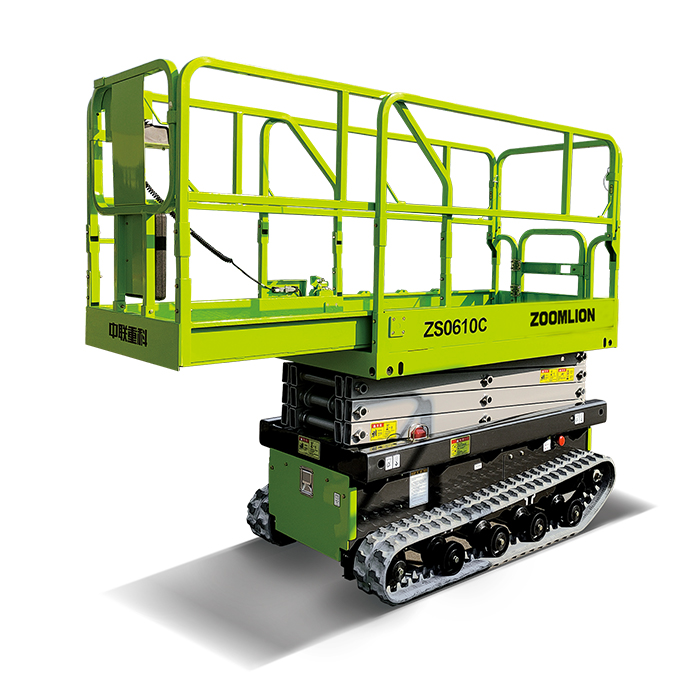

ZOOMLION ZS0610C Scissor Lift
ZS0610C self-propelled scissor-type aerial work platform runs efficiently, adopts rubber tracks, small grounding pressure, superior obstacle-crossing performance, low cost of ownership, lubrication-free and maintenance-free joints, and the remote monitoring and leasing system, which makes it easy to obtain information about the equipment and carry out effective operation and management.
High efficiency
Permanent magnet synchronous motor drive, high efficiency
Adopting rubber tracks, with small ground pressure, superior obstacle-crossing performance.
Good manoeuvrability with in-situ steering
Single handle control for steering and travelling, simpler operation.
Low cost of ownership
No lubrication and maintenance of joint parts
Adopting AC motor, maintenance-free for the whole life cycle
Intelligent Interconnection
Remote monitoring and leasing system, easy access to equipment information, effective operation and management.
Parameter
| Max. working height | 8.80m |
| A - Platform Height-Elevated | 6.8m |
| B - Platform Height-Stowed | 1.12m |
| C - Platform Length | 1.94m |
| D - Platform Width | 0.95m |
| Platform Extension | 0.91m |
| E - Overall Height (Rails Up) | 2.26m |
| Overall Height (Rails Down) | 1.77m |
| F Overall length | 2.1m |
| G - Overall Width | 1.05m |
| H - Wheelbase | 0.127m |
| I - Ground Clearance (Stowed) | / |
| J - Ground Clearance (Raised) | / |
| Rated load | 250kg |
| Extended platform safe workloads | 113kg |
| Max.number of workers | 2 |
| Travelling speed (collection status) | 2km/h |
| Travelling speed (lifting condition) | / |
| Turning radius - inside | / |
| Turning radius - outside | / |
| Lifting motor | / |
| Drive motor | 24V/2×1.8KW |
| Rise/fall time | 34s/30s |
| Max. Climbing Capacity | 30%(17°) |
| Max. working angle (lateral/longitudinal) | 2°/2° |
| containment | / |
| drive (vehicle wheel) | dual rear wheels |
| Multi-disc brake | dual rear wheels |
| tyres | / |
| accumulators | 4×12V/300Ah |
| battery level | / |
| Charger (optional) | 24V/30A |
| Weight | 2090kg |
