Work Height:10.00 m
Platform Extension:0.91 m
Overall Height (Rails Down):1.9 m
Platform Capacity:230 kg
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

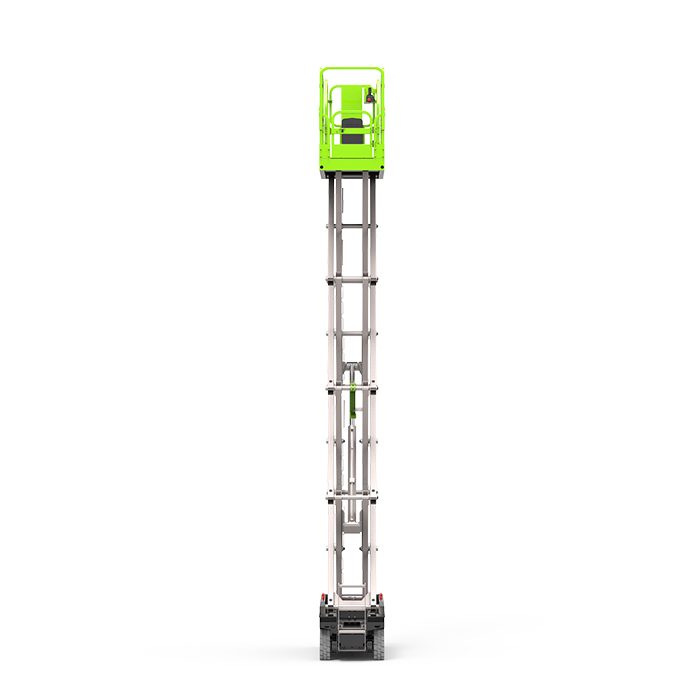

ZOOMLION ZS0808HD-Li Scissor Lift
This series of products is driven by hydraulic motors, equipped with exclusive lithium-ion batteries, compared with the traditional lead-acid batteries, the whole life cycle maintenance-free, range enhancement of 30%, life expectancy increased by 3 times, the commitment of 5-year warranty and 100% recyclable; in the alpine region range is almost unchanged, -20 ℃ under the cold conditions, effective charging and work, to ensure that the equipment is reliable and stable operation, to help leasers to carry out fine management, to achieve cost reductions and efficiency gains.
Intelligent Interconnection
Zoomlion Hi-Tech’s intelligent remote monitoring and rental management platform makes it easy to access the status of equipment (location, working condition information and abnormal warning, etc.) for effective operation management.
Flexible and smooth hydraulic drive
Optimised matching of electrical and hydraulic design, the number of Hud cycles is 20% higher than the counterparts, providing long-lasting endurance.
Precise control greatly improves the smoothness of movement.
Ground clearance is greater than 10% of the industry, providing better durability.
Low Cost of Ownership
Universal and modularised design of parts, easy maintenance.
Integral screw-out trays on both sides, convenient for maintenance service.
Durable, safe and reliable.
Parameter
Max. working height | 10.00m |
A - Platform Height-Elevated | 8.00m |
B - Platform Height-Stowed | 1.26m |
C - Platform Length | 2.3m |
D - Platform Width | 0.81m |
Platform Extension | 0.91m |
E - Overall Height (Rails Up) | 2.4m |
Overall Height (Rails Down) | 1.9m |
F Overall length | 2.49m |
G - Overall Width | 0.81m |
H - Wheelbase | 1.85m |
I - Ground Clearance (Stowed) | 0.11m |
J - Ground Clearance (Raised) | 0.02m |
Rated load | 230kg |
Extended platform safe workloads | 113kg |
Max.number of workers | 2 |
Travelling speed (collection status) | 3.5km/h |
Travelling speed (lifting condition) | 0.8km/h |
Turning radius - inside | 0.1m |
Turning radius - outside | 2.1m |
Lifting motor | 24V |
Drive motor | 3.3KW |
Rise/fall time | 31s/40s |
Max. Climbing Capacity | 25%(14°) |
Max. working angle (lateral/longitudinal) | 1.5°/3° |
containment | proportional control |
drive (vehicle wheel) | dual front wheels |
Multi-disc brake | dual rear wheels |
tyres | ф381mm×127mm |
accumulators | 160Ah Li |
battery level | 24V/30A |
Charger (optional) | 24V/60A |
Weight | 2060kg |
