View larger image
Work Height：10.00 m
Platform Extension：0.91 m
Overall Height (Rails Down)：2.49 m
Platform Capacity：450 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

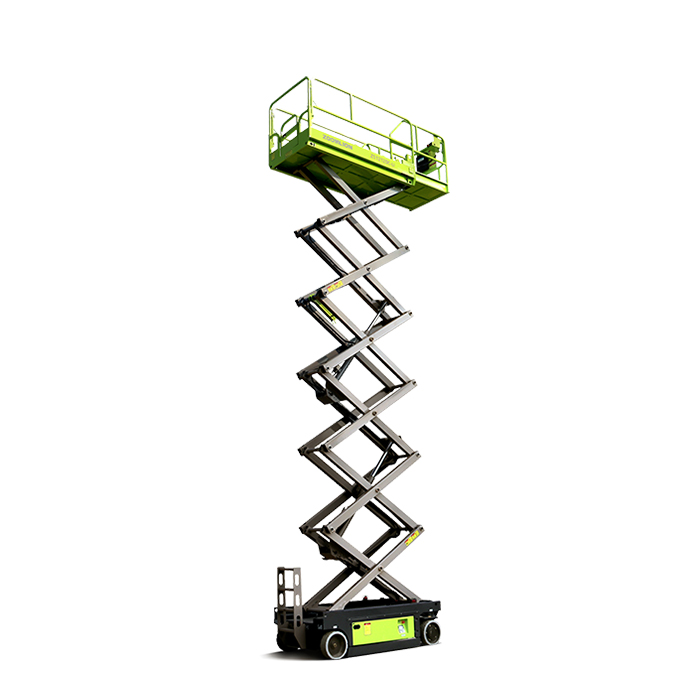

ZOOMLION ZS0812DC-Li Scissor Lift
ZS0812DC-Li scissor-type aerial working platform lithium battery has a five-year warranty, the life span is three times that of lead-acid batteries, and the whole life cycle is free of maintenance, and the low-temperature heating function adapts to the -20°C severe cold environment.
Lithium battery with five-year warranty, life expectancy is three times that of lead-acid batteries, full life cycle maintenance-free
Low-temperature heating function, adapting to -20°C cold environment.
Dual protection of lithium battery management system (BMS) + machine control system to ensure battery safety.
Fast charging technology and high power charger, charging time reduced by 50%.
Intelligent Interconnection
Parameter
| Max. working height | 10.00m |
| A - Platform Height-Elevated | 8.00m |
| B - Platform Height-Stowed | 1.26m |
| C - Platform Length | 2.3m |
| D - Platform Width | 1.12m |
| Platform Extension | 0.91m |
| E - Overall Height (Rails Up) | 2.4m |
| Overall Height (Rails Down) | 1.87m |
| F Overall length | 2.49m |
| G - Overall Width | 1.15m |
| H - Wheelbase | 1.85m |
| I - Ground Clearance (Stowed) | 0.11m |
| J - Ground Clearance (Raised) | 0.02m |
| Rated load | 450kg |
| Extended platform safe workloads | 113kg |
| Max.number of workers | 2 |
| Travelling speed (collection status) | 4km/h |
| Travelling speed (lifting condition) | 0.8km/h |
| Turning radius - inside | 0.1m |
| Turning radius - outside | 2.2m |
| Lifting motor | 24V/4.5KW |
| Drive motor | 24V/2×0.75KW |
| Rise/fall time | 31/40s |
| Max. Climbing Capacity | 25%(14°) |
| Max. working angle (lateral/longitudinal) | 2°/3° |
| containment | proportional control |
| drive (vehicle wheel) | dual front wheels |
| Multi-disc brake | dual front wheels |
| tyres | ф381mm×127mm |
| accumulators | 230Ah Li |
| battery level | 24V/30A |
| Charger (optional) | 24V/60A |
| Weight | 2550kg |
