View larger image
Work Height：13.8 m
Platform Extension：0.91 m
Overall Height (Rails Down)：2.13 m
Platform Capacity：350 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

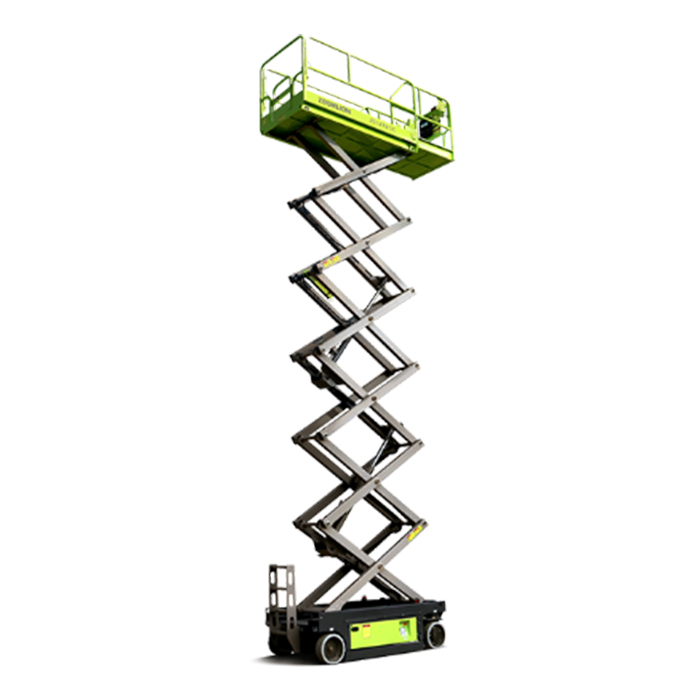

ZOOMLION ZS1212DC Scissor Lift
Zoomlion High-machine Intelligent Remote Monitoring and Rental Management Platform, easy access to equipment status (location, working condition information and abnormality warning, etc.), effective management and cost control.
Intelligent Interconnection
Zoomlion High-machine Intelligent Remote Monitoring and Rental Management Platform, easy access to equipment status (location, working condition information and abnormal warning, etc.), effective management and cost control.
High efficiency of electric drive
The efficiency of motor-driven travelling is 1 times higher than that of hydraulic-driven travelling.
Large platform load, adapt to the harsh working environment.
Front wheel drive with multi-disc brakes, flexible and manoeuvrable.
Low Cost of Ownership
Generalised and modularised design of parts, easy maintenance.
Integral screw-out trays on both sides, convenient for overhauling service.
Durable, safe and reliable.
Parameter
| Max. working height | 13.8m |
| A - Platform Height-Elevated | 11.8m |
| B - Platform Height-Stowed | 1.52m |
| C - Platform Length | 2.30m |
| D - Platform Width | 1.12m |
| Platform Extension | 0.91m |
| E - Overall Height (Rails Up) | 2.66m |
| Overall Height (Rails Down) | 2.13m |
| F Overall length | 2.49m |
| G - Overall Width | 1.15m |
| H - Wheelbase | 1.85m |
| I - Ground Clearance (Stowed) | 0.11m |
| J - Ground Clearance (Raised) | 0.02m |
| Rated load | 350kg |
| Extended platform safe workloads | 113kg |
| Max.number of workers | 3 |
| Travelling speed (collection status) | 4km/h |
| Travelling speed (lifting condition) | 0.8km/h |
| Turning radius - inside | 0.1m |
| Turning radius - outside | 2.2m |
| Lifting motor | 24V/4.5KW |
| Drive motor | 24V/2x0.75KW |
| Rise/fall time | 62/42s |
| Max. Climbing Capacity | 25%(14°) |
| Max. working angle (lateral/longitudinal) | 1.5°/3° |
| containment | proportional control |
| drive (vehicle wheel) | dual front wheels |
| Multi-disc brake | dual front wheels |
| tyres | ∅381mmx127mm |
| accumulators | 4x12V/300Ah |
| battery level | / |
| Charger (optional) | 24V/30A |
| Weight | 3000kg |
