View larger image
Max. Working Height：17.5 m
Max. Platform Height：15.5 m
Max. Working Range：12.6 m
Platform Capacity：300 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

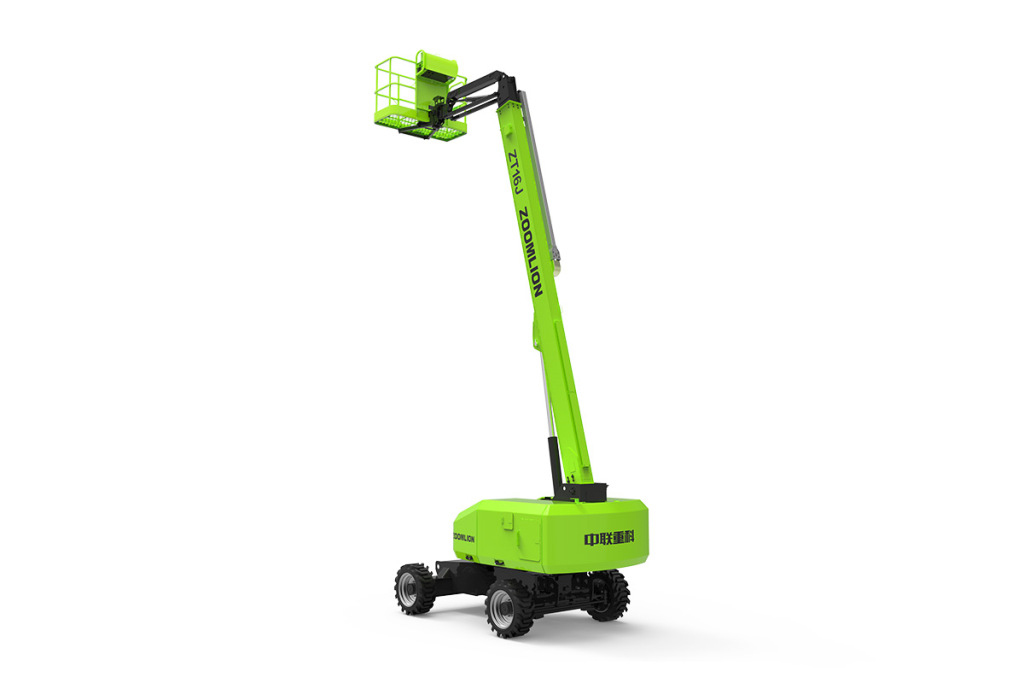

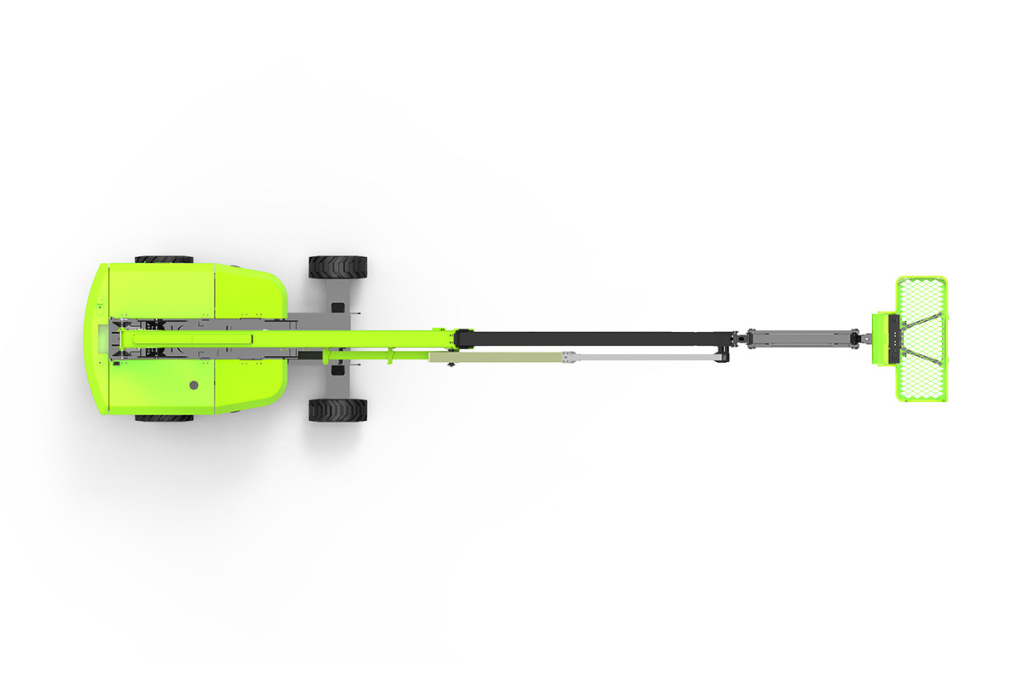

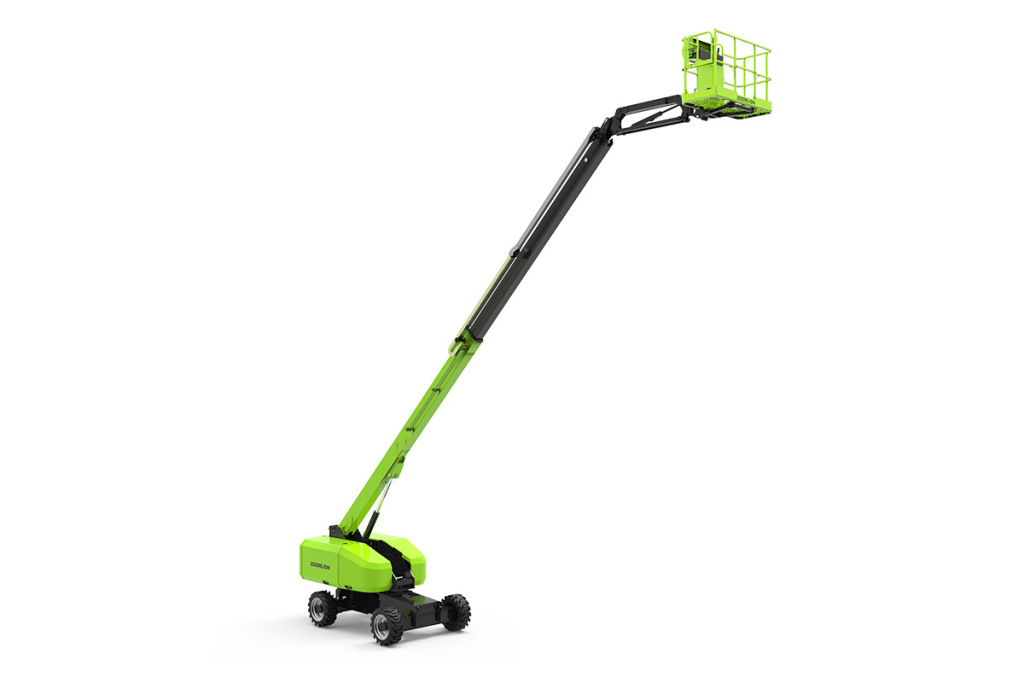

ZOOMLION ZT16J Telescopic Boom Lift
The working area of ZT16J self-propelled straight-arm aerial work platform is 10% larger than that of competitors, and Zoomlion Hi-Tech’s intelligent remote monitoring and rental management platform quickly completes equipment positioning, troubleshooting, and operation management.
The operating area is 10% larger than that of competitors
Zoomlion’s intelligent remote monitoring and rental management platform can quickly complete equipment positioning, fault diagnosis and operation management.
Efficient human-machine interface and self-diagnostic fault system.
Smooth boom expansion and contraction control technology, the lowest stable speed can be controlled at 0.015m/s.
Economical cost and flexible working
Parameter
| Max.Working height | 17.5m |
| Max.Platform height | 15.5m |
| Max.Working range ability | 12.6m |
| A Storage length | 10.3m |
| B Storage length | 2.45m |
| C Storage length | 2.3m |
| D Length of platform | 1.83m |
| E Working platform width | 0.76m |
| F Wheel base | 2.52m |
| Wheel track | 2.48m |
| G Minimum gap | 0.31m |
| Load Capacity | 300kg |
| Travel speed (Collection status) | 5.9km/h |
| Max.Gradeability | 40%(22°） |
| Inside turning radius | 2.4m |
| Outside turning radius | 5.4m |
| Turntable rotation angle | 360° |
| Platform swing angle | ±90° |
| Tail swing | 0.75m |
| Flying arm swing angle | 135°（-60°~75°） |
| Max.working wind speed | 12.5m/s |
| Engine Model | Kubota V2403 |
| Fuel tank capacity | 150L |
| Control Voltage | 12V DC |
| Hydraulic oil tank capacity | 150L |
| Tire model | 33×12-20/8.0 |
| Total weight | 8650kg |
Request a Quote
