Max. Working Height：24.4 m
Max. Platform Height：22.4 m
Max. Working Range：17.9 m
Platform Capacity：300 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

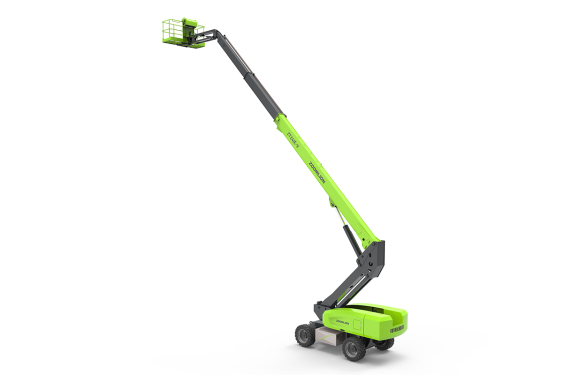

ZOOMLION ZT24JE-V Telescopic Boom Lift
ZT24JE-V electric straight-arm aerial work platform lithium power, green, environmental protection, zero emission, 45% climbing capacity, high torque travelling AC drive, with precise and efficient on-board action AC drive system, strong power, smooth control, maintenance-free electric drive system.
Lithium-ion power, green, environmental protection, zero emission.
45% climbing capacity, high torque travelling AC drive, with precise and efficient on-board action AC drive system, strong power, smooth control, maintenance-free electric drive system.
Large-capacity lithium battery with low-temperature charging current control system and power adaptive technology, stronger endurance, longer battery life, the battery provides five-year long warranty.
Standard with a variety of charging plugs, 10A/16A/32A multi-power selectable charging mode, charging adaptability.
The new shape of lightweight GFRP composite material hood, painted in one piece, anti-corrosion, heat preservation, ageing resistance, easy to clean.
Assembled large-opening component box, open and close machine cover, reserved a variety of access holes, maintenance is more convenient.
Parameter
| Max.Working height | 24.4m |
| Max.Platform height | 22.4m |
| Max.Working range ability | 17.9m |
| A Storage length | 10.3m |
| B Storage length | 2.49m |
| C Storage length | 2.76m |
| D Length of platform | 2.44m |
| E Working platform width | 0.91m |
| F Wheel base | 2.52m |
| Wheel track | 2.49m |
| G Minimum gap | 0.41m |
| Load Capacity | 300/454kg |
| Travel speed (Collection status) | 5.5km/h |
| Max.Gradeability | 45%(24°） |
| Inside turning radius | 2.72m |
| Outside turning radius | 5.58m |
| Turntable rotation angle | 360° |
| Platform swing angle | ±90° |
| Tail swing | 1.61m |
| Arm swing angle | 130（-55°~75°） |
| Max.working wind speed | 12.5m/s |
| Battery | 5KE/80V |
| Charger | 4.2kW |
| Drive/pump motor | 21kW |
| auxiliary power | 12V DC |
| hydraulic fluid chamber | 120L |
| Tire model | 355/55-24.5 |
| Total weight | 13200kg |
