ZOOMLION ZT28JE-V Telescopic Boom Lift
VS


Max. Working Height:28.7 m

Max. Platform Height:26.7 m

Max. Working Range:22.1 m

Platform Capacity:300 kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

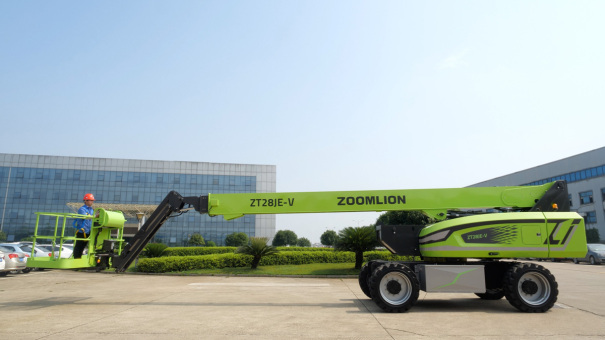

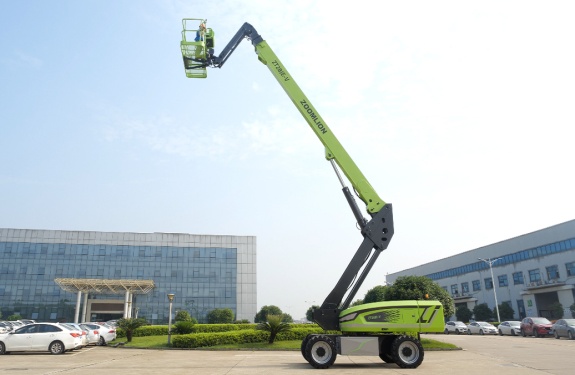

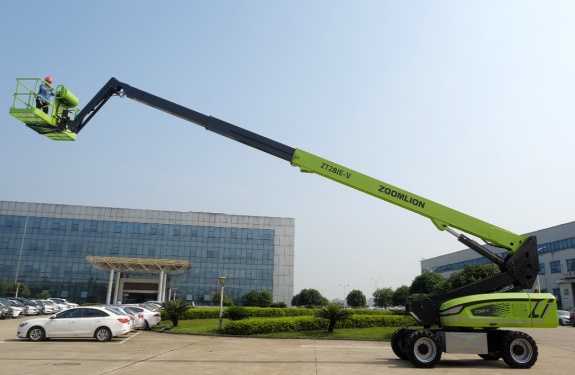

ZOOMLION ZT28JE-V Telescopic Boom Lift


ZT28JE-V electric straight-arm aerial working platform products, working height 28.7m, working range 22.1m, with green environmental protection, large operating range, high reliability, precise and efficient control and other characteristics.



Lithium-ion power, green, environmental protection, zero emission.

45% climbing capacity, high torque travelling AC drive, with precise and efficient on-board action AC drive system, strong power, smooth control, maintenance-free electric drive system.

Large-capacity lithium battery with low-temperature charging current control system and power self-adaptive technology, stronger endurance, longer battery life, the battery provides five-year long warranty; ● Standard with a variety of charging plugs.

Standard with a variety of charging plugs, 10A/16A/32A multi-power selectable charging mode, charging adaptability; ● New shape lightweight GLB battery.

New shape lightweight GFRP composite material hood, painted in one piece, anti-corrosion, heat preservation, aging resistance, easy to clean; ● assembled large-opening component box.

Assembled large-opening component box, open and close hood, reserved a variety of access holes, maintenance is more convenient.

Parameter

Max.Working height28.7m
Max.Platform height26.7m
Max.Working range ability22.1m
A Storage length11.91m
B Storage length2.49m
C Storage length2.82m
D Length of platform2.44m
E Working platform width0.91m
F Wheel base2.8m
Wheel track2.49m
G Minimum gap0.41m
Load Capacity300/454kg
Travel speed (Collection status)5.5km/h
Max.Gradeability45%(24°)
Inside turning radius3.11m
Outside turning radius6.16m
Turntable rotation angle360°
Platform swing angle±90°
Tail swing1.61m
Arm swing angle130(-55°-75°)
Max.working wind speed12.5m/s
Battery6KE/80V
Charger5.2kW
Drive/pump motor30kW
auxiliary power12V DC
hydraulic fluid chamber120L
Tire model355/55-24.5
Total weight17600kg
