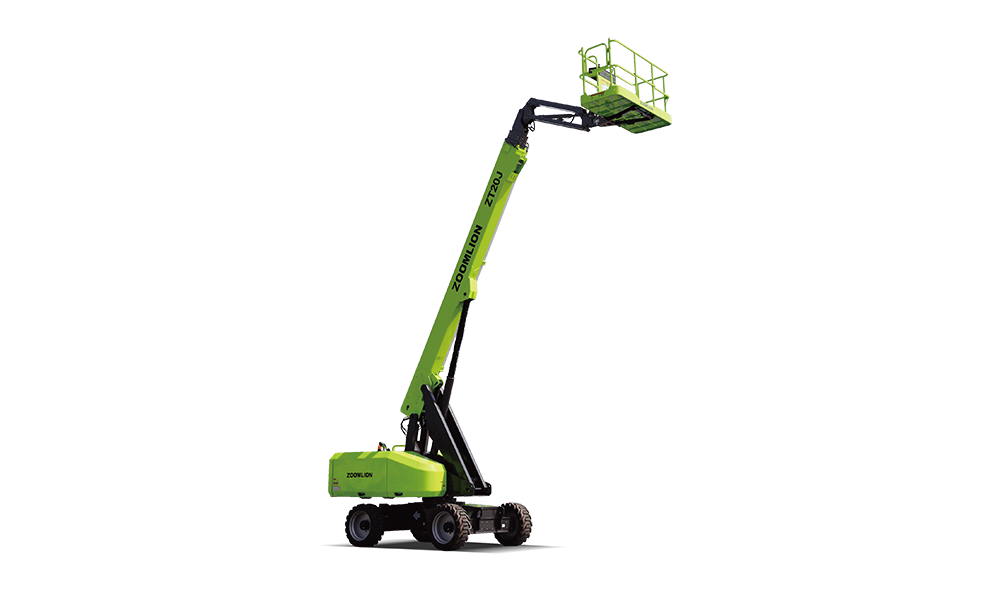

ZOOMLION ZT30J Telescopic Boom Lift
VS


Max. Working Height:32.48 m

Max. Platform Height:30.48 m

Max. Working Range:19.78 m

Platform Capacity:230 kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

ZOOMLION ZT30J Telescopic Boom Lift


ZT30J straight-arm aerial work platform adopts modern design means such as modularisation, lightweighting, generalisation and intelligence, and is characterised by high load capacity and high reliability, etc. The four-wheel drive and oscillating wheel axle system substantially improves the cross-country performance, and the climbing capacity is as high as 45%, which is adaptable to all kinds of harsh working conditions. The boom system is free of lubrication for life, which minimises the cost of holding the equipment. The outward-swinging engine tray design makes regular maintenance more convenient and quicker. 2.44×0.91m large work bucket provides a spacious and comfortable working space. Flying arm is equipped as standard, which makes the boom more flexible and the working range more extensive.



Off-road chassis with oscillating axle function, easily achieving 45% climbing capacity

30 metre class products without the need to expand the bridge

Highly efficient and smooth synchronised telescopic boom, more than 30% higher efficiency than double-cylinder telescopic boom.

Smooth boom telescopic control technology, the lowest stable speed can be controlled at 0.015m/s.

Zoomlion’s intelligent remote monitoring and rental management platform, which can quickly complete equipment positioning, fault diagnosis and operation management.

Economical cost and flexible work

Parameter

Max.Working height32.48m
Max.Platform height30.48m
Max.Working range ability19.78m
A Storage length12.43m
B Storage length2.49m
C Storage length2.80m
D Length of platform2.44m
E Working platform width0.91m
F Wheel base3.05m
Wheel track2.11m
G Minimum gap0.40m
Load Capacity230/340kg
Travel speed (Collection status)5.5km/h
Max.Gradeability45%(24°)
Inside turning radius3.66m
Outside turning radius6.86m
Turntable rotation angle360°
Platform swing angle±90°
Tail swing1.47m
Flying arm swing angle130°(-55°~75°)
Max.working wind speed12.5m/s
Engine ModelWP2.3NG75E308/QSF2.8
Fuel tank capacity150L
Control Voltage12V DC
Hydraulic oil tank capacity150L
Tire model385/65-24
Total weight19100kg
