Max. Working Height：44.08 m
Max. Platform Height：42.08 m
Max. Working Range：25 m
Platform Capacity：300 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

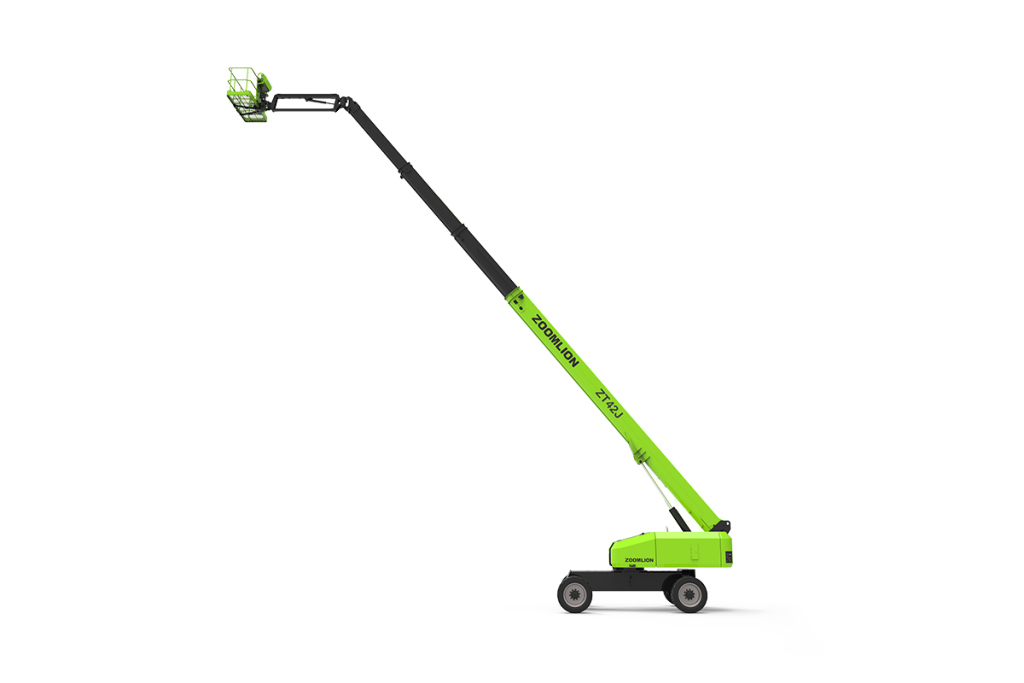

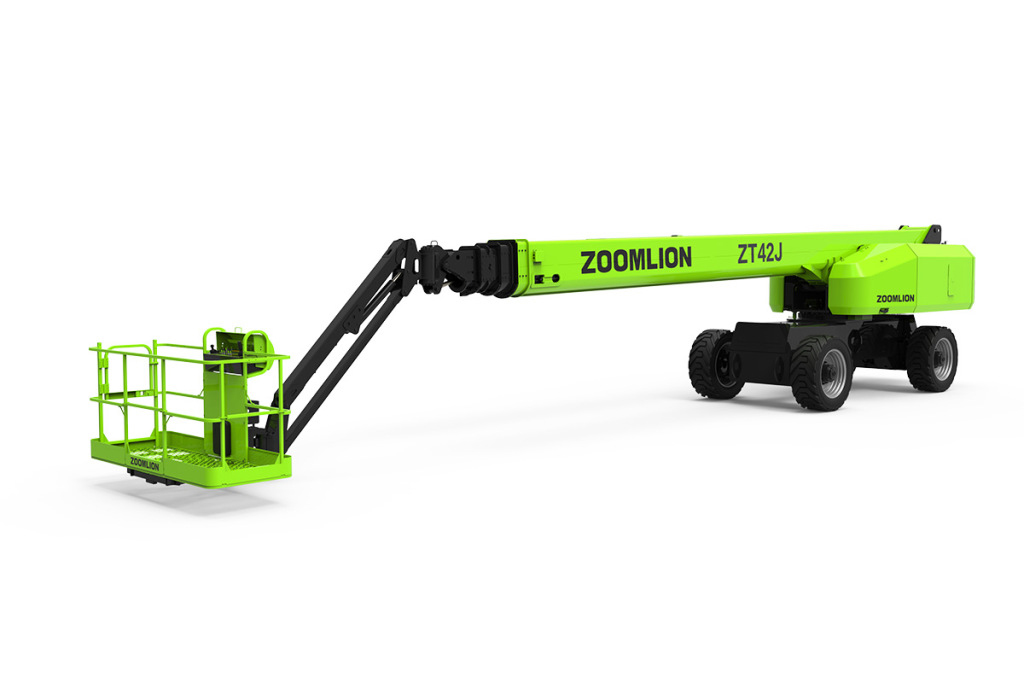

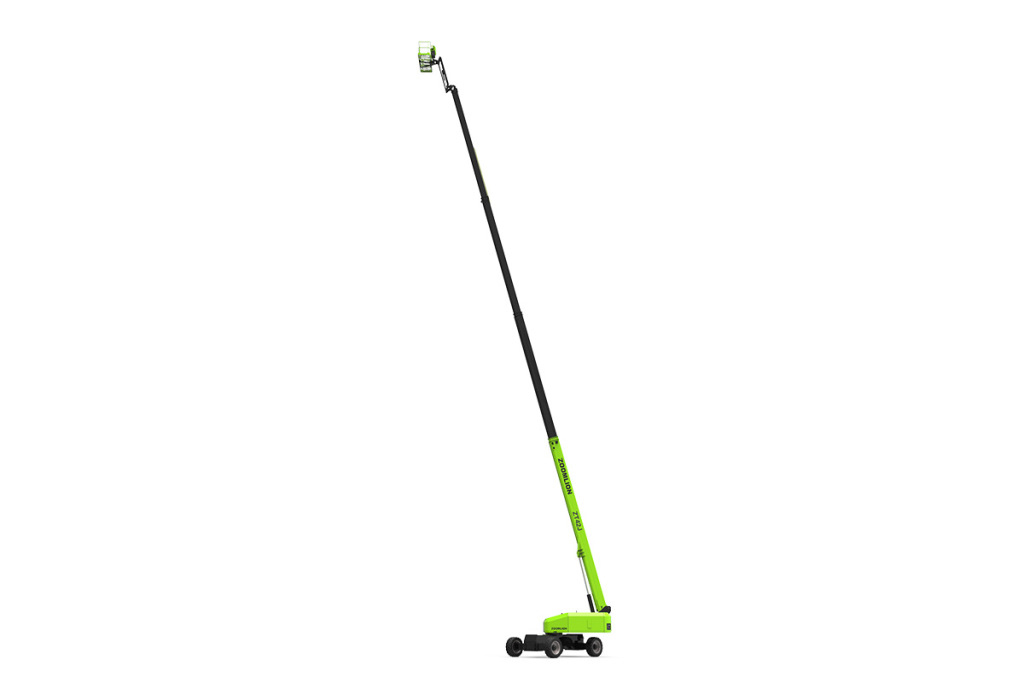

ZOOMLION ZT42J Telescopic Boom Lift
ZT42J self-propelled straight-arm aerial work platform is equipped with off-road chassis with oscillating axle function, which can easily achieve 45% climbing ability, strong site applicability, low telescopic failure rate, and effective prevention of abnormal tyre wear.
Equipped with an off-road chassis with oscillating axle function, it can easily achieve 45% of climbing ability.
Innovative outrigger telescoping method; strong site applicability, low telescoping failure rate, and effective prevention of abnormal tyre wear.
R-type slider and U-type channel steel design at the bottom of the boom, effectively reducing the lateral deflection of the boom.
U-type boom design, effectively reduce the self-weight of the boom and reduce deflection, better stability of the whole machine.
Flying arm swing function, wider operating range and more flexible.
Parameter
| Max.Working height | 44.08m |
| Max.Platform height | 42.08m |
| Max.Working range ability | 25m |
| A Storage length | 13m |
| B Storage length | 2.49m |
| C Storage length | 3m |
| D Length of platform | 2.44m |
| E Working platform width | 0.91m |
| F Wheel base | 3.81m |
| Wheel track | 2.49/3.87m |
| G Minimum gap | 0.41m |
| Load Capacity | 300/454kg |
| Travel speed (Collection status) | 5.2km/h |
| Max.Gradeability | 45%(24°） |
| Inside turning radius | 3.3/7.7m |
| Outside turning radius | 8.2/10.8m |
| Turntable rotation angle | 360° |
| Platform swing angle | ±90° |
| Tail swing | 1.67m |
| Max.working wind speed | 12.5m/s |
| Engine Model | Cummins QSF2.8 |
| Fuel tank capacity | 200L |
| Control Voltage | 12V DC |
| Hydraulic oil tank capacity | 250L |
| Tire model | IN445/50D710 |
| Total weight | 21900kg |
