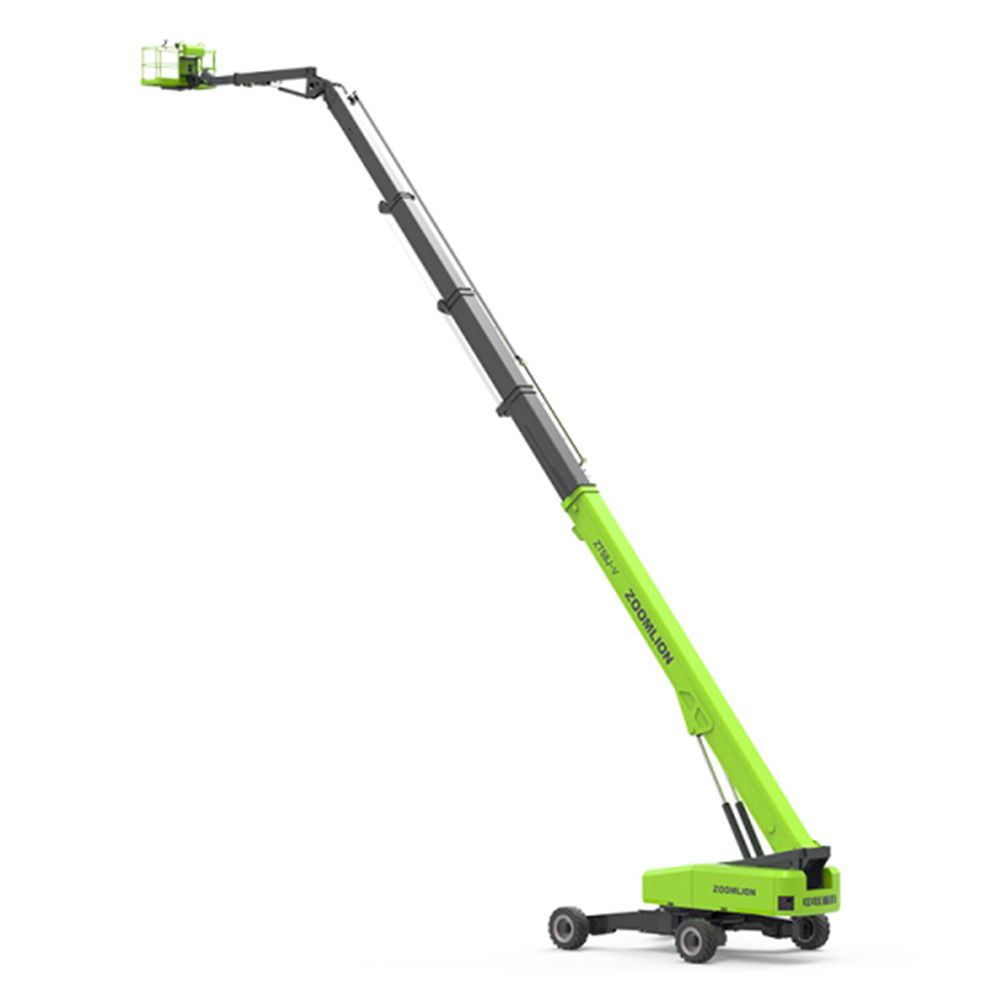

ZOOMLION ZT58J-V Telescopic Boom Lift
VS


Max. Working Height:58.8 m

Max. Platform Height:56.8 m

Max. Working Range:25.5 m

Platform Capacity:300 kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

ZOOMLION ZT58J-V Telescopic Boom Lift


ZT58J-V self-propelled straight-armed aerial working platform with working height up to 58.8m and working range up to 25.5m.



ZT58J-V self-propelled straight-arm aerial work platform, with working height up to 58.8m and working range up to 25.5m;

Polygonal innovative boom, the weight of the boom is reduced by more than 10%, the vertical stiffness is increased by 25%, the torsion resistance is increased by 20%, the deformation is small, and the handling is stable;

The double luffing cylinder arrangement makes the lifting smoother, the rigidity of the boom system is better, and the platform shaking is smaller;

The chassis adopts X-type outriggers, with wider operating range, stronger cross-country capability and better stability;

Four-wheel steering intelligent control, to ensure the coordination and consistency of the outriggers in the process of travelling, steering and extension.

The steering angle of all wheels is automatically matched to ensure straight line travelling;

Synchronous telescoping of five-section boom, efficient and smooth.

Parameter

Max.Working height58.8m
Max.Platform height56.8m
Max.Working range ability25.5m
A Storage length14.4m
B Storage length2.5m
C Storage length3.06m
D Length of platform2.44m
E Working platform width0.91m
F Wheel base5.357/4.69m
Wheel track2.5/5.15m
G Minimum gap0.40m
Load Capacity300/454kg
Travel speed (Collection status)4.5km/h
Max.Gradeability45%(24°)
Inside turning radius6.79/2.57m
Outside turning radius8.43/6.39m
Turntable rotation angle360°
Platform swing angle±90°
Tail swing2.25m
Flying arm swing angle125°(-55°-70°)
Max.working wind speed12.5m/s
Engine ModelCummins QSF3.8
Fuel tank capacity200L
Control Voltage12V DC
Hydraulic oil tank capacity400L
Tire model445/55 25-28
Total weight29600kg
