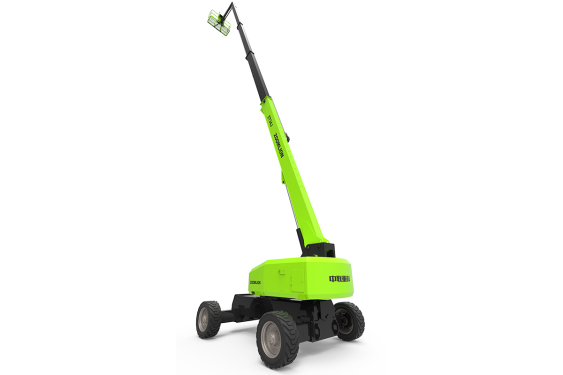

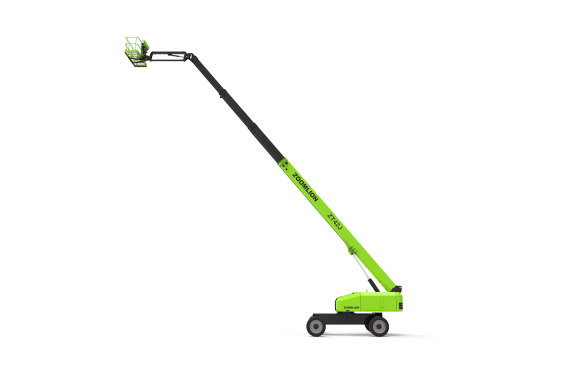

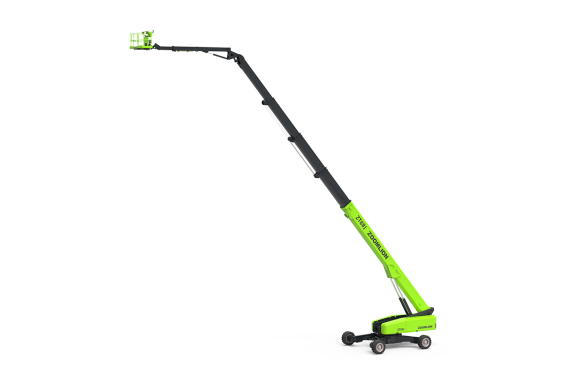

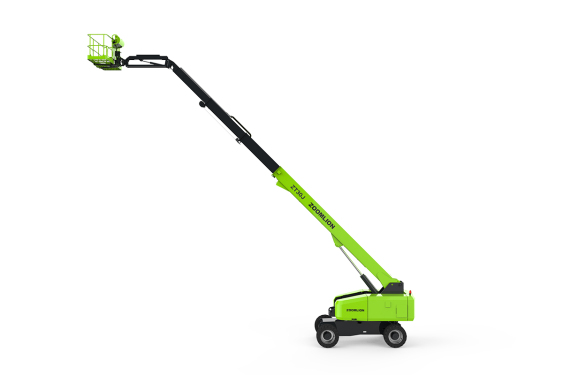

ZOOMLION ZT68J Telescopic Boom Lift
VS


Max. Working Height:67.5 m

Max. Platform Height:65.5 m

Max. Working Range:31 m

Platform Capacity:300 kg


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees

Share To:

Feature

ZOOMLION ZT68J Telescopic Boom Lift


ZT68J self-propelled straight-arm aerial working platform with working height up to 67.5m and working range up to 31m.



Self-propelled straight-arm aerial working platform with working height up to 67.5 metres and working range up to 31 metres;

Polygonal innovative boom, the weight of the boom is reduced by more than 10%, the vertical stiffness is increased by 25%, the torsion resistance is increased by 20%, the deformation is small, and the handling is stable;

Double luffing cylinder arrangement, smoother lifting, better rigidity of the boom system, and less platform shaking;

Intelligent control of four-wheel steering ensures the coordination and consistency of the outriggers in the process of travelling, steering and extension; the steering angle of all wheels is automatically matched to ensure straight-line walking;

The chassis adopts X-type outriggers, with wider operating range, stronger cross-country capability and better stability;

Five-section boom synchronous expansion and contraction, efficient and smooth.

Parameter

Max.Working height67.5m
Max.Platform height65.5m
Max.Working range ability31m
A Storage length15.5m
B Storage length2.5m
C Storage length3.06m
D Length of platform2.44m
E Working platform width0.91m
F Wheel base5.357/4.69m
Wheel track2.5/5.15m
G Minimum gap0.4m
Load Capacity300/454kg
Travel speed (Collection status)4.5km/h
Max.Gradeability40%(22°)
Inside turning radius6.79/2.57m
Outside turning radius8.43/6.39m
Turntable rotation angle360°
Platform swing angle±90°
Tail swing2.15m
Max.working wind speed12.5m/s
Engine ModelCummins QSF3.8
Fuel tank capacity200L
Control Voltage12V DC
Hydraulic oil tank capacity400L
Tire model445/55- 25- 28
Total weight35900kg
