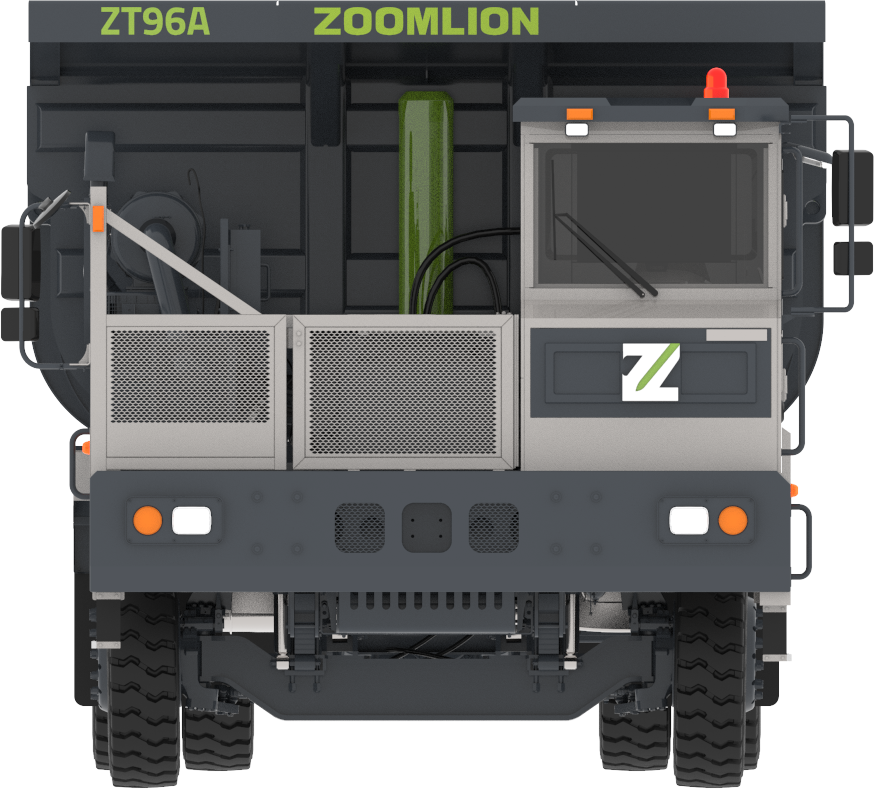

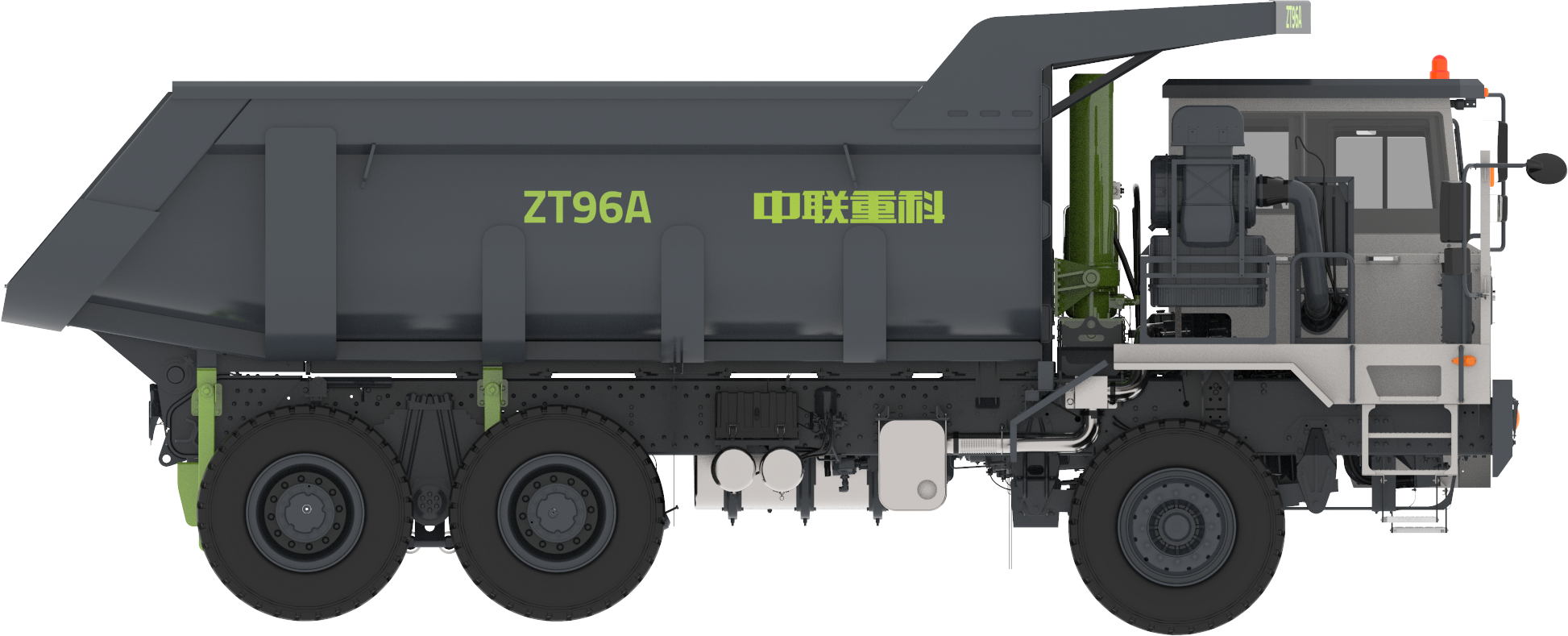

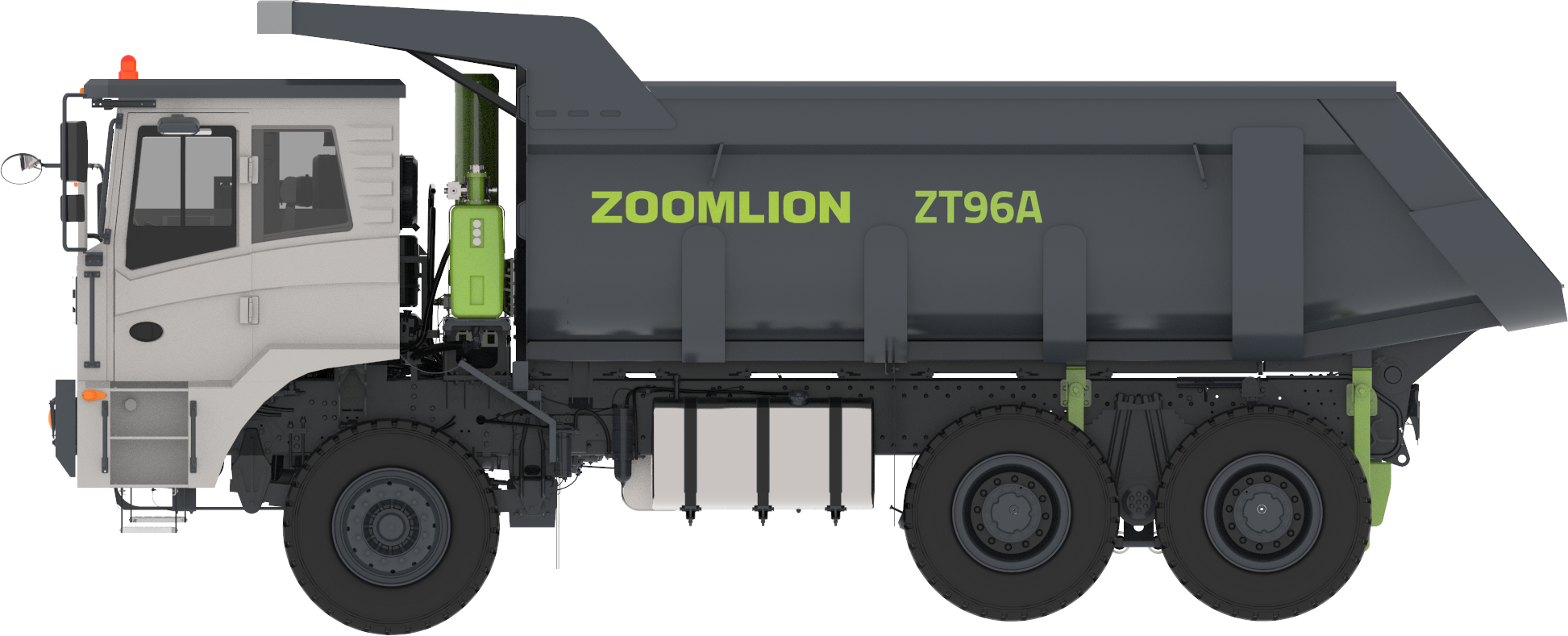

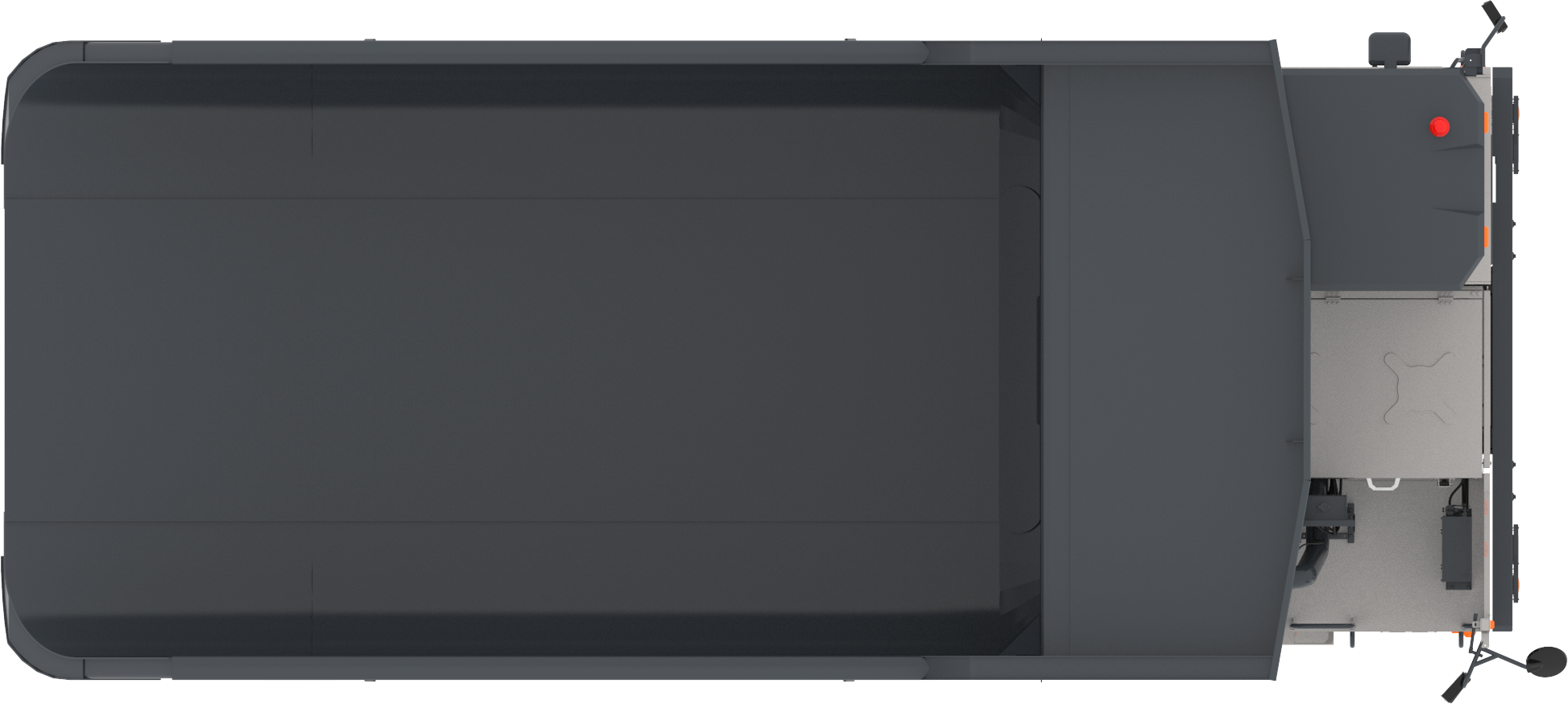

ZOOMLION ZT96A Dump Truck
VS


Kerb/GVW: 30000/60000Kg

Driving type:6×4

Output Power :353kw


Delivery Time:

In Stock (Within 7 days)
Production (Within15 to 30 days)
Customization (negociated delivery time)

Shipping:

Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee


After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.

Share To:

Feature


                                          ZOOMLION ZT96A Dump Truck

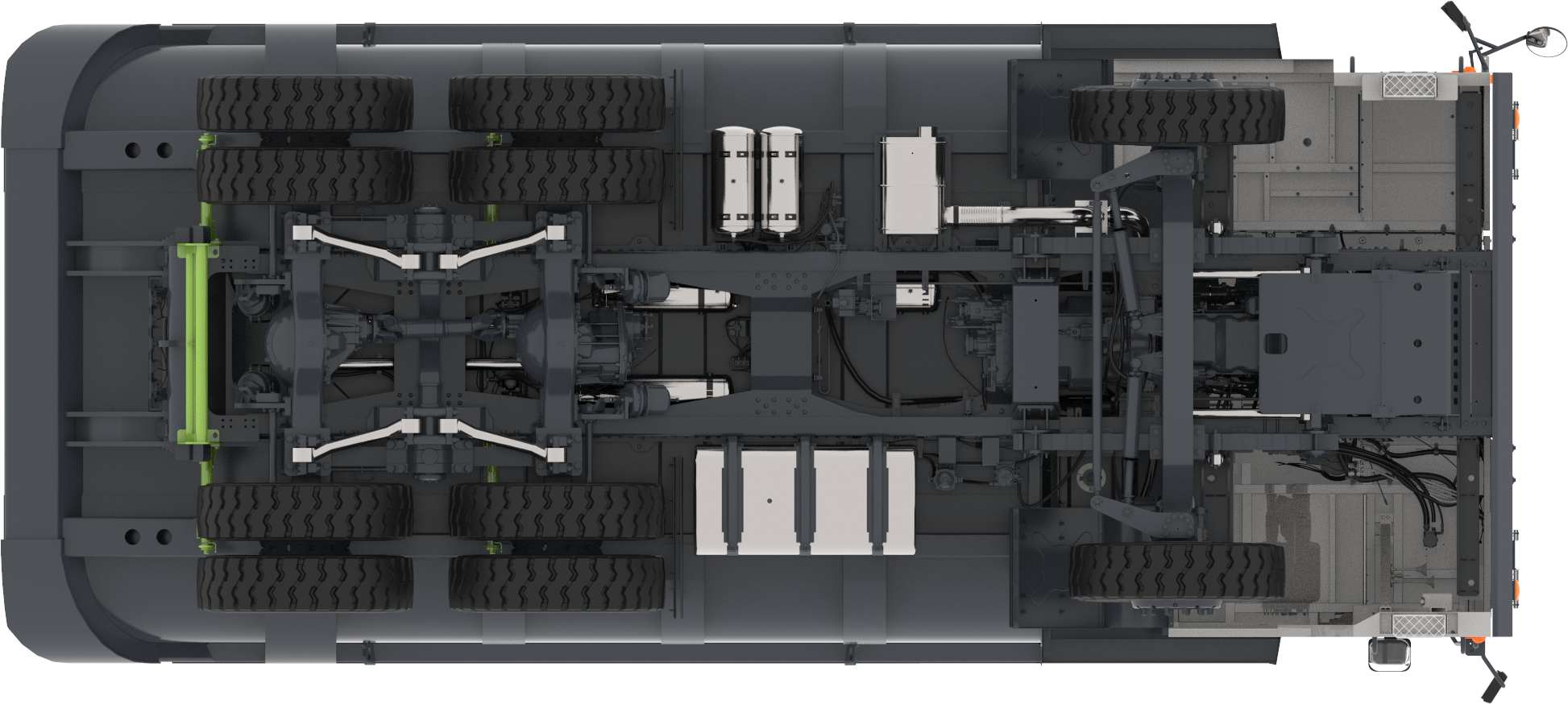

Frame, riveted of longitudinal beams with double-layer (10+10mm) superimposed groove-shaped bending plates and six crossbeams, presents to more excellent performance of forming technology and deformation design adaptation. The use of 610L material bring the frame more reliable.



The front-suspension is the dependent leaf spring suspension, while the middle-suspension and the rear-suspension adopt the leaf spring. That enhances wheel alignment parameter stability, running stability and system reliability.



Advanced engine with output power of 480 Ps, has the performance of high-efficiency and fuel-save. By used of the three-stage oil bath air filter and the three-stage fuel filter, the dynamical system is operated to be more reliable. The usage of the imported air fan makes an excellent thermal equilibrium of machine. The split radiator is used to enhance the performance of the anti-seismic and the convenient maintenance.

Parameter

Drive Type6×4
Kerb Mass30000Kg
GVW60000Kg
Dimension/
Wheelbase/
Cargo size/
Engine ModelYC6K480-GT30
Output Power353kW
Transmission ModelFAST 7DS220
Front Axle Model/
Rear Axle Model/
