View larger image
Max. Working Height：27 m
Max. Platform Height：25 m
Max. Working Range：14.2 m
Platform Capacity：230 kg
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees
Feature

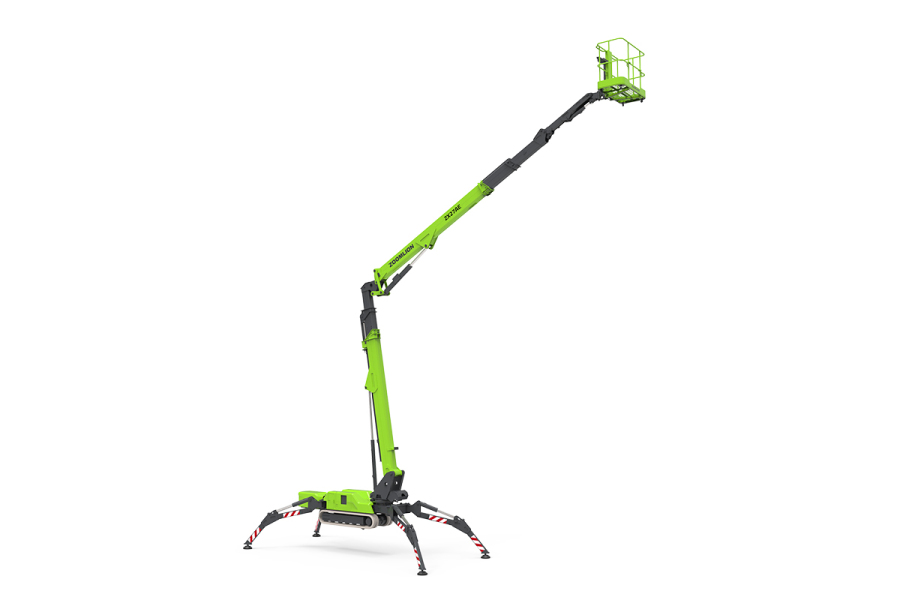

ZOOMLION ZX27AE Articulating Boom Lift
ZX27AE self-propelled spider aerial working platform has 0.89m ultra-narrow body, quick-change working platform, narrow space can also be in and out freely, pure electric walking, green environmental protection, lithium drive, quiet and comfortable.
0.89m ultra-narrow body, quick-change working platform, narrow space can also be in and out freely.
Pure electric travelling, green environmental protection, lithium-ion drive, quiet and comfortable.
Precise and efficient permanent magnet synchronous motor drive system, strong power and smooth control.
Non-marking rubber track travelling, suitable for all terrains, flexible and convenient.
Telescopic tower boom, higher spanning height, better boom stiffness, smoother handling.
Precise proportional hydraulic control system, fast response, smooth control and good micro-motion.
Advanced energy management system, supports synchronous power supply from external power source, providing long-lasting endurance.
Parameter
| Max.Working height | 27m |
| Max.Platform height | 25m |
| Max.Working range ability | 14.2m |
| A Storage length | 6.15m |
| B Storage length | 0.89m |
| C Storage length | 2.05m |
| D Length of platform | 1.4m |
| E Working platform width | 0.7m |
| F Wheel base | 1.52m |
| Wheel track | / |
| G Minimum gap | / |
| Load Capacity | 230kg |
| Travel speed (Collection status) | 2km/h |
| Max.Gradeability | 30% |
| Inside turning radius | / |
| Outside turning radius | / |
| Turntable rotation angle | 400° |
| Platform swing angle | ±90° |
| Tail swing | / |
| Max.working wind speed | 12.5m/s |
| batteries | 315Ah 48V |
| battery level | 48V/60A |
| drive motor | 48V |
| Hydraulic oil tank | 50L |
| Tire model | K250×47×88 |
| Total weight | 4650kg |
