View larger image
Outline dimension：9360×2500×3660 mm
Max. theoretical spraying capacity：30 m³/h
Rated power ：132 /2400kW/rpm
Delivery Time：
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service：1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

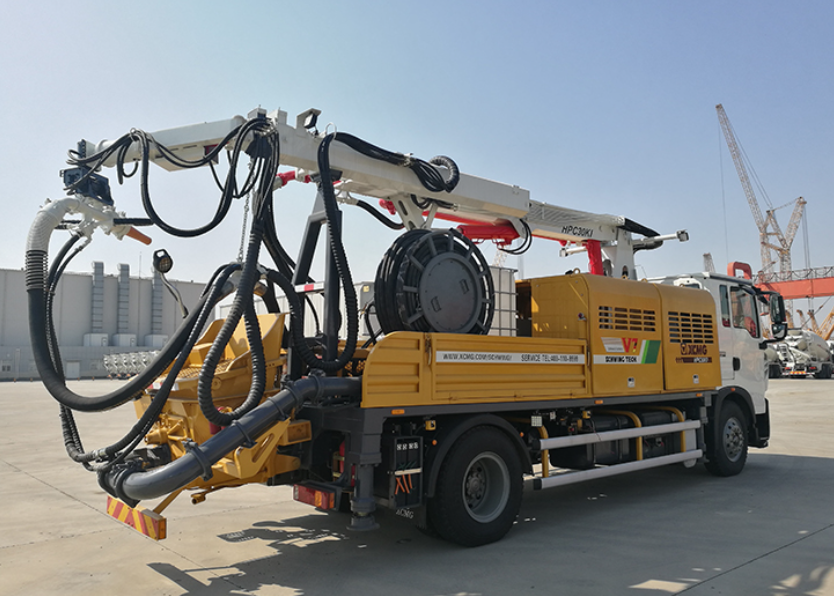

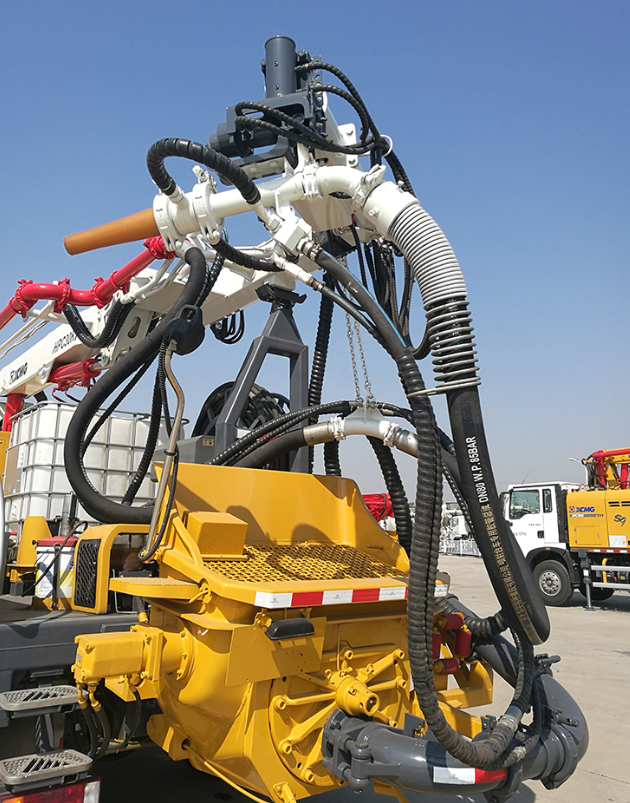

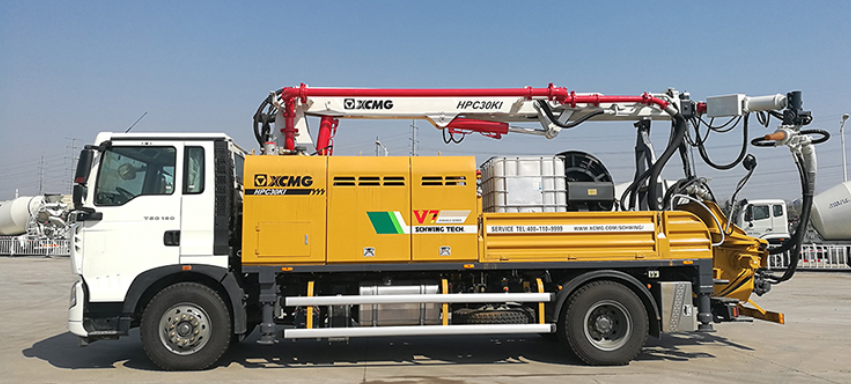

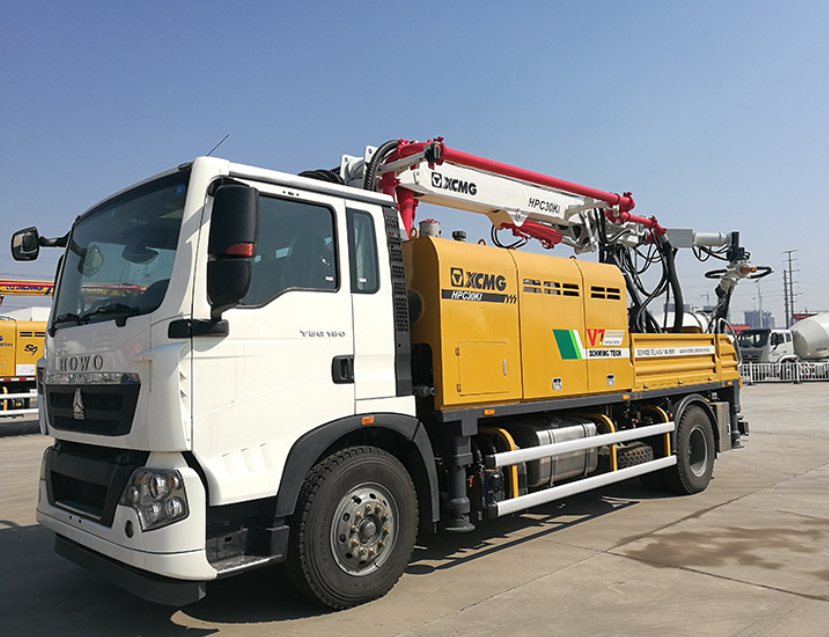

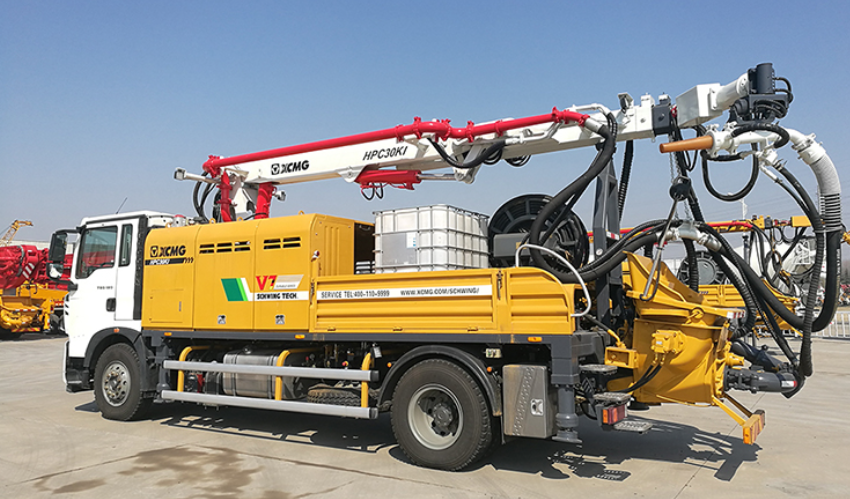

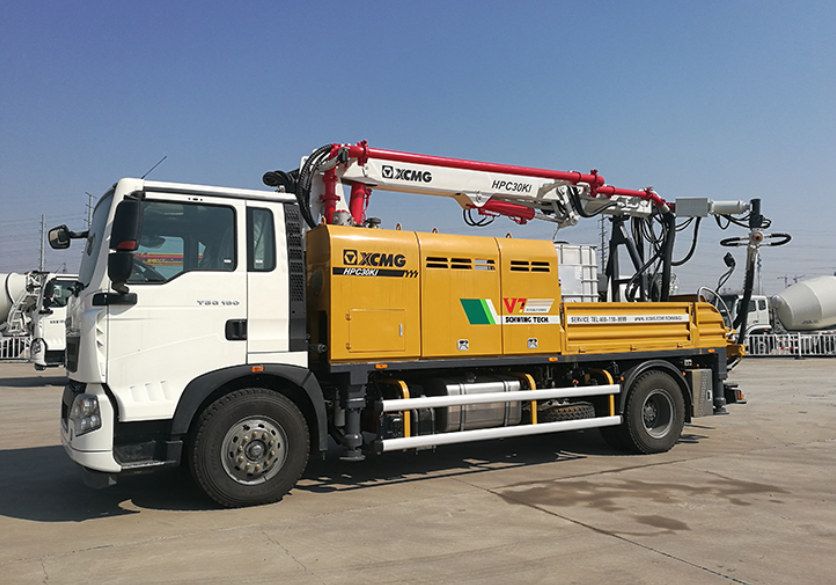

XCMG HPC30KI Truck-mounted Concrete Spraying Machine
XCM-G HPC30KI truck mounted concrete spraying shotcrete machine lengthening two-stage telescoping boom can realize the max. spraying height of 18m, the farthest front spraying distance of 15m and wider spraying range.
Performance and characteristic:
1. Besides the main power by motor, chassis power can realize boom and outrigger telescoping.
2.More practical dual power technology., more efficient skirt valve pumping system
3. Realize more flexible spraying operation without dead angle and meet tunnel construction requirements to the greatest degree.
4. By incorporating Schwing’s fully-hydraulic reversing technology, short reversing time, small spraying impulse, low rebound ratio and good spraying planeness are realized.
5. Quick-open type design can easily realize replacement of delivery pipe, product maintenance and lubricant adding, etc.
Parameter
| Outline Dimension | 9360×2500×3660mm |
| Overall weight | 16000kg |
| Rated power | 132 /2400kW/rpm |
| Gradeability | 30％ |
| Turning radius | 9.5m |
| TheoretiMax. theoretical spraying capacitycal Output | 30m³/h |
| Wind supply capacity | 10.5m³/min |
| Delivery pressure | 0.8MPa |
