Outline dimension:9360×2500×3660 mm
Max. theoretical spraying capacity:30 m³/h
Rated power :132 /2400kW/rpm
Delivery Time:
Shipping:
Contact customer service to negotiate shipping details, Enjoy On-time Dispatch Guarantee
After-sales Service:1. Online service: samples, technical specifications, operation manuals, spare parts purchase. 2. Video service: application guidance, troubleshooting and maintenance guidance. 3. Overseas service: MachPlaza has a complete global after-sales service team. Please note that if there is no clear after-sales liability clause in the sales contract, we will charge the necessary service fees.
Feature

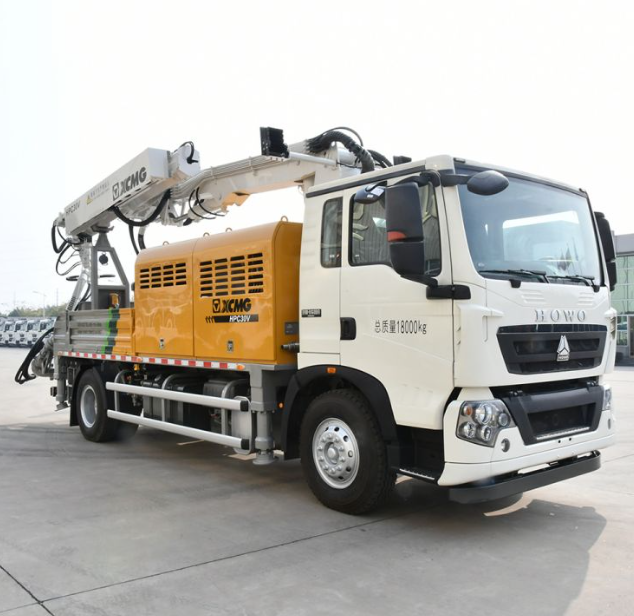

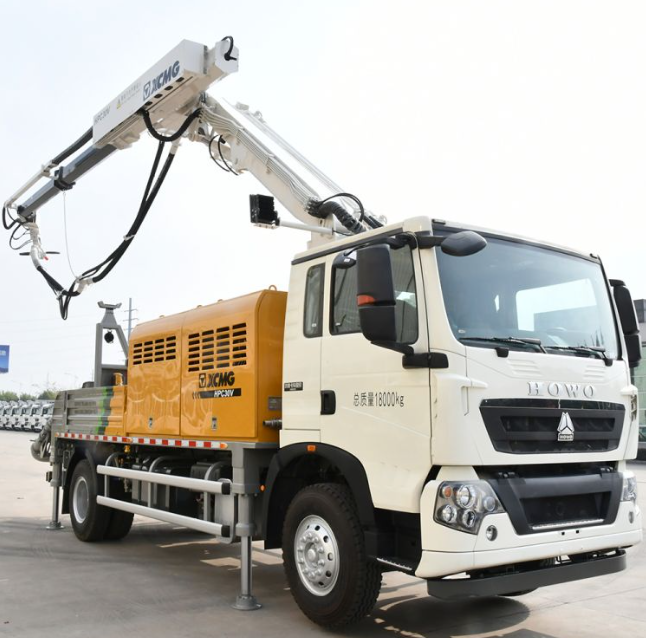

XCMG HPC30V Truck-mounted Concrete Spraying Machine
XCM-G HPC30V Truck mounted concrete spraying shotcrete machine can realize the max. spraying height of 18m, the farthest front spraying distance of 15m and wider spraying range.
Performance and characteristic:
1. Besides the main power by motor, chassis power can realize boom and outrigger telescoping.
2.The simultaneous operation of pumping system and high-pressure water pump ensures more convenient and efficient cleaning of overall machine.
3. Realize more flexible spraying operation without dead angle and meet tunnel construction requirements to the greatest degree.
4. By incorporating Schwing’s fully-hydraulic reversing technology, short reversing time, small spraying impulse, low rebound ratio and good spraying planeness are realized.
5. Quick-open type design can easily realize replacement of delivery pipe, product maintenance and lubricant adding, etc.
Parameter
Outline Dimension | 9360×2500×3660mm |
Overall weight | 18000kg |
Rated power | 132 /2400kW/rpm |
Gradeability | 30% |
Turning radius | 9.5m |
TheoretiMax. theoretical spraying capacitycal Output | 30m³/h |
Wind supply capacity | 10~13m³/min |
Delivery pressure | 0.8MPa |
